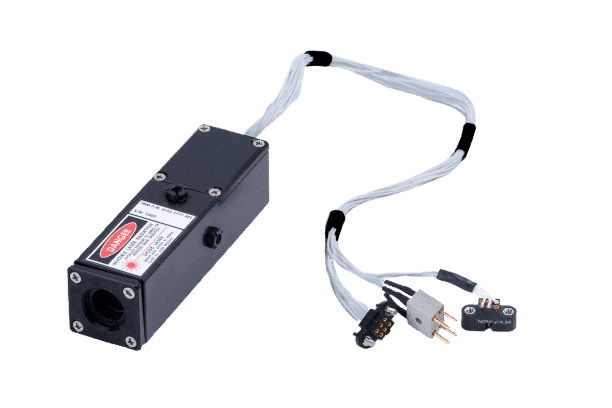

Micro Lapid 200C
The Micro Lapid 200C is a compact NIR (near-infrared) laser pointer that can point out targets at ranges of up to 10 km. With a small and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.
A specialized design is available for small UAV platforms, encapsulating the laser diode in an aluminum housing that can be mounted inside the gimbal system with a boresight mechanism and optics.
Specifications:
| Dimensions (H x L x W): | 25 x 85 x 25 |
| Weight: | 85g |
| Wavelength: | 850 nm |
| Optical Output Power: | 190 mW |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz |
| Boresight: | ±20mRad |
