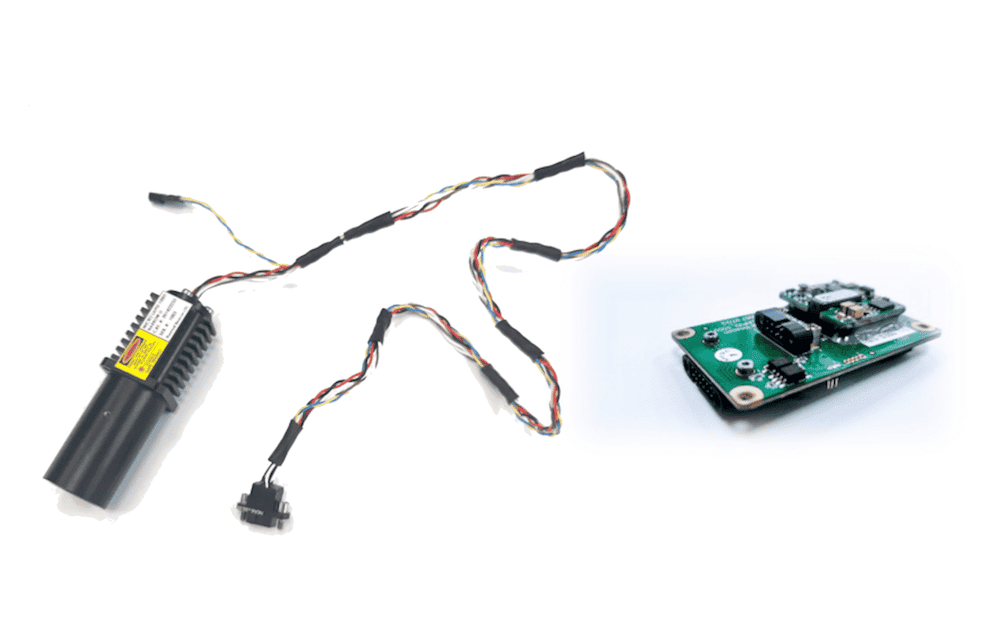

Micro Lapid 1000T
The Micro Lapid 1000T is a 860nm laser that is designed for target pointing and illumination. The rugged unit is tested to MIL-STD-810H standards, and the output beam has been power and bore-stabilized across a wide range of environmental conditions.
With a compact and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.
Specifications:
| Dimensions: |
Optics D x L: 20.5 x 71.3 mm PCB L x W: 65 x 38 mm |
| Weight: |
Laser module: 50g PCB: 27g |
| Power: | 18-36VDC |
| Wavelength: | 860nm |
| Optical Output Power: | Up to 3W |
| Operational Modes: | CW, Flash |
