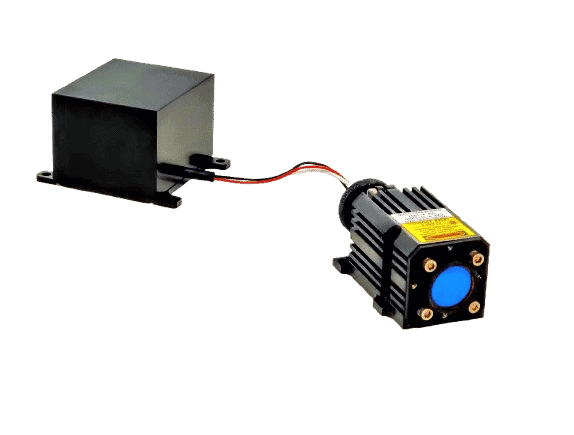

Micro Lapid 1000
sealed anodized aluminum enclosure. With a small and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.
Separate laser/optics and driver modules allow for flexible installation possibilities.
Specifications:
| Dimensions (H x L x W): | Laser module: 25 x 66 x 29 mm Driver module: 31 x 45 x 37 mm |
| Weight: | Laser module: 55g Driver module: 73g |
| Power: | 28VDC |
| Wavelength: | 860nm |
| Optical Output Power: | Up to 2.2W |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz |
| Boresight: | Yes |
