Lapid Air
The Lapid Air is a compact NIR (near-infrared) laser pointer and illuminator that is designed for manned and unmanned aircraft, and can illuminate a large surface at a wavelength of 865nm. With a small and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.

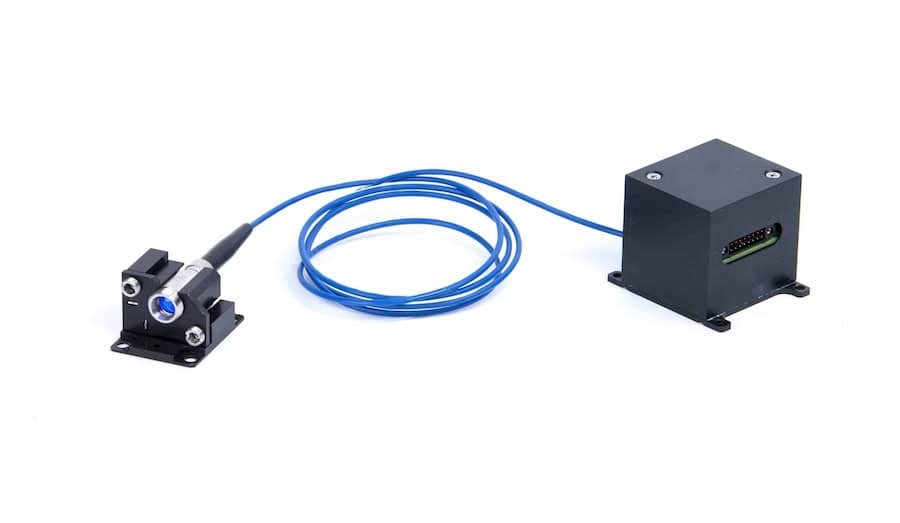

The laser diode is encapsulated in an aluminum housing that can be mounted inside the gimbal system with a boresight mechanism and optics. Separate laser/optics and driver modules allow for flexible installation possibilities.
Specifications:
| Dimensions (H x L x W): |
Laser module: 40 x 30 x 25 mm Driver module: 45 x 40 x 45 mm |
| Weight: | 135g |
| Power: | 28VDC |
| Wavelength: | 830nm |
| Optical Output Power: | 1.5W |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz |
| Boresight: | 2.1ᵒ tilt and 1.4ᵒ pan |
