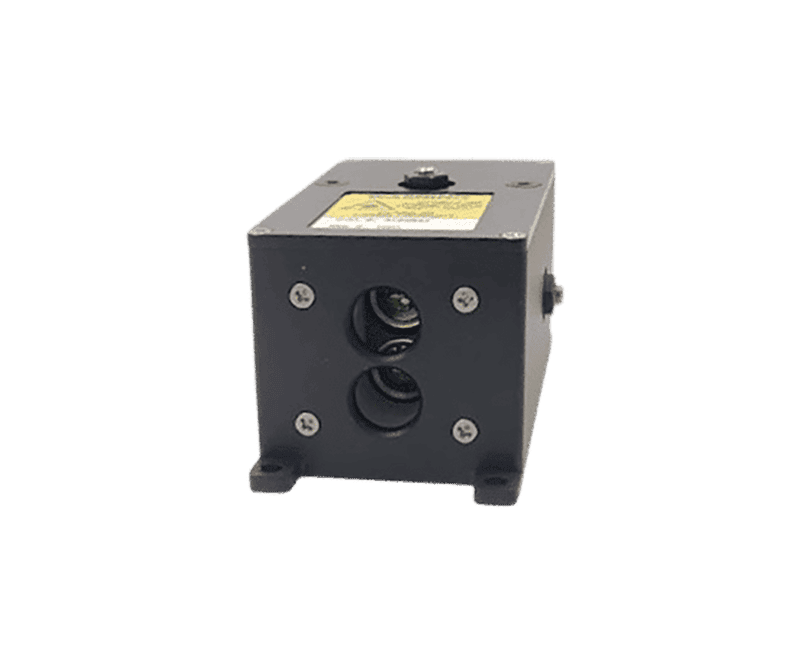

Dual VIS/IR Laser Pointer
The Dual VIS/IR Laser Pointer is a weapon-mountable system that provides visible output at 635nm and IR output at 852nm, with other wavelengths available upon request. Offering excellent long-range capabilities in a low SWaP footprint, it is the most powerful laser in its class.
The rugged unit is designed with an aircraft aluminum and anodized stainless steel construction, and can withstand a range of demanding operating conditions.
Specifications:
| Dimensions: | 84 x 41 x 38 mm |
| Weight: | 130g |
| Power: | 5-12VDC |
| Wavelength: | Visible: 635nm IR: 852nm (Other wavelengths are available) |
| Range/Visibility: | >15 km |
| Optical Output Power: | Up to 150 mW |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz by pulsed input from user to the ENABLE line |
| Boresight: | ±2ᵒ Pan ±2ᵒ Tilt |
