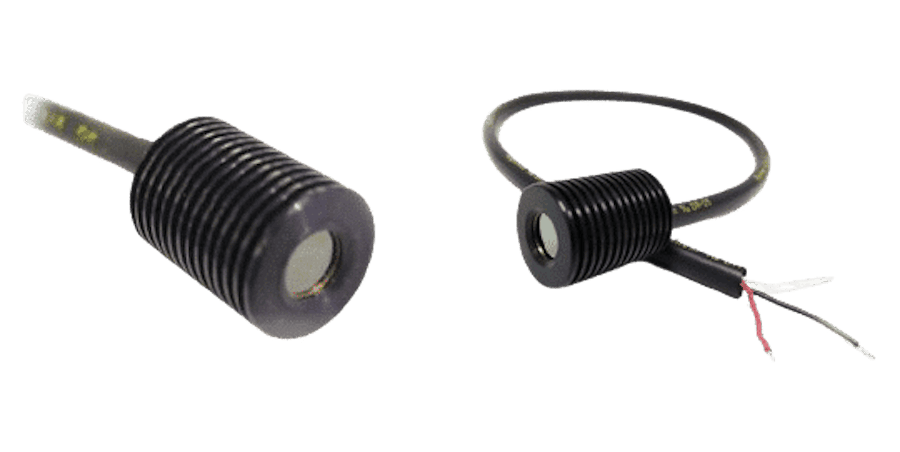

DMR-OEM
Thermal Beacon’s OEM modules provide thermal emission capabilities in a compact and lightweight package that can be easily integrated into a wide range of vehicles and platforms.
The low-power modules utilize no moving parts and are ideal for vessels, land vehicles, aircraft, emergency rescue teams and more.
Specifications:
| Dimensions (D x H): | 21 x 29.5 mm (without cable) |
| Weight: | 50g |
| Power Consumption: | 12V, 1W average |
| Detection Range: | At 3-5μm using InSb Detector & 250mm lens: 3km At 3-5μm using Airborne Optics: 15km At 8-12μm using a microbolometer camera at narrow field: 250m |
| Radiation Divergence: | 40o |
| Repetition Rate: | 1.5 Hz |
