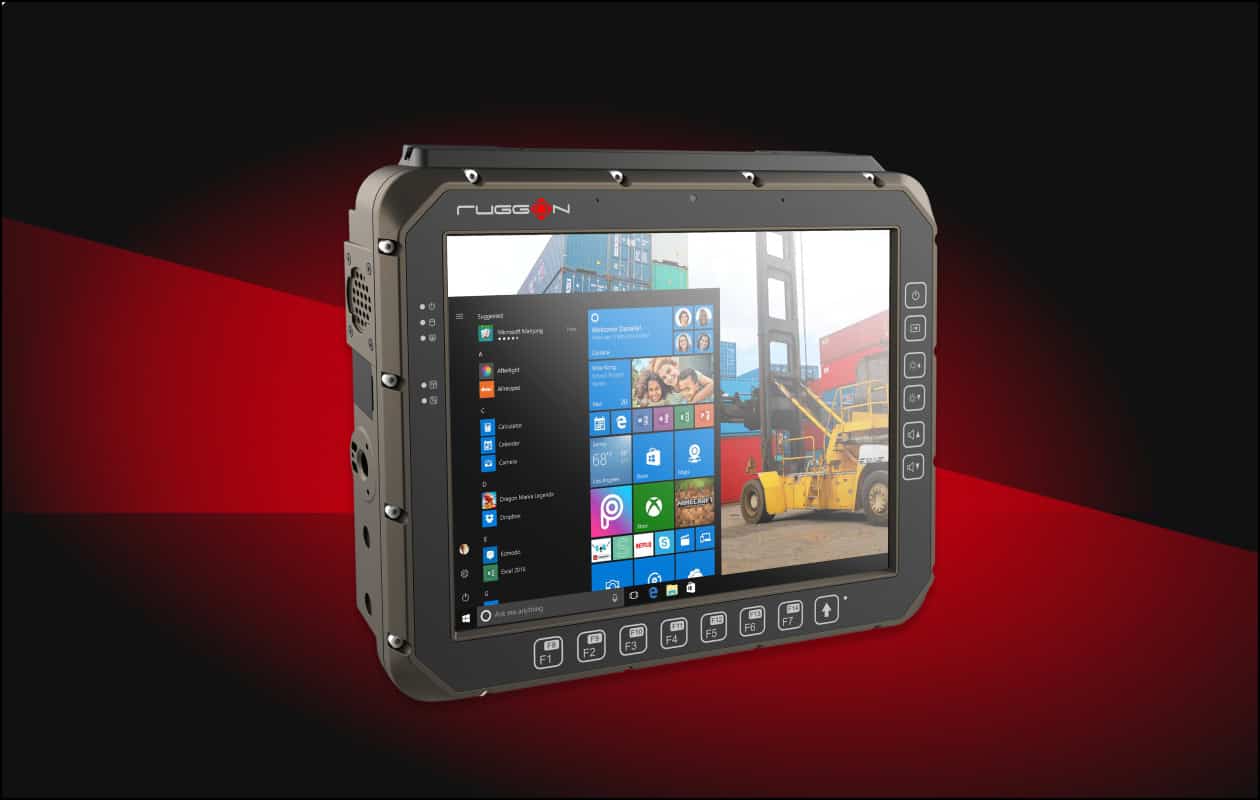

VULCAN 10X
The VULCAN 10X is a cutting-edge vehicle mount computer that is ideal for tactical platforms and robotics. Designed to IP66, MIL-STD-810H and IEC 60721-3-5 5M3 standards, it features a screen defroster option for cold environment applications.
The versatile unit offers a range of wireless communication options, including 5G, Wi-Fi, and Bluetooth 5.0. With fast roaming, it can connect all nodes of an autonomous guided vehicles (AGV) network. Robust M12 connectors allow for reduced cabling and easy installation.
| Dimensions: | 278 x 234 x 57 mm |
| Weight: | 3.2 kg |
| Power: | 9 – 60 VDC |
| System: | Intel® Core™ i5-8365UE 1.6GHz, optional Intel® Celeron® 4305UE 2.0GHz 4GB DDR4 SODIMM, expandable to 32GB M.2 2280 SSD Built-in 6-axis motion sensor, 2 x speaker OS option : Windows 10 IoT Enterprise |
| Display: | 10.4” XGA TFT LCD with LED backlight (1024 x 768) 1200 nits brightness supports auto-dimming 5-wire resistive touch supports defrost / defog function PCT touchscreen supports glove and rain mode (by request) |
| Communications: | Wi-Fi 802.11 a/b/g/n/ac/v/r/k Bluetooth V5.0 Optional 4G LTE / HSPA+ / GPRS or 5G Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS) |
| I/O: | RS-232 with power supported x 1 RS-232(TX,RX)/422/485 x 1, RS-232(TX,RX) x 2, RS-485 x 2 Gigabit Ethernet x 2 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DisplayPort Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 Optional CAN bus 2.0B x 2 or SAE J1939 x 1 DI x 2, DO x 2 Mic in x 2, Line out (L/R) x 1 Optional video input |
