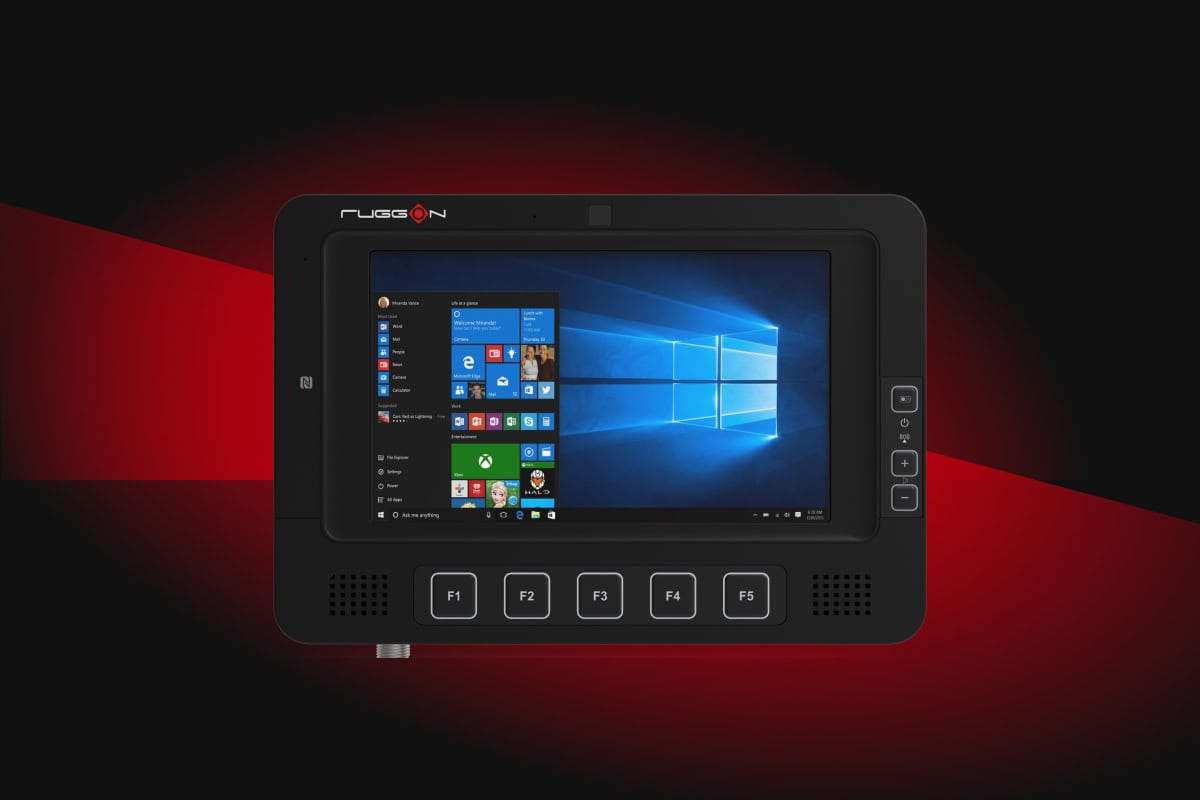

VORTEX 07X
The VORTEX 07X is an advanced vehicle mount computer that is ideal for tactical platforms and robotics operating in tough environments. Based around the Intel® Raptor Lake CPU and offering a 7" touchscreen that can be used in direct sunlight, it has been built with AI readiness in mind and can handle real-time data processing, predictive analytics, and enhanced automation.
The versatile unit offers a range of wireless communication options, including 5G and Iridium SATCOM. Flexible I/O orientation allows it to be installed in tight spaces and challenging geometries, with a quick-release mounting system that requires no disconnecting of cables.
| Dimensions: | 220 x 152 x 53 mm |
| Weight: | 1.67 kg |
| Power: | 9 – 60 VDC |
| System: | Intel Core i5-1335UE up to 4.5GHz Optional Intel Atom x7211E up to 3.20 GHz DDR5 SDRAM up to 16GB M.2 2242 SSD up to 256GB Built-in 6-axis IMU sensors(Accelerometer + Gyroscope), 2 x speaker Windows 11 IoT Enterprise GAC / LTSC |
| Display: | 7” TFT LCD WSVGA (1024 x 600), 500 nits brightness Support auto-dimming |
| Communications: | Wi-Fi 7 (IEEE 802.11be) Bluetooth V5.4 Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS) , dead-reckoning, or RTK supported Optional 4G LTE / HSPA+ / 5G Optional Satellite NFC by request |
| I/O: | USB Type C x 1, USB 2.0 x 2 Micro SD slot x 1 Micro SIM slot x 1, eSIM x 1 IO-A : Secure type connector RS-232 with power supported x 1 Gigabit Ethernet x 1 IO-B : Generic type connector RS-232 with power supported x 1 RS-232 (RX, TX)/422/485 x 1 Gigabit Ethernet x 1 HDMI x 1 DI x 2, DO x 2, CAN bus x 1 Optional : Dual CAN FD/ SAE J1939 x 1/ Video input x 2 IO-C: M12 type connector RS-232 (RX, TX)/ RS-485 x 1 RS-232 (RX, TX)/ RS-485 x 1 Gigabit Ethernet x 2 DI x 3, DO x 1, CAN bus x 1 Optional : Dual CAN FD/ SAE J1939 x 1 |
