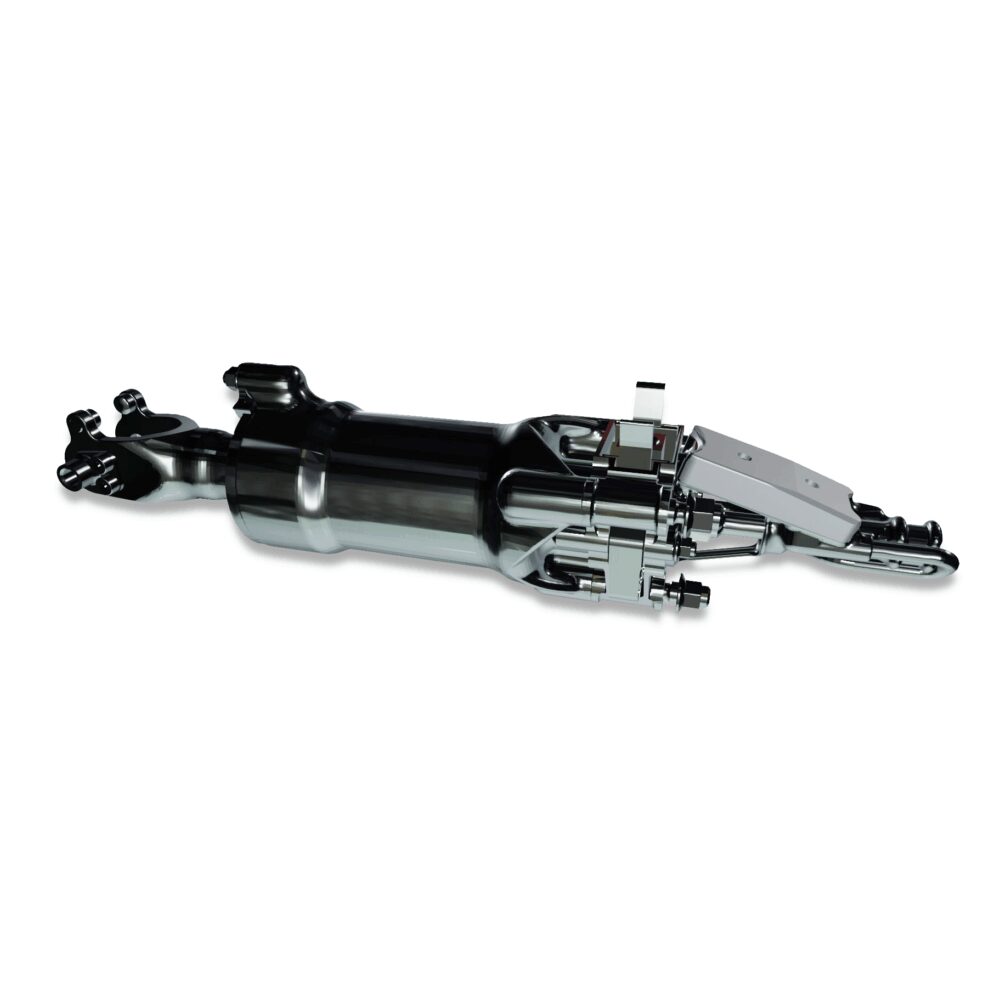

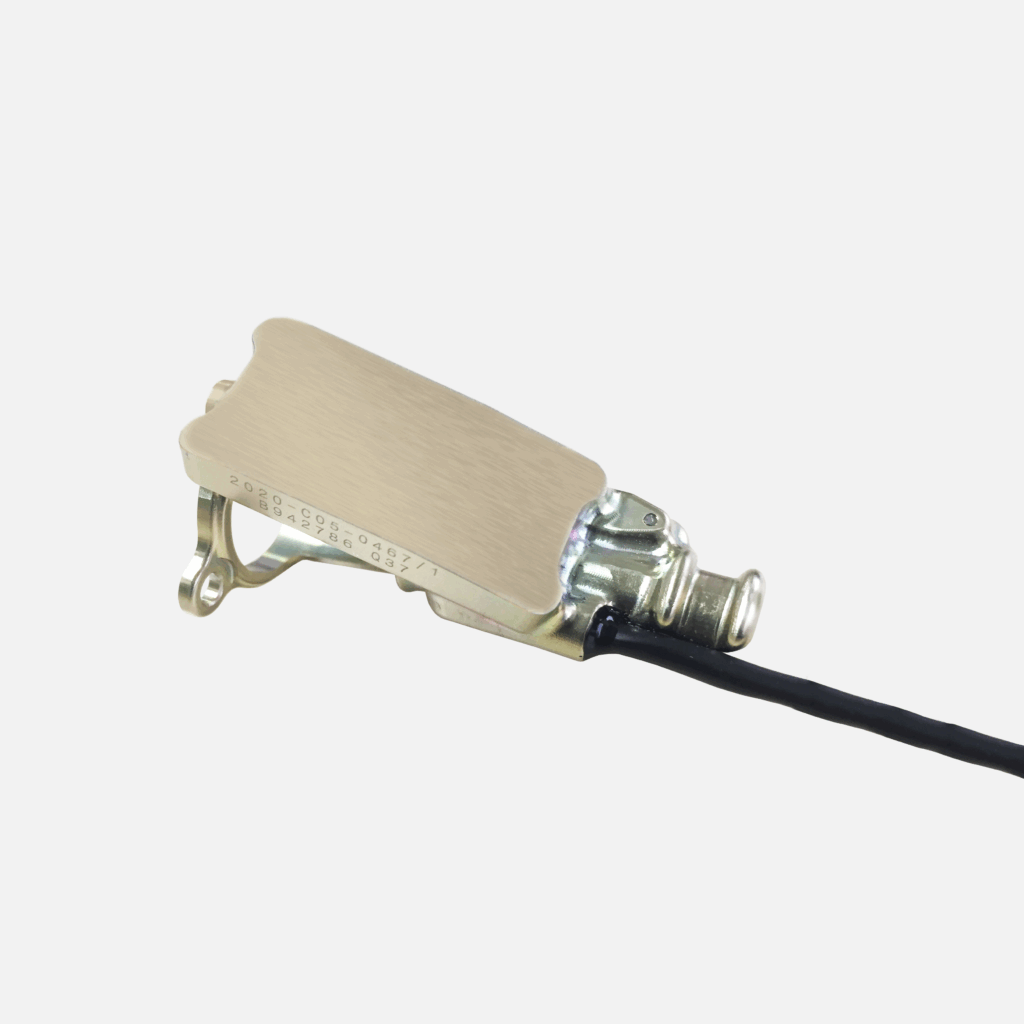

The Quantum TMR Hydraulic Actuator Linear Position Sensor from Reventec delivers reliable, non-contact monitoring of hydraulic actuator position within a compact 12 mm range—configurable up to 20 mm to suit various deployment needs. Powered by solid-state Tunnelling MagnetoResistive (TMR) technology, it offers exceptional accuracy (±0.5% of reading), rapid 5 kHz update rates, and 12‑bit resolution for real-time feedback. With configurable 0.25 V–4.75 V analog and optional CAN outputs processed via integrated CPUs, the device eliminates the need for additional signal processing hardware, simplifying integration into defense control architectures.
Designed for the most demanding environments, this sensor is IP67-rated, thermally robust from –40 °C to +150 °C, and compliant with MIL‑STD‑461G and RTCA DO‑160F EMC standards—ensuring uninterrupted operation in armored vehicles, earth-moving defense platforms, and battlefield robotic systems. Its non-contact design enables measurement through up to 40 mm of air gap and 20 mm of non-ferrous material, offering seamless integration within sealed hydraulic actuators and minimizing wear and maintenance.
| Feature | Specification |
|---|---|
| Measurement Range | 12 mm (configurable to 20 mm) |
| Output | 0.25 V–4.75 V analog; optional CAN |
| Resolution | 12‑bit |
| Accuracy | ±0.5% of reading |
| Update Rate | 5 kHz |
| Operating Temperature | –40 °C to +150 °C |
| Ingress Protection | IP67 |
| Air Gap Capability | Up to 40 mm air; 20 mm non‑ferrous |
| Technology | Quantum TMR™ |
| EMC Compliance | MIL‑STD‑461G, RTCA DO‑160F |
| Customization | Housing, cable/connectors, range |
| Applications | Armored vehicles, defense robotics, hydraulic controls |
