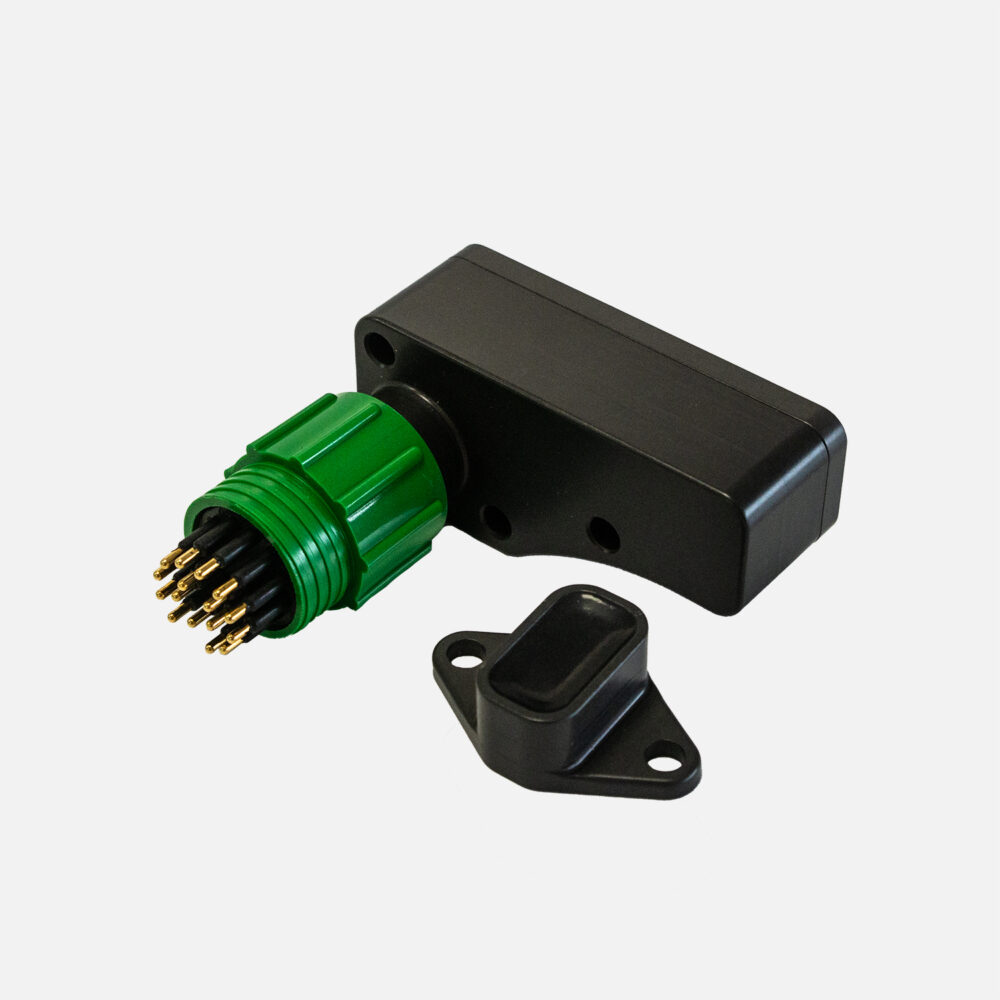

Reventec’s Dual Channel Quantum TMR Hydroplane Arc Position Sensor delivers highly precise arc measurement tailored for submerged control surfaces in naval and subsea defense platforms. Designed around advanced TMR (Tunnelling MagnetoResistive) technology, this solid-state, non-contact sensor measures angular displacement across a 22° arc at 5kHz—providing real-time positional data with ±0.5% accuracy. Dual-output support for both analog (0–5V) and CAN communication offers engineering redundancy, while integrated CPUs remove the need for additional signal processing hardware.
With IP69 ingress protection, a SubConn subsea connector, and full compliance with MIL‑STD‑461G and RTCA DO‑160F EMC standards, the sensor is ideal for operation in corrosive, pressurized marine environments. Its hard-anodized aluminium housing and pressure rating of 5 bar ensure long-term deployment durability, and its programmable architecture allows for custom sensing ranges. Whether embedded in automated diving systems, hydroplane actuators, or precision-guided marine platforms, this sensor delivers reliability where precision and survivability are paramount.
| Feature | Specification |
|---|---|
| Measurement Range | 22° arc (programmable) |
| Output | Dual: 0–5 V analog and CAN |
| Accuracy | ±0.5% of reading |
| Update Rate | 5 kHz |
| Operating Temperature | –40 °C to +125 °C |
| Ingress Protection | IP69 |
| Pressure Rating | Up to 5 bar |
| Connector | SubConn MCBH-12-MP (12-pin) |
| Housing Material | Hard-anodized aluminium |
| Technology | Quantum TMR™ |
| EMC Certifications | MIL‑STD‑461G, RTCA DO‑160F |
| Programmability | Customizable via integrated CPU |
| Air Gap Capability | Measures across 2.5mm–40mm (non-ferrous) |
| Applications | Naval platforms, hydroplane actuators, subsea control |
