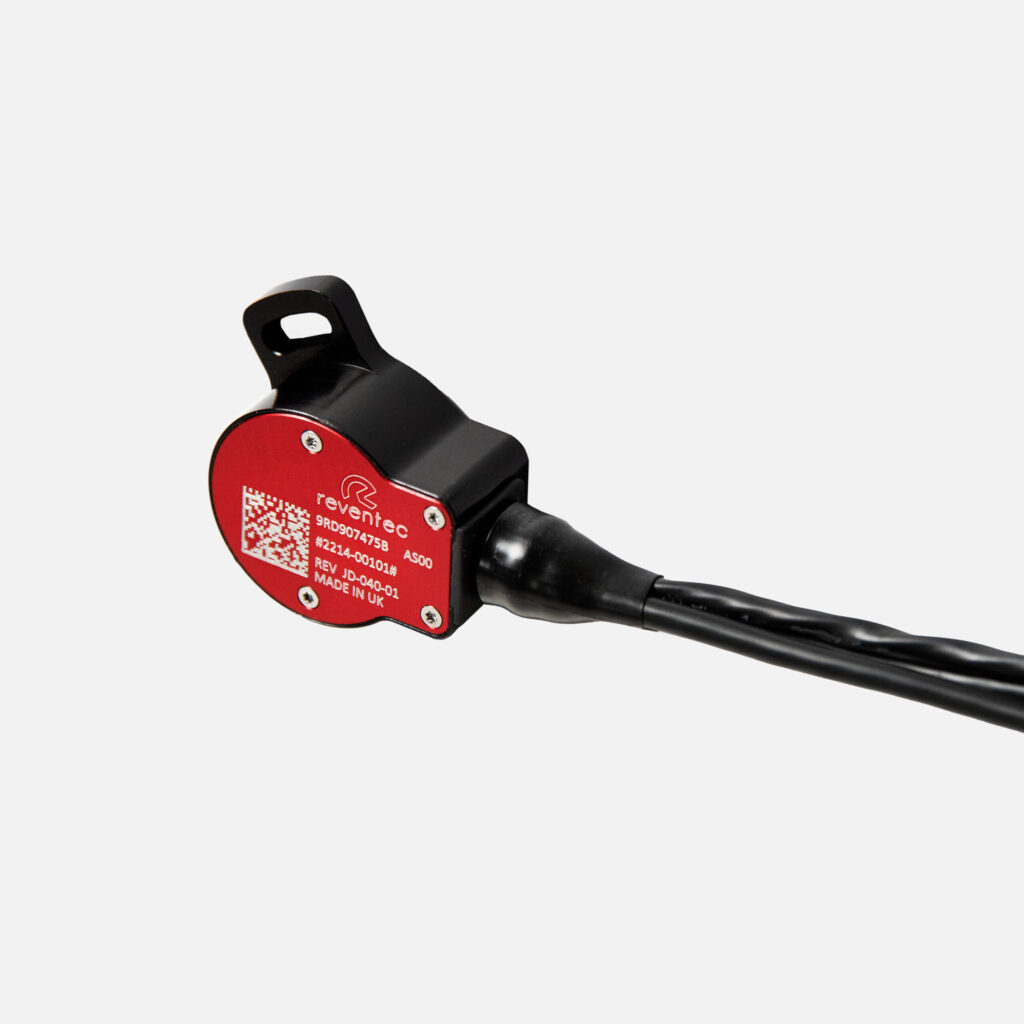

Reventec’s Quantum TMR 360° Triple Channel Rotary Position Sensor with 3 cables provides precise, non-contact angular position feedback across a full 359° range, optimized for demanding unmanned environments. Powered by advanced Tunnelling MagnetoResistive (TMR) technology, this solid-state device features three independently configurable analog output channels, enabling fault-tolerant redundancy or multi-parameter tuning within UAVs, UGVs, and robotic platforms. With a 5kHz response rate and ±0.5% reading accuracy, it delivers real-time data critical to high-dynamic control systems.
Encapsulated in a rugged IP67-rated housing and engineered to operate from –40°C to +150°C, the sensor supports continuous operation in thermally and mechanically hostile environments. Designed to replace legacy potentiometric units, it leverages an integrated CPU for each output, eliminating the need for external signal processing. Its modular architecture allows full programmability via GUI and supports a range of housing geometries, cable lengths, and connector types—enabling seamless system integration across defense, industrial automation, and autonomous vehicle sectors.
| Feature | Specification |
|---|---|
| Measurement Range | 0 – 359° |
| Output | Triple channel, analog VDC |
| Output Resolution | 12-bit |
| Accuracy | ±0.5% of reading |
| Response Rate | 5kHz |
| Operating Temperature | –40°C to +150°C |
| Ingress Protection | IP67 |
| Technology | Quantum TMR™ |
| Shaft Type | Non-contact, rotary sensing |
| Programmability | Field-configurable via GUI |
| Applications | UAV, UGV, robotics, defense, marine, automotive |
