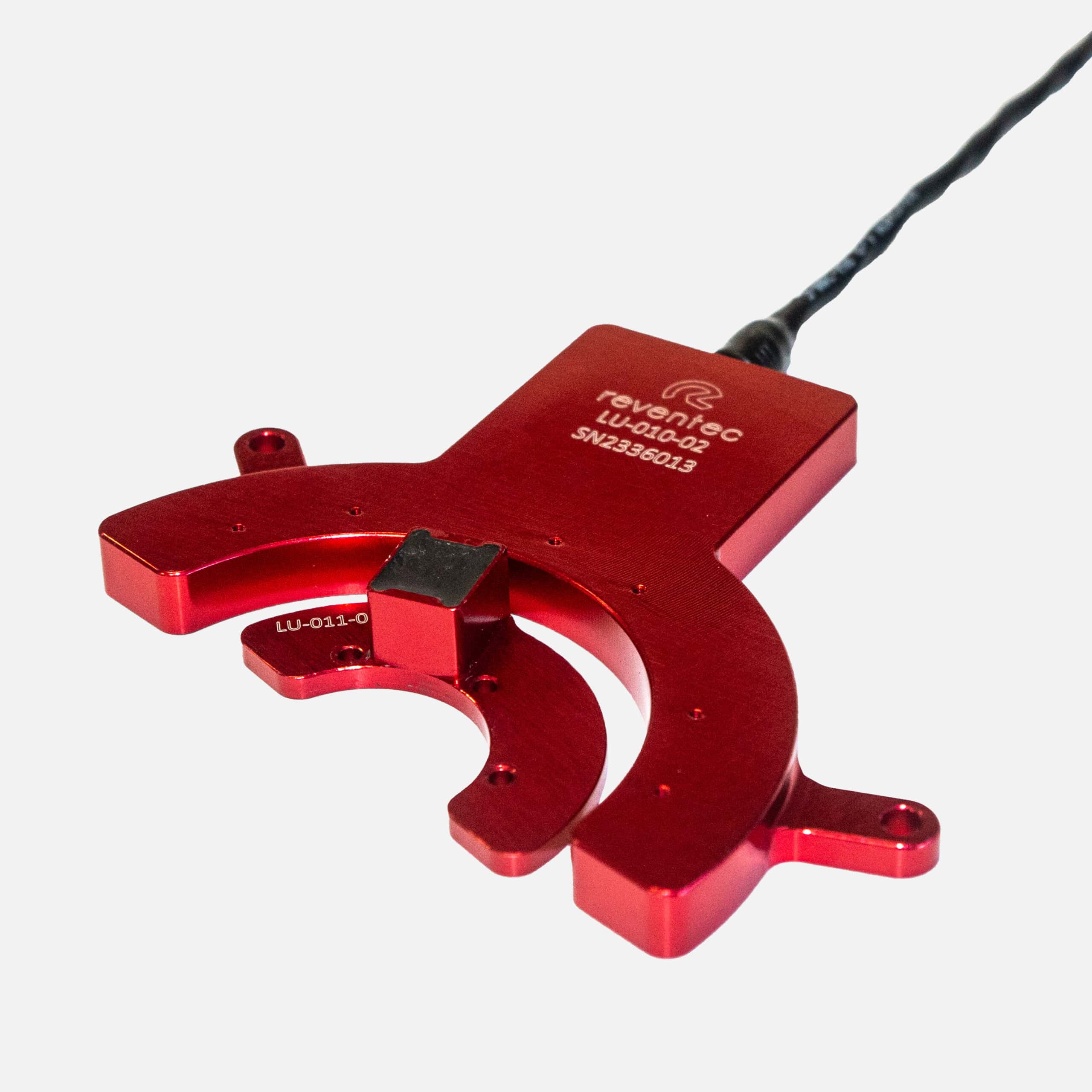

The Quantum TMR 180° Arc Position Sensor employs solid-state, non-contact Tunnelling MagnetoResistive (TMR) technology for reliability and precision in demanding military applications. Covering ±90° of measurement, it delivers accurate position data with a rapid 5 kHz refresh rate and ±0.5% reading accuracy. Housed in hard-anodized aluminium and rated IP67, this sensor withstands shock, vibration, extreme temperatures (–40 °C to +150 °C), and marine-grade environmental stress—ensuring uninterrupted performance across combat vehicles, armoured platforms, and unmanned defense systems.
An integrated onboard CPU generates a ratiometric 0–5 V analog output for seamless integration, while the robust design eliminates mechanical wear and reduces maintenance needs. Delivered factory-calibrated and highly customizable in form, range, materials, and connectors, it’s an adaptable solution built for mission-critical reliability.
| Feature | Specification |
|---|---|
| Measurement Range | ±90° (180° arc) |
| Output | 0–5 V analog (ratiometric) |
| Resolution | 12‑bit |
| Accuracy | ±0.5% of reading |
| Update Rate | 5 kHz |
| Operating Temperature | –40 °C to +150 °C |
| Ingress Protection | IP67 |
| Housing Material | Hard-anodized aluminium |
| Sensing Type | Non‑contact, solid‑state |
| Programmability | Factory-calibrated; customizable range and form |
| Applications | Combat vehicles, defense ASV/UAV actuation, armoured steering |
