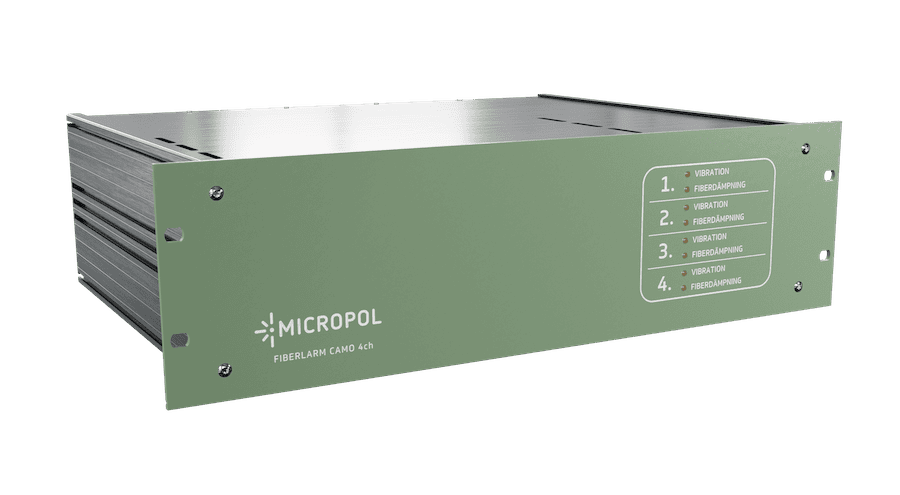

Micropol’s CAMO Cable Monitor protects against information wire-tapping of fiber optic cables by monitoring for changes in optical characteristics due to factors such as pressure variations, mechanical strain, vibration, and temperature changes.
The system can operate at either 1310 nm or 780 nm for WDM systems, and facilitates multiplexing into transmission systems operating at 1310 nm or 1550 nm. Users can set alarms based on trigger events within a specific time frame, as well as for attenuation exceeding specified limits.
Specifications:
Fiber Type: Single- or multi-mode
Wavelength: 1310 nm or 780 nm
Transmission length: 30 km @1310 nm, 4 km @780 nm
Number of channels: 1-4
Alarm interface: Two individual on/off relays per channel
Monitoring software: PC over IP interface
Power interface: 110VAC or 230VAC
