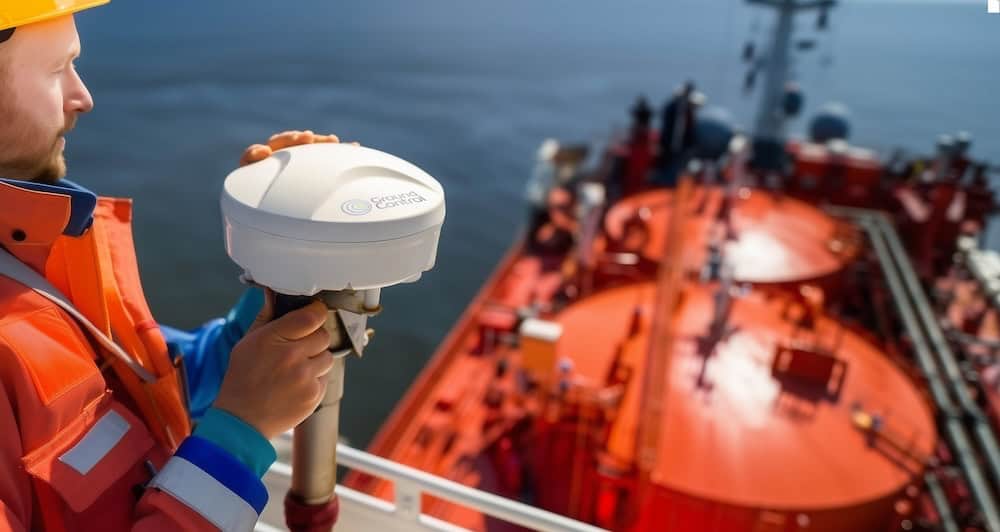

RockFLEET Assured is an IP67-rated marine-grade smart antenna that provides vessel crews and fleet operators with assured positioning via Iridium PNT and two-way messaging via Iridium Messaging Transport.

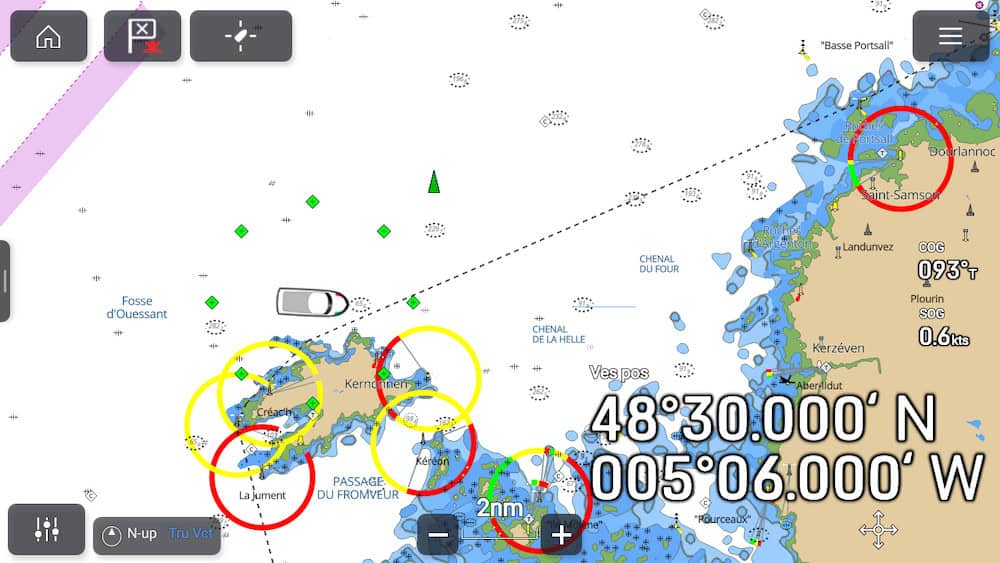

Offering an authenticated position source during jamming and spoofing attacks and other GNSS-denied and degraded conditions, it can be configured to report at intervals from 1 minute to 1 hour, and can log and share integrity events and alerts. Assured position can also be optionally displayed on a chart view alongside GNSS position and integrity status indicators.
The rugged easy-to-install unit is provided as a single above-deck terminal, with below-deck electronics only required for the bridge view capability. An optional backup battery ensures continued tracking and reporting during vessel power outages.
| Dimensions (D x H): | 201 x 125 mm |
| Weight: | 1460g (incl. mounting bracket) |
| Power: | 20 – 30 VDC Optional 220 VAC (via external power supply) Optional backup battery |
| Operating Temperature Range: | -40 to +70oC |
| Communications: | IMT: Data transfer packet size flexible from 25 to 100,000 bytes A-PNT: Integrated Iridium PNT module |
| Supported Messages: | Position reports, alerts (geofence / power / tamper as configured), and additional operational payloads (size / rate profile configurable) |
