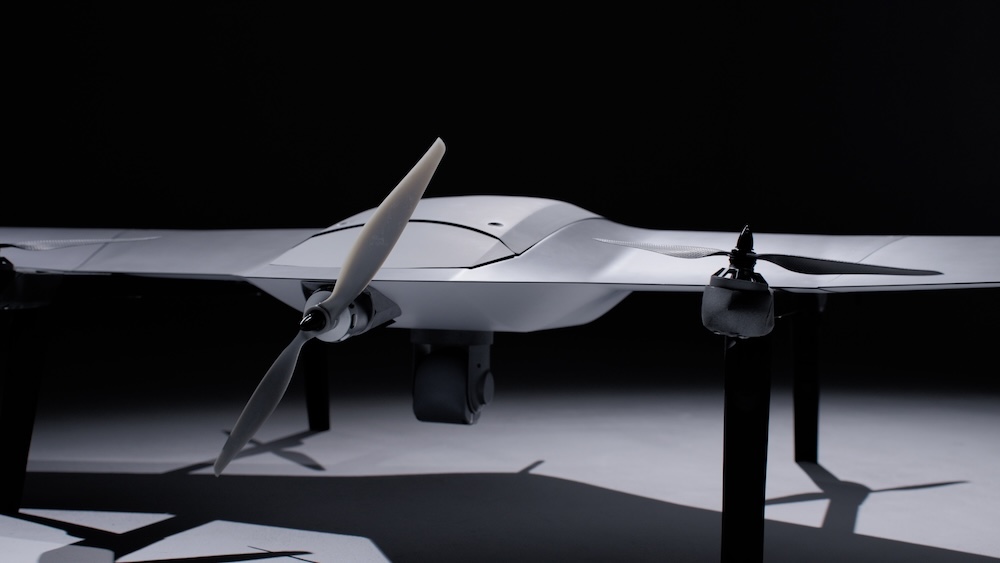

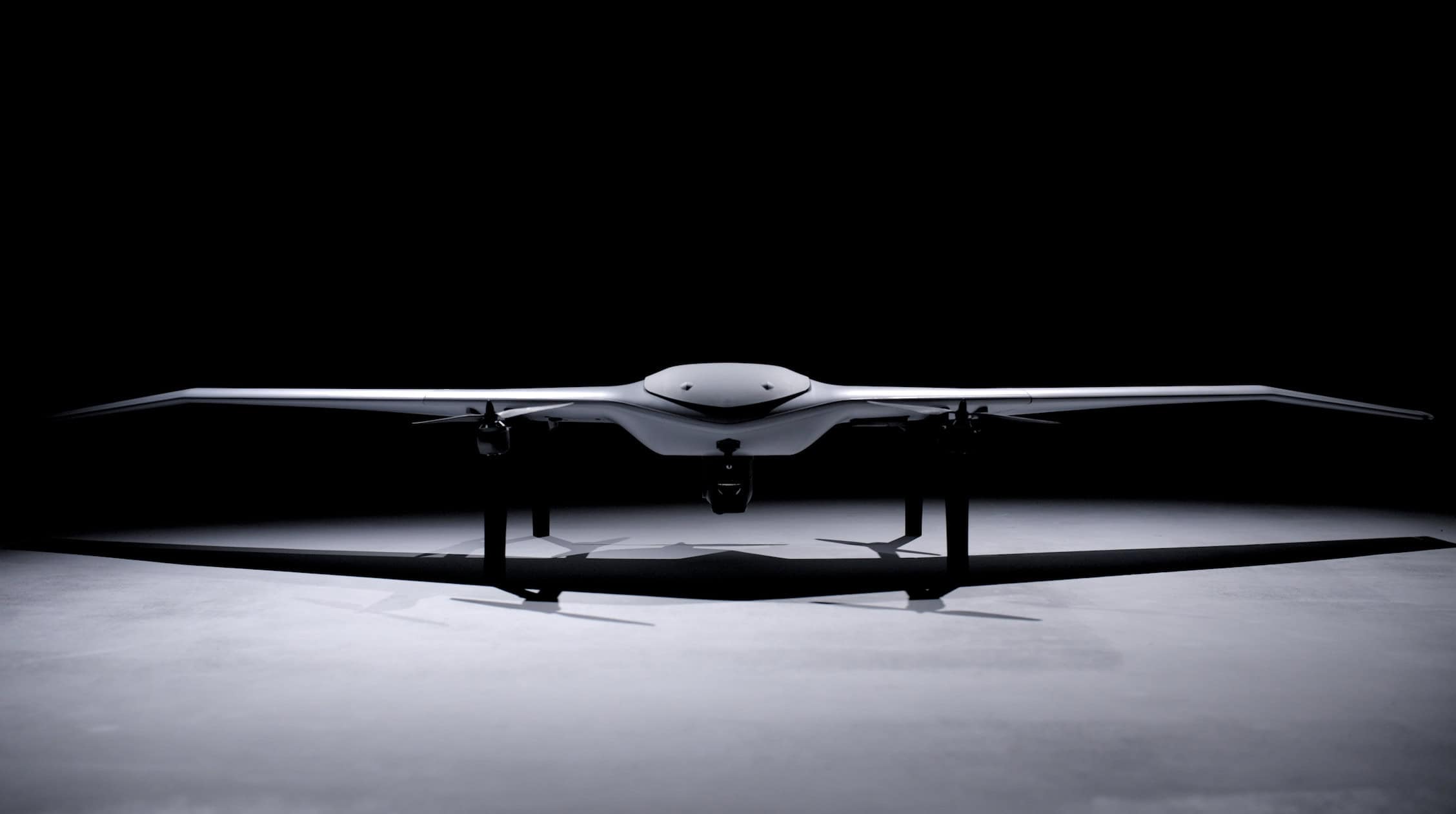

DeltaQuad Evo-LE Tactical is an electric fixed-wing VTOL unmanned aerial system designed for extended intelligence, surveillance, target acquisition and reconnaissance (ISTAR) missions. Offering up to eight hours of flight time and 480 km flight range, it supports persistent aerial coverage across large and remote areas without dependence on runway infrastructure.

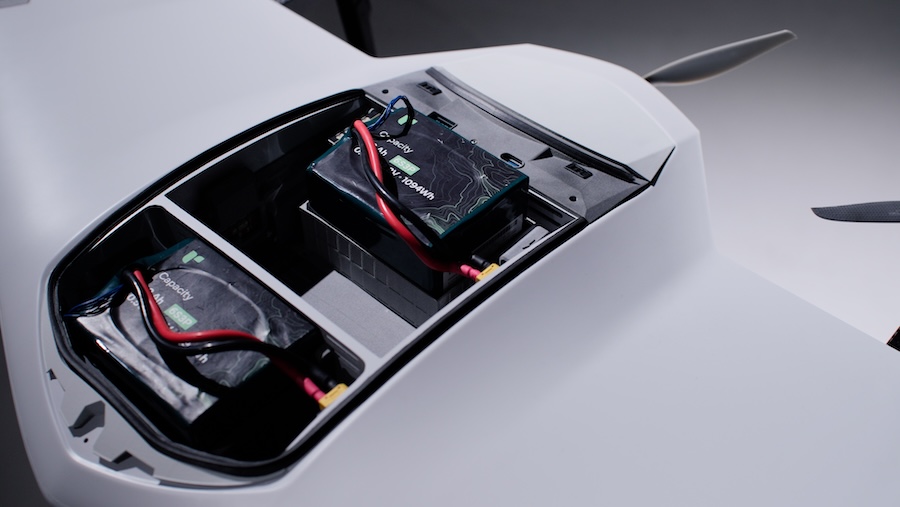

A dual-battery configuration, higher-energy-density battery technology, redesigned electrical architecture and upgraded VTOL drivetrain extend endurance. The Block 3 airframe incorporates improved ingress protection and rain performance, a heated pitot tube and detachable landing legs designed to help protect the airframe during hard landings.

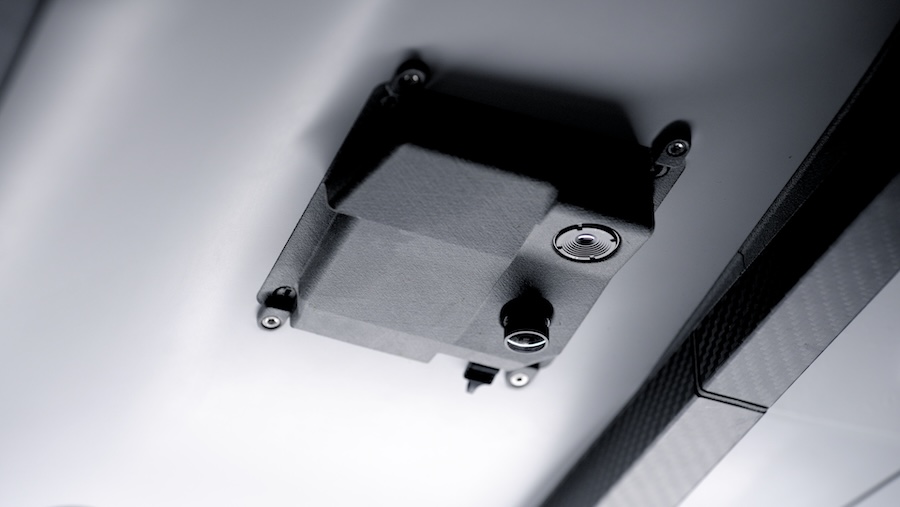

Mission-specific navigation options include four- or eight-array CRPA anti-jamming GNSS and optional visual navigation. Mesh and phased-array broadband radio options support secure communications, with AES-256 encryption available across selected configurations. Auterion Tactical Stack avionics and ruggedized ground control support field deployment.
Evo-LE is currently available with the NextVision Raptor stabilized RGB and thermal imaging payload for long-range surveillance and tracking. Its endurance supports sustained ISTAR, border surveillance and communications relay operations.
Specifications:
| Platform type | Electric fixed-wing VTOL UAS |
| Airframe | Block 3 |
| Maximum flight time | Up to 8 hours |
| Maximum flight range | Up to 480 km |
| Maximum radio range | Up to 120 km |
| Maximum take-off weight | 13 kg |
| Payload capacity | Up to 1.5 kg |
| Battery configuration | Dual battery |
| Current imaging payload | NextVision Raptor stabilized RGB/thermal camera |
| GNSS options | Four- or eight-array CRPA anti-jamming GNSS |
| Visual navigation | Optional |
| Communications options | Mesh and phased-array broadband radios |
| Encryption | AES-256 across selected configurations |
| Avionics | Auterion Tactical Stack |
| Ground control | Ruggedized ground control setup |
