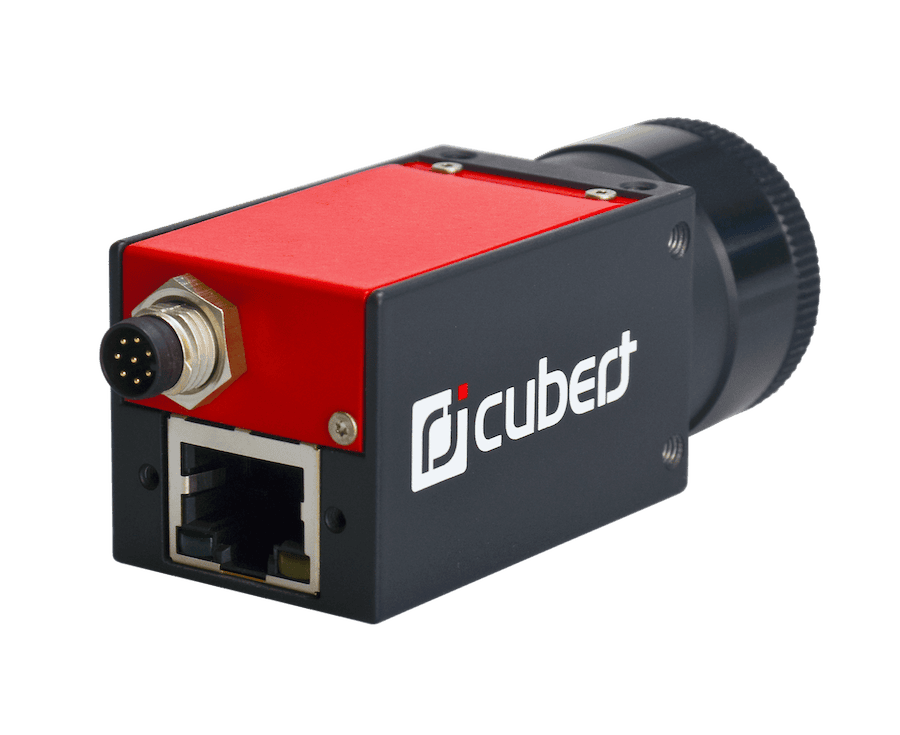

ULTRIS 5
The ULTRIS 5 is Cubert’s smallest-ever hyperspectral imaging camera, delivering a level of cost-effectiveness that competes with RGB and multispectral solutions. With a 5MP sensor covering the 450-850 nm VNIR range, it weighs just 120g with a 30 x 30 x 50 mm footprint, and is ideal for defense OEMs and system integrators.
The miniature camera can be equipped with a Relay Lens Adapter that allows the instant attachment of any C-mount lens, enabling a wide range of long-range, tactical and specialized applications. It is also available in an HFR variant that offers 10 GigE connectivity, unlocking the full potential of the integrated Sony IMX250 sensor with frame rates of up to 75Hz.
| Dimensions: | 29 x 29 x 65 mm |
| Weight: | 126g |
| Wavelength Range: | 450 - 850 nm |
| Spatial Resolution: | 290 x 275 |
| Spectral Bands: | 51 |
| FOV: | Lens-dependent |
| Max Frame Rate: | 15 Hz 75 Hz (HFR) |
| Data Depth: | 12 bit |
