TOYGUN 100 & 200

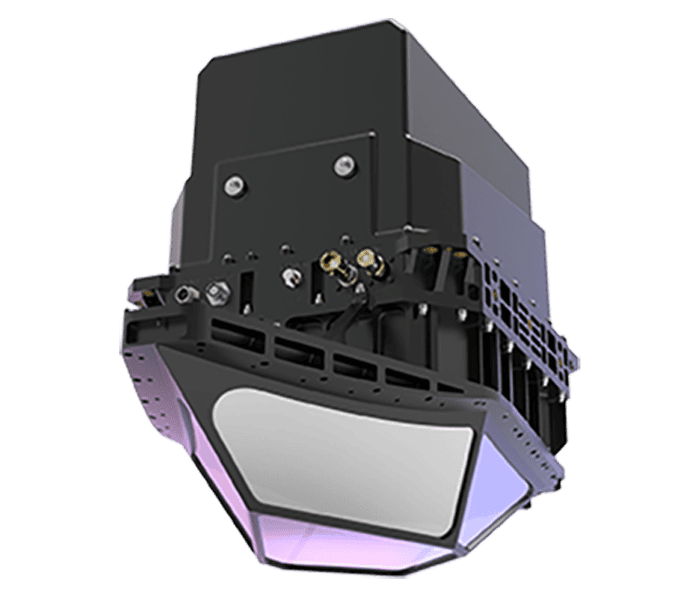

TOYGUN is an electro-optical imaging and targeting system for aircraft where radar cross-section and aerodynamic drag are critical. The system is integrated into the aircraft fuselage and protected by a faceted optical window designed for each specific platform.
The system uses common aperture technology for MWIR thermal imaging and laser designation and range finding. It offers air-to-air and air-to-ground targeting, reconnaissance and surveillance, single and multi-target tracking, automatic target tracking, wide-area scan and IRST functions.
Specifications:
| HD IR camera | 1280 x 1024, 15 µm, MWIR |
| Field of regard | Horizontal 360 degrees continuous; vertical -90 degrees to +10 degrees, integration-dependent |
| Laser range finder / target designator | 1570 nm training and 1064 nm combat |
| Laser range | Up to 35 km |
| Coding | NATO STANAG 3733 |
| Communication interface | RS-422, MIL-STD-1553B |
| Power interface | MIL-STD-704F compatible; 270 VDC sensor suite; 28 VDC optional electronic unit |
| Power consumption | <1000 W |
