PUHU 200

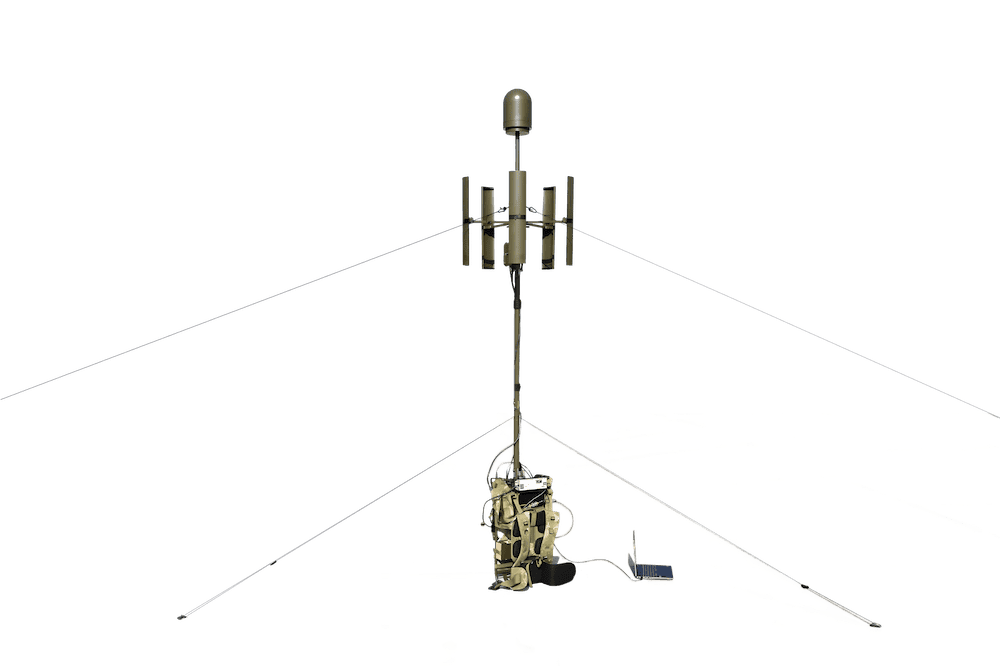

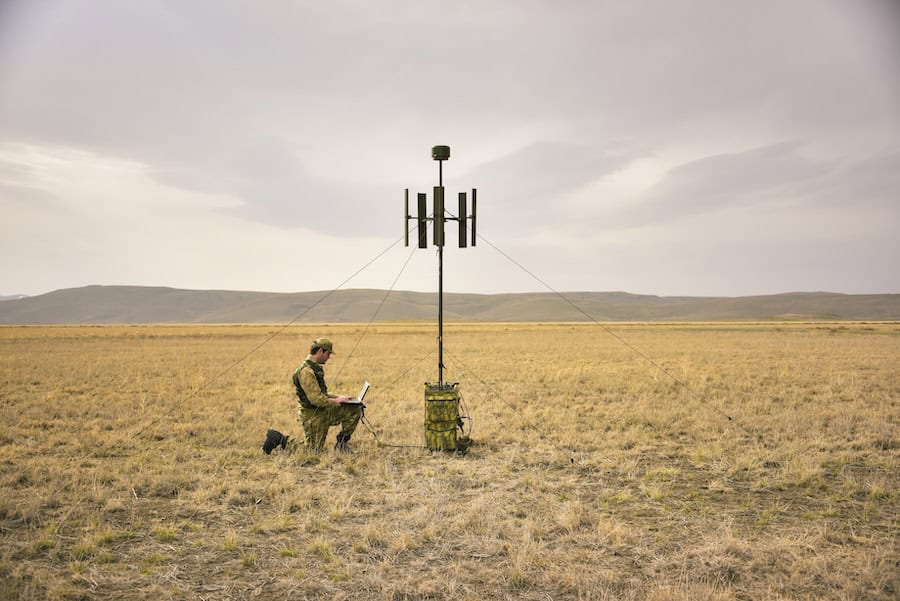

PUHU 200 is a man-portable V/U/SHF signal detection, classification and direction-finding system designed to support tactical combat units. The system detects, identifies, monitors and locates signals of interest, including communications and signals associated with mini and micro UAVs and their remote controllers.
The system can provide line-of-bearing results and geolocation on a digital map, and can operate as a single system or together with other PUHU 200 units for shared-operation position fixing. Its modular architecture, built-in test, low power consumption and mains-power operation support field deployment by mobile teams.
Specifications:
| Operating range | V/UHF/SHF |
| Direction accuracy | 3 degrees RMS |
| Instantaneous bandwidth | 80 MHz |
| Azimuth coverage | 0-360 degrees |
| Digital listening channels | 2 |
| Audio recording capacity | 150 hours, two-channel |
| Power consumption | <100 W |
| Total weight | <50 kg |
| Operating temperature | -30 degrees C to +50 degrees C |
| Storage temperature | -40 degrees C to +60 degrees C |
