KARAT 100 & 200

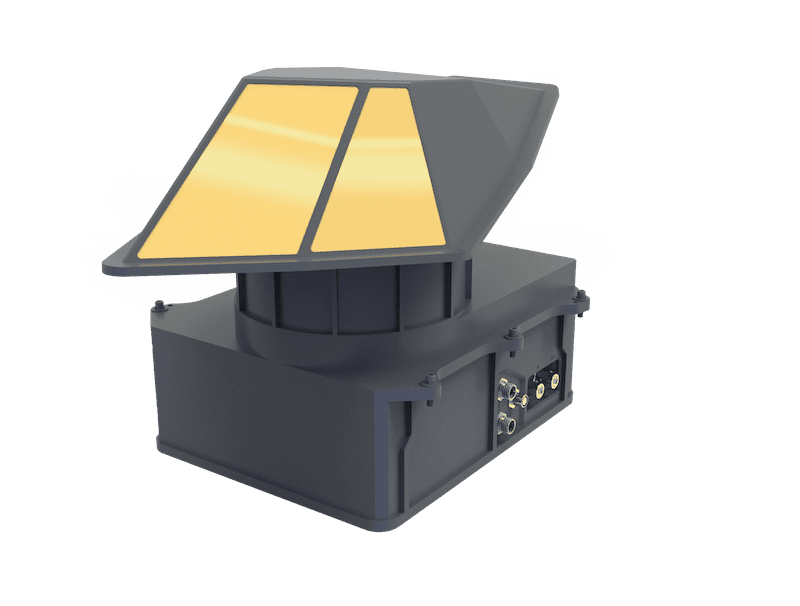

KARAT is an integrated infrared search and track system for manned and unmanned fighter aircraft, fixed-wing aircraft, rotary-wing aircraft and UAVs. The system provides air-to-air search, detection and tracking with a faceted-window structure to minimize radar cross-section.
The system uses high-performance LWIR imaging and can be aligned with the platform’s line of sight. It offers a range of features including multiple target tracking, adjustable search volume, wide scan operation and narrow or wide field-of-view modes. Passive range estimation and angular position data can be provided for detected targets.
Specifications:
| Wavelength | LWIR |
| FOV | Narrow: 4.0 x 3.2 degrees; wide: 8.0 x 6.4 degrees |
| Volume scanning duration | <=30 sec |
| Communication / video interface | Fiber Ethernet |
| Power | MIL-STD-704F, 28 VDC |
| Size | Width <=490 mm; height <=510 mm; depth <=710 mm |
| Weight | Sensor unit <=55 kg; optional electronic unit <=25 kg |
| Operating temperature | -40 degrees C to +70 degrees C |
| Storage temperature | -54 degrees C to +71 degrees C |
| Cooling interface | Liquid cooling |
