ILGAR 3-LT 200
ILGAR 3-LT 200 is a new-generation mobile electronic attack system designed to act against V/UHF and partial SHF communications systems. It provides blocking, delay and deception effects against target communications, with high RF output power and reactive jamming against frequency-hopping signals.
The system includes electronic support capabilities to search, detect, direction-find and locate signals, helping to improve jamming performance. The mission planning software offers RF propagation analysis and the calculation of system location and jamming power.

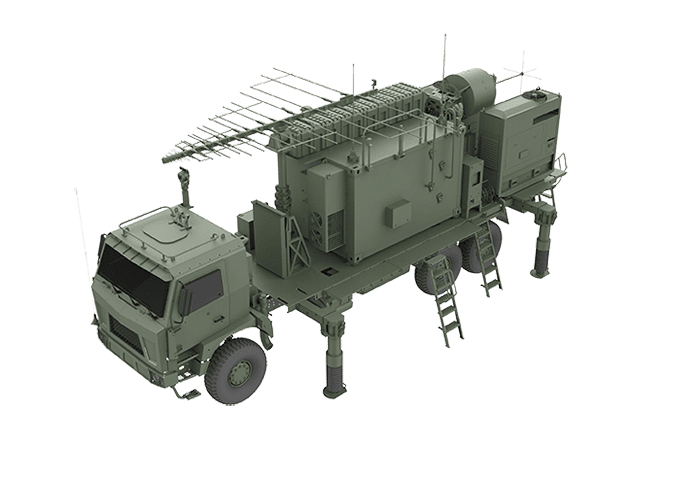

ILGAR 3-LT 200 can be integrated into tactical wheeled armored vehicles and supports rapid shoot-and-scoot operation after the jamming mission.
Specifications:
| Frequency coverage | V/UHF and partial SHF |
| RF output power | Customer-specific solutions |
| Jamming types | Continuous, look-through and target-triggered |
| Jamming modes | Spot, sequential, multiple, barrage and reactive |
| Deception capability | Analog and digital deception sources |
| Demodulation | FM, AM, LSB, USB, CW |
| Recording modes | Audio, DB IQ and IF signal recording |
| Generator power | 230/400 VAC +/-10%, 47-53 Hz |
| Operating temperature | -30 degrees C to +50 degrees C; 0 degrees C to +50 degrees C |
| Storage temperature | -40 degrees C to +60 degrees C |
| Humidity | 90% non-condensing |
