FULMAR 200-A

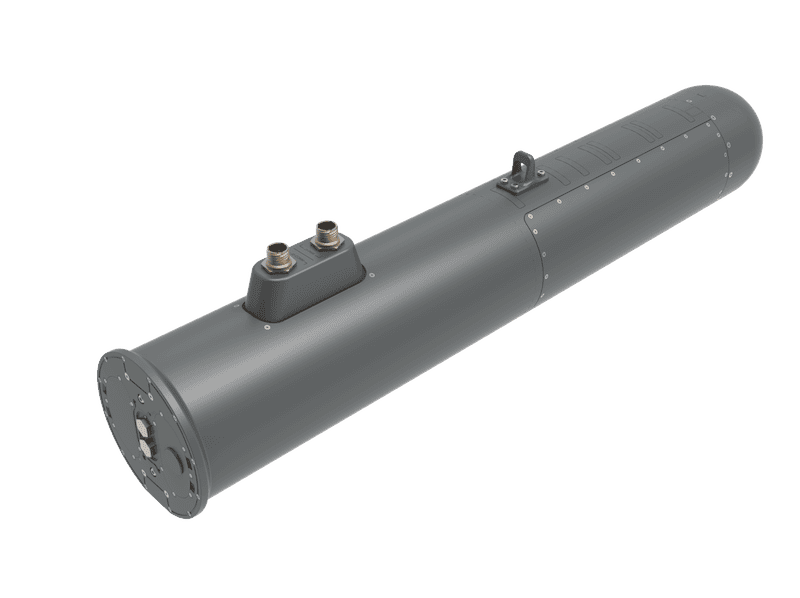

FULMAR 200-A is a lightweight and compact synthetic aperture radar pod system for manned and unmanned aircraft. The system uses an AESA antenna with agile electronic beam scanning and is ideal for airborne surveillance and reconnaissance missions.

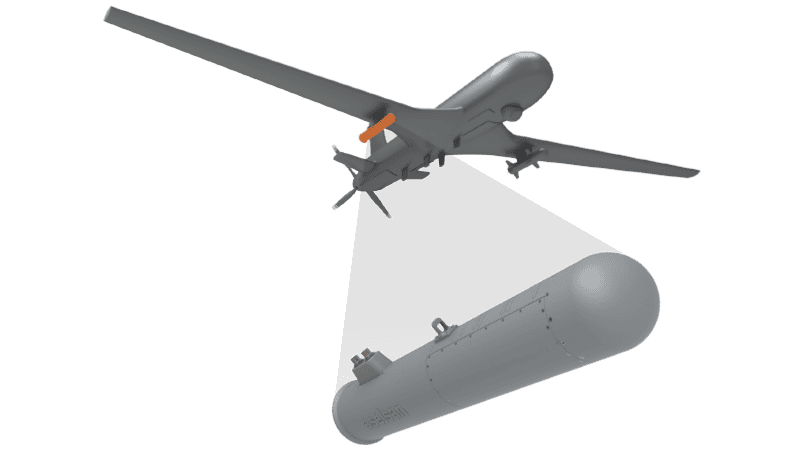

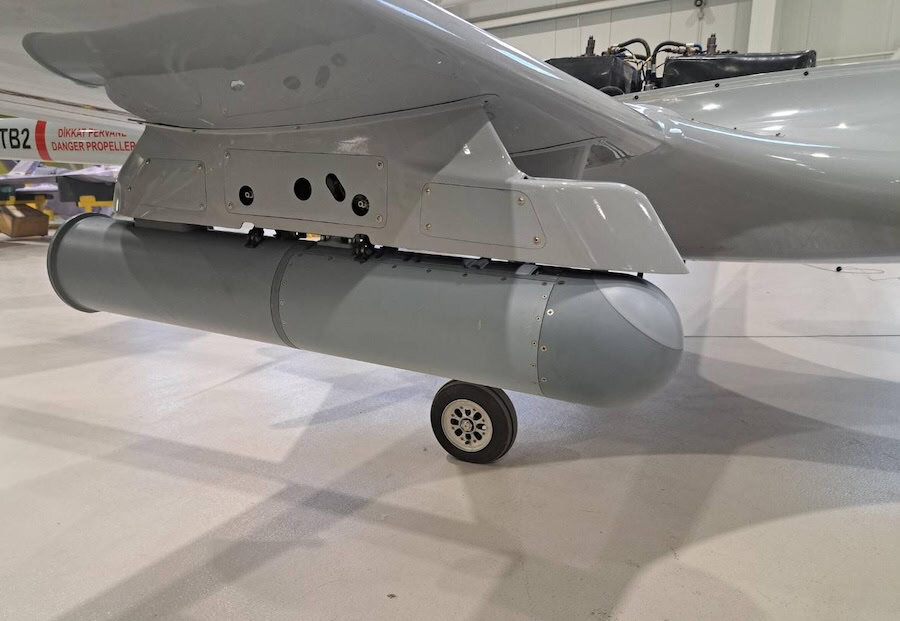

The pod provides high-resolution stripmap and spotlight SAR imaging under all-weather conditions. Its podded form allows it to be integrated under the wing or body of air platforms, and it can be used alongside EO/IR cameras.
Specifications:
| Operating frequency | X-band |
| SAR imaging range | 40 km |
| Weight | <20 kg |
| Input power | 350 W at 28 VDC |
| Image compatibility | STANAG 7023 |
| Operating altitude | Up to 30,000 ft |
| Installation | Wing or body installation options |
