ASELFLIR 600

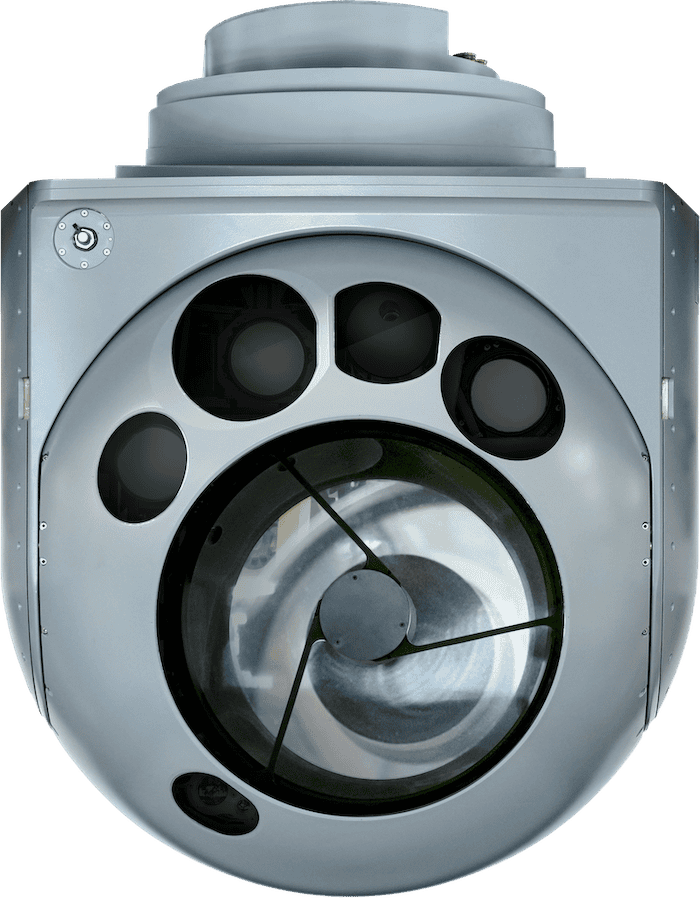

ASELFLIR 600 is a new-generation 25-inch electro-optical reconnaissance, surveillance and targeting system for HALE-class fixed-wing platforms. The system is intended for long-range target detection, tracking and targeting even under challenging weather conditions.

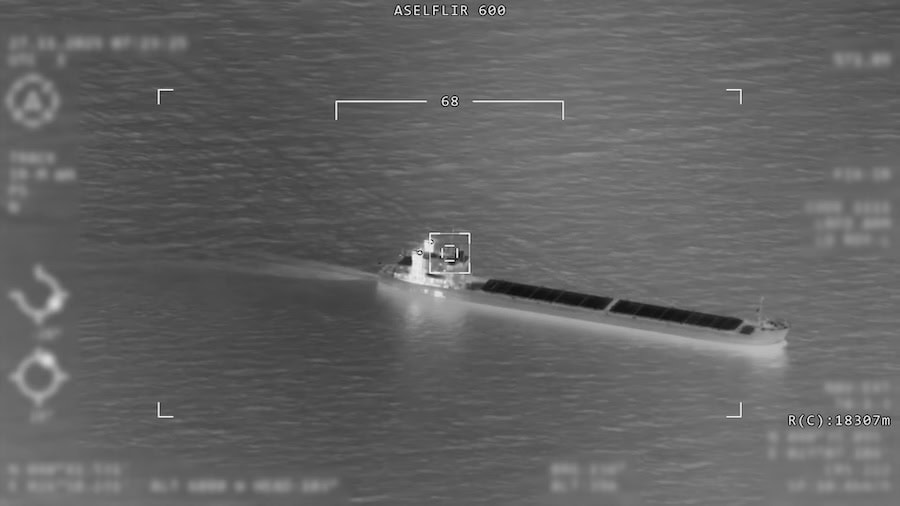

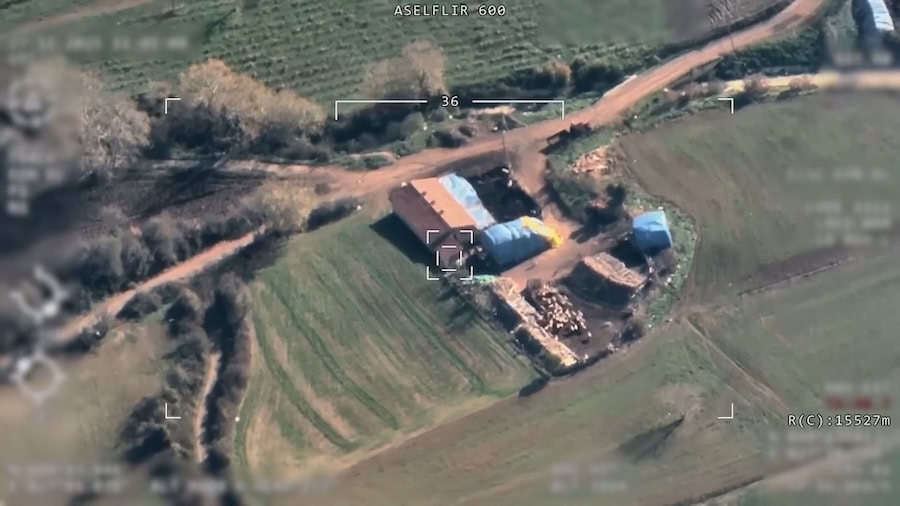

The payload combines HD MWIR thermal imaging, Full HD daytime imaging, HD SWIR imaging, laser spot tracking, laser range finding, laser target designation and laser pointer functions. It also provides internal alignment, digital video, advanced image processing, multi-target tracking and automatic target recognition.
Specifications:
| Primary mirror diameter | 325 mm |
| HD MWIR | 1280 x 1024, MWIR |
| Full HD Day TV | 1920 x 1080 |
| HD SWIR | 1280 x 1024 |
| Field of regard | Azimuth 360 degrees continuous; elevation +95 degrees to -120 degrees |
| Laser range finder / designator | 1064 nm, up to 35 km, STANAG 3733 Band I and II |
| Laser pointer | NIR compatible with NVGs |
| Communication | RS-422, MIL-STD-1553B |
| Video | 4 x SMPTE-292M HD-SDI, 1920 x 1080p |
| Power | 28 VDC |
| Size | Width 655 mm; height 720 mm |
| Weight | 120 kg +10% |
| Operating temperature | -55 degrees C to +55 degrees C |
| Storage temperature | -55 degrees C to +71 degrees C |
