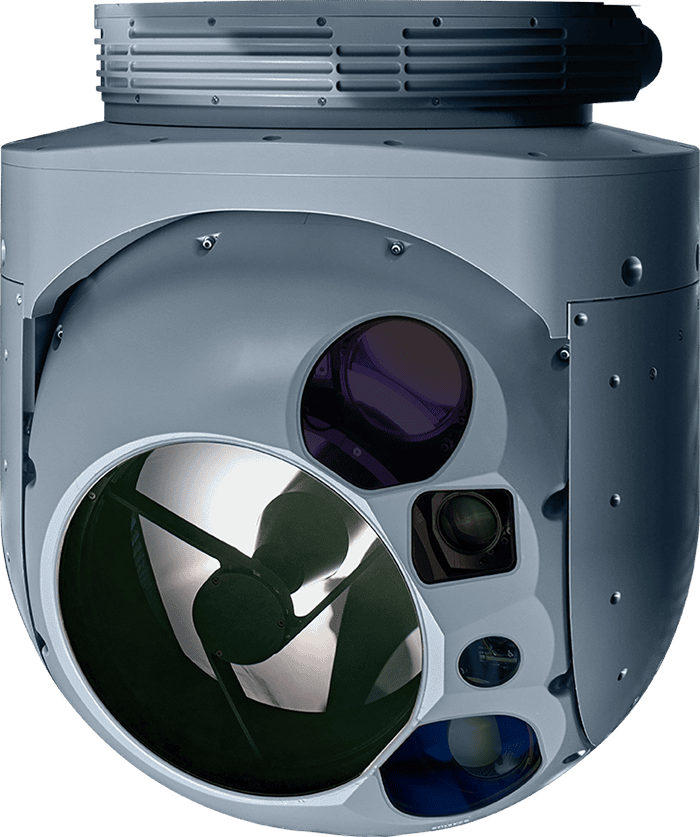

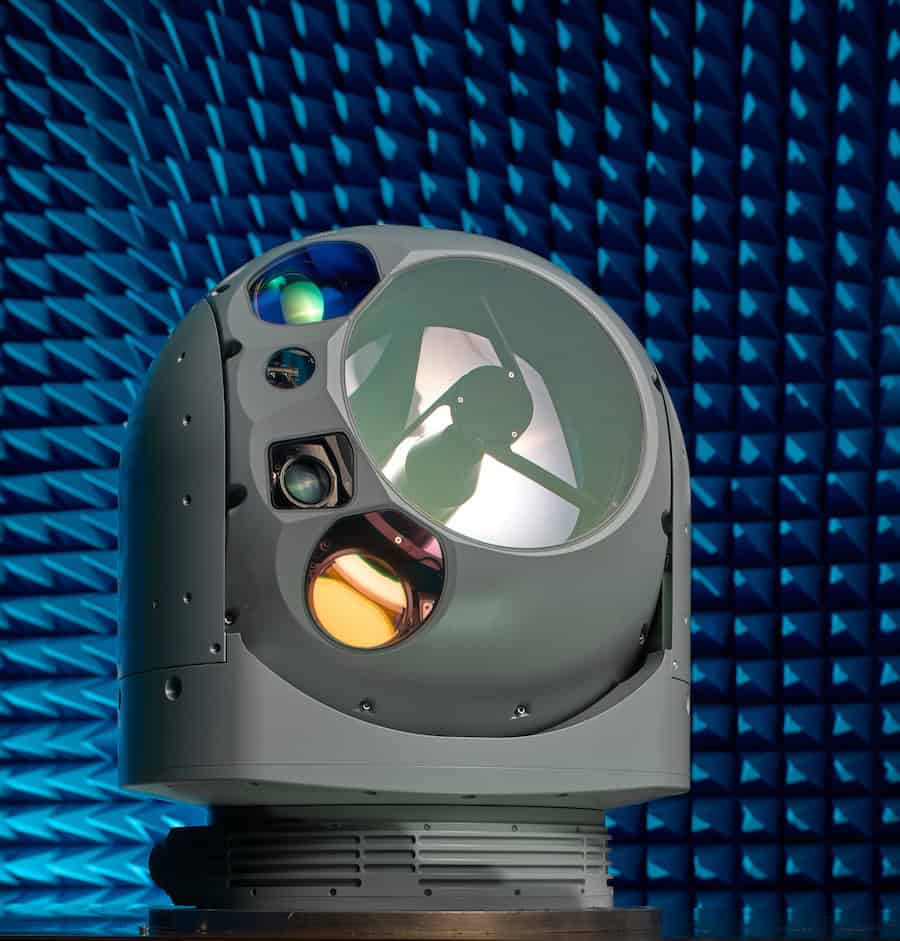

ASELFLIR 500 is a 15-inch gimballed electro-optical reconnaissance, surveillance and targeting system for fixed-wing aerial platforms including UAVs and manned aircraft. The system is designed around a 220 mm common aperture and provides high-resolution imaging and laser functions in a compact gimballed payload.
The payload integrates HD IR, HD daytime and HD SWIR cameras with laser range finding, target designation and laser pointer functions. It also offers AI image processing, internal boresight, all-digital video output, multi-target tracking, geolocation and moving-target course and speed determination.
ASELFLIR 500 is designed for operation at low temperatures and high altitudes, providing stabilized long-range ISR and targeting capabilities in demanding conditions.
Specifications:
| Primary mirror diameter | 220 mm |
| HD IR camera | 1280 x 1024, 3-5 µm MWIR |
| HD IR horizontal FOV | 1.3, 4.3, 7.7, 13.9 and 25 degrees |
| HD Day TV | 1920 x 1080 |
| HD SWIR | 1280 x 1024 |
| Field of regard | Azimuth 360 degrees continuous; elevation +90 degrees to -90 degrees |
| Laser range finder / target designator | 1064 nm, up to 35 km, STANAG 3733 Ed.3 |
| Laser pointer | 808 nm, NIR/SWIR compatible with NVGs |
| Communication | RS-422, MIL-STD-1553B |
| Video | 4 x SMPTE-292M HD-SDI, 1920 x 1080p |
| Power | 28 VDC |
| Size | Width 480 mm; height 520 mm |
| Weight | 54 kg +/-5% |
| Operating temperature | -40 degrees C to +52 degrees C |
| Storage temperature | -55 degrees C to +70 degrees C |
