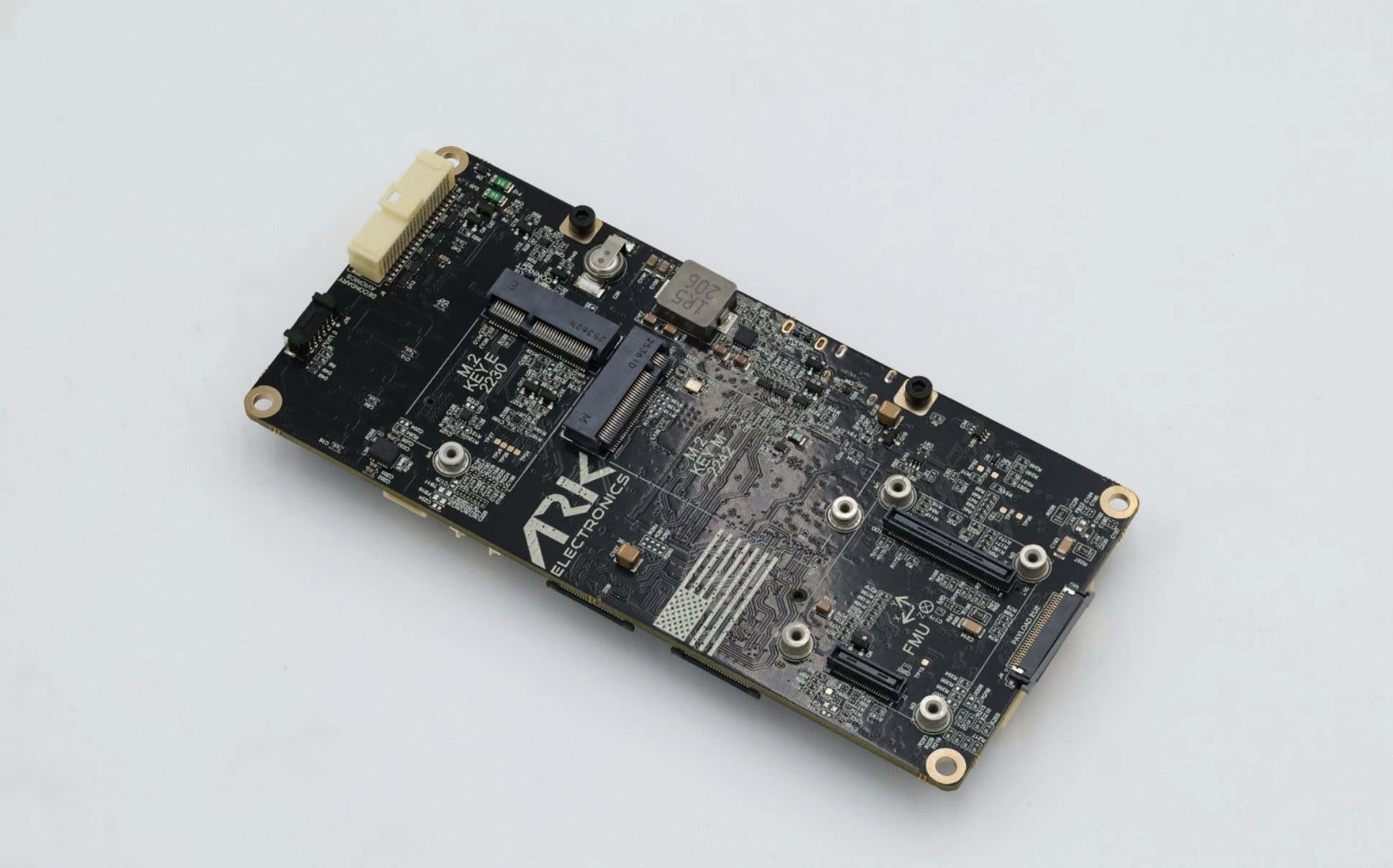

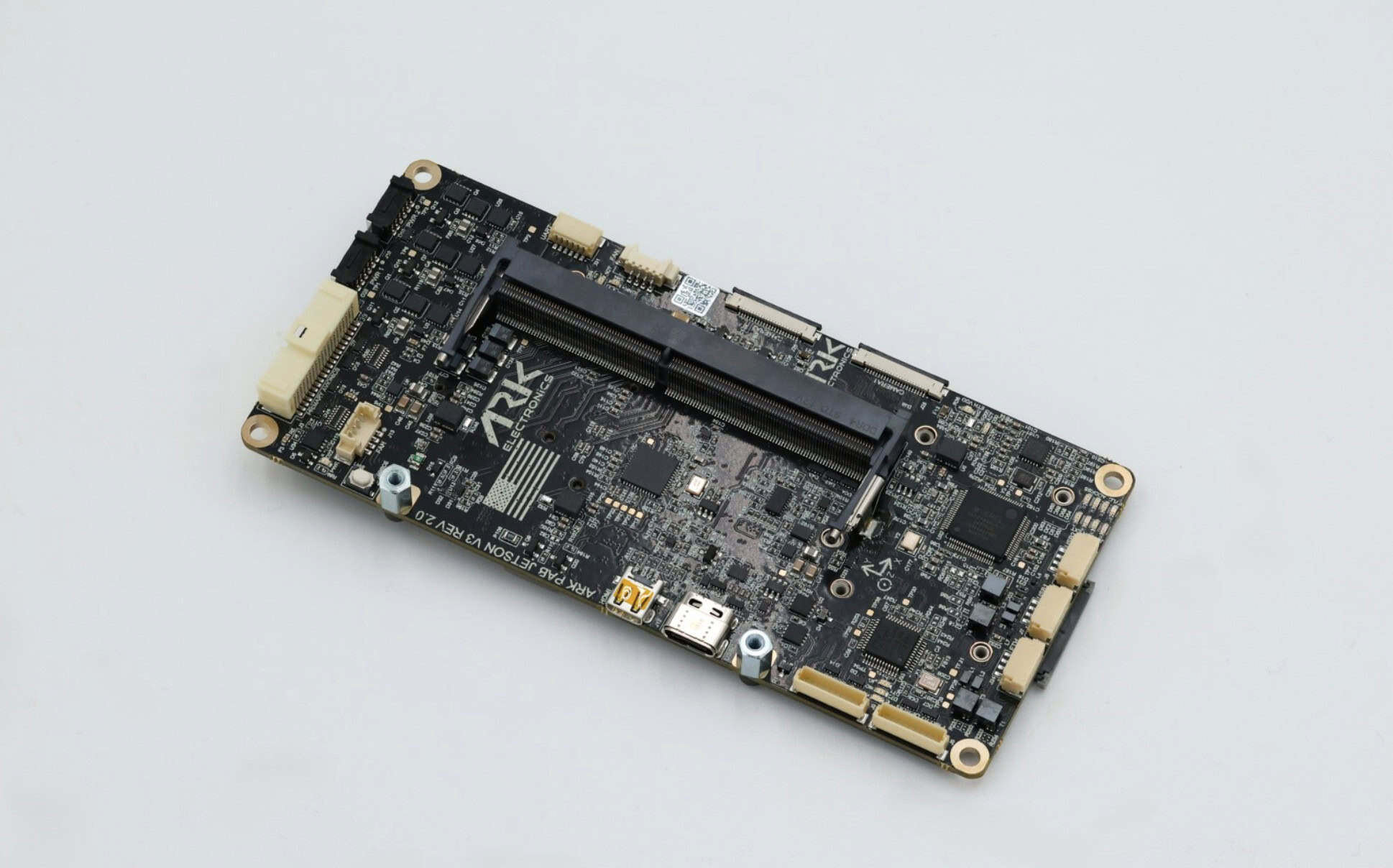

The ARK Jetson PAB V3 is a Pixhawk Autopilot Bus (PAB) Carrier designed to integrate NVIDIA Jetson Orin NX/Nano computing capabilities with compatible Pixhawk flight controllers. Based on the open-source PAB specification, the carrier provides a standardized hardware platform that supports integration with PAB flight controllers such as the ARKV6X, enabling flexible avionics architectures for unmanned and autonomous systems.
Built with multiple connectivity options, the ARK Jetson PAB V3 incorporates Jetson Orin NX/Nano interfaces, including CSI camera connections, USB, Ethernet, M.2 expansion, and Micro HDMI. The carrier features redundant digital power module inputs, avionics connectors, a Pixhawk Payload Bus interface, onboard Ethernet switching, and dedicated debug ports. Manufactured in the USA and NDAA compliant, the board is designed for defense and professional autonomous applications requiring compact computing and flight control integration.
