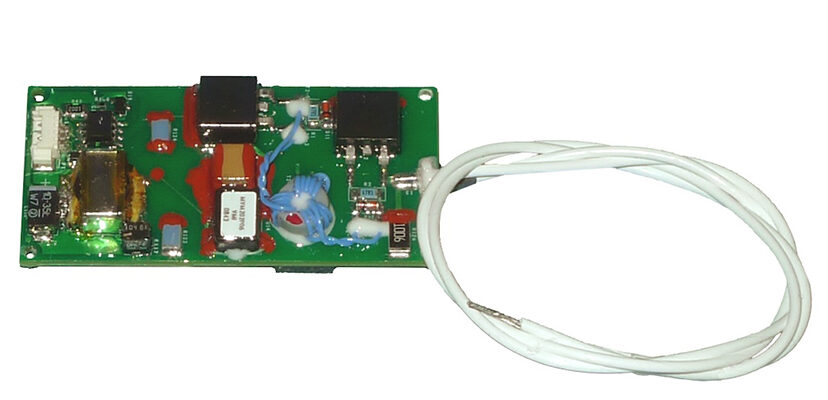

Pockels Cell Drivers

AMI’s MOSFET Pockels cell drivers offer excellent noise immunity and a smooth output waveform, delivering reliable high-voltage pulsing in a compact surface mount form factor that is ideal for military and defense system integrators and OEMs.

The drivers include an internal high-voltage power supply and provide a monitor to observe the high-voltage output amplitude prior to the pulse. All units can be customized to suit specific application requirements.

823B 825B 8261C 8212A
Max Output Voltage: 3.2 kV -3.5 kV 5.0 kV 2.0 kV
Input Voltage: +12 VDC +15 VDC +24 VDC +24 VDC
Risetime: ≤ 30 ns ≤ 30 ns ≤ 25 ns ≤ 7 ns
Recovery: ≤ 8 ms ≤150 µs ≤ 25 ns ≤ 9.5 ns
Repetition Rate: ≤ 30 Hz ≤ 100 Hz 45 kHz 2 MHz
