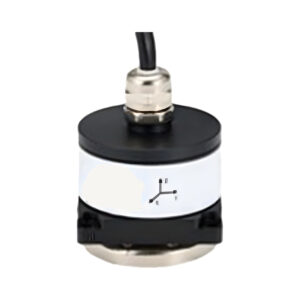

Micro-Magic Inc.‘s ACM1000 Vibration Sensor is a high-precision digital MEMS sensor designed for real-time vibration monitoring in demanding industrial and defense environments.
Built to support intelligent equipment status analysis, the ACM1000 enables early fault detection, helping to ensure safety, efficiency, and reliability across critical systems.
This compact, low-power sensor integrates a high-frequency, low-drift three-axis MEMS sensor capable of measuring multiple parameters simultaneously, including vibration velocity (0–50mm/s), angle (0–180°), displacement (0–30mm), frequency (1–100Hz), and three-axis temperature. With industry-leading precision, it delivers measurement accuracies as tight as ±1mm/s for velocity and ±0.001mm for displacement.
Engineered for harsh conditions, the ACM1000 features a wide operating temperature range (-40°C to +85°C), can withstand impacts up to 20,000g, and resists 10grms of vibration. Its digital filtering technology minimizes noise, while its robust design ensures a mean time between failures of over 45,000 hours.
With support for multiple communication protocols (RS232/RS485/TTL/RS422/CAN) and compatibility with Modbus, the ACM1000 offers flexible integration. A built-in magnetic base and screw mounts allow for fast and secure installation.
Whether deployed on rotating machinery, structural systems, or mobile platforms, the ACM1000 provides a “smart eye” for proactive maintenance and industrial intelligence.
