Vulture Power Scavenger
The Vulture Power Scavenger is designed to be powered by any DC source from 5 to 46V, delivering up to 5A at 16.8V for a range of field devices. Sitting in-line between wearable batteries and the rest of the system, it uses scavenged power to offset discharging from the system battery, and will also charge the battery if excess power is available

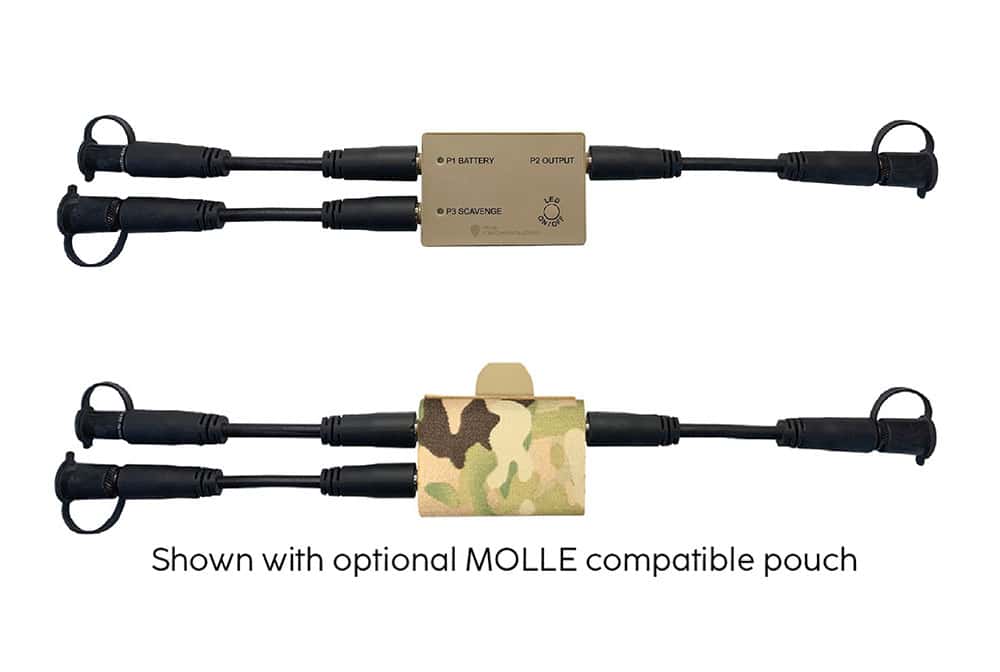

The unit is produced with program-specific connectors as standard, and can be provided with custom connector requirements. It is designed to seamlessly integrate into the US Army Nett Warrior System, and can be easily mounted to a MOLLE via the included 2x1 pouch.
Specifications:
Dimensions (L x W x H): | 1.80 x 2.57 x 0.50” |
Weight: |
0.245 lb (module) 0.310 lb (with pouch) |
Input Voltage: | 5 - 46 VDC |
Output Voltage: | 10 – 20 VDC |
Battery Voltage Range: | 10 – 20 VDC |
Standard Connectors: |
P1 - Glenair 807-309-06ZNU6-6PY P2 - Glenair 807-348-01ZNU6-6SY P3 - Glenair 804-003-01ZNU6-7S |
