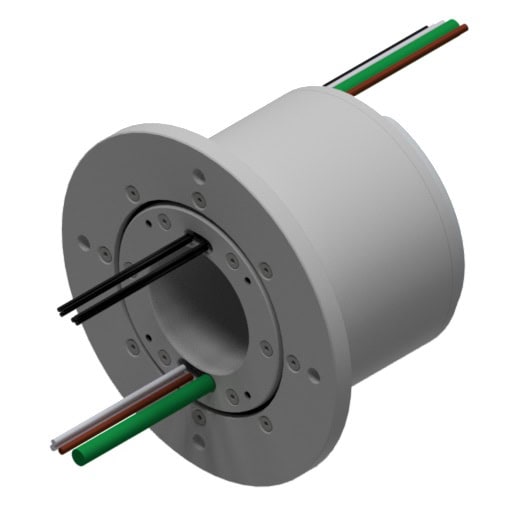

26-Way Slip Ring
The 26-Way Slip Ring from Venturetec Rotating Systems transfers power, data, video, and coaxial signals across rotating interfaces. The assembly includes one 100Base-T Ethernet channel, one video channel, two 75 Ohm coaxial channels, two 5 A / 28 V circuits, and three 10 A / 28 V circuits, supporting multiple transmission requirements through a single rotary electrical connection.
Rated to IP40, the slip ring operates in temperatures from -20°C to +40°C and supports rotational speeds of up to 30 RPM. It is suitable for installation altitudes of up to 2,000 m and has a maximum torque of 2 Nm, with an approximate weight of 120 kg.
