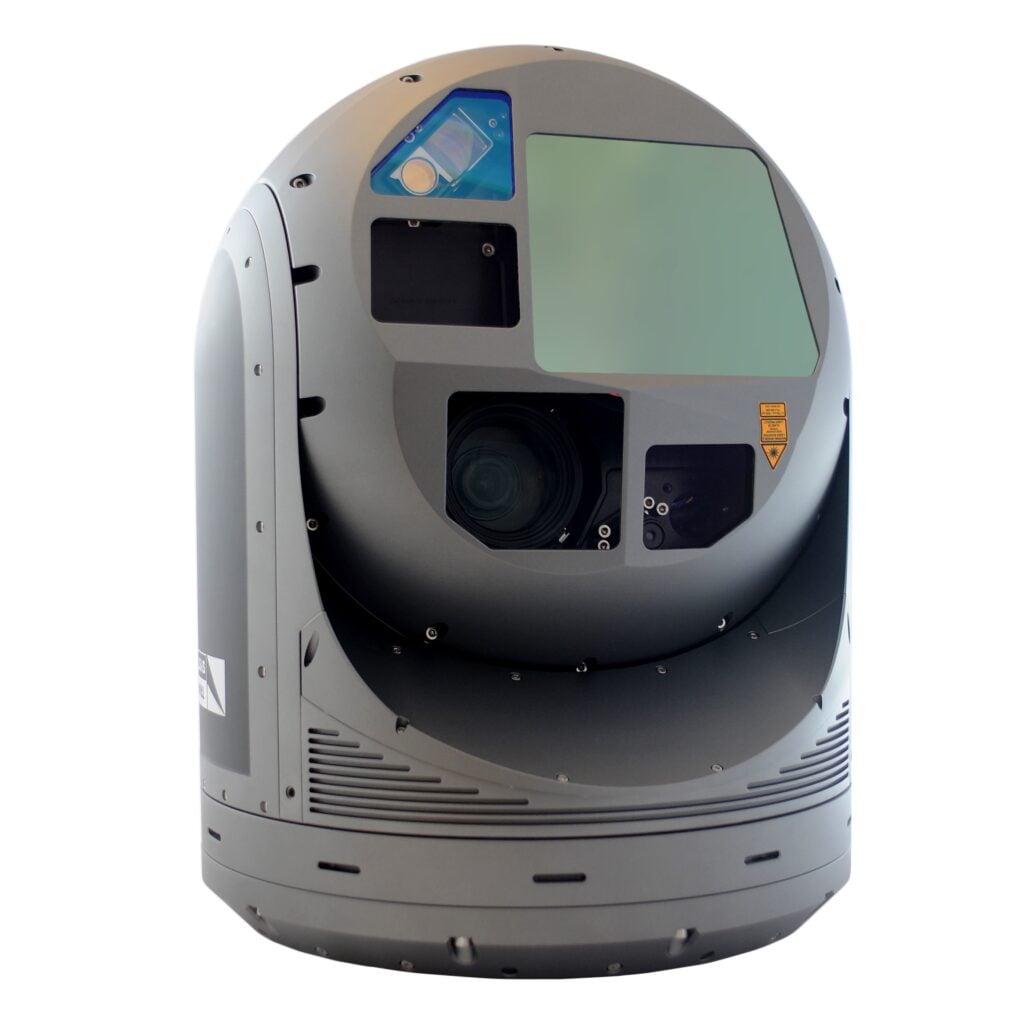

The TrakkaCam® TC-375M is a long-range multispectral EO/IR surveillance system engineered for maritime ISR, vessel tracking, coastal monitoring, and shipborne security operations. MIL-tested for harsh marine environments, the system combines advanced EO/IR imaging sensors with sophisticated onboard image processing to maintain visibility through fog, haze, sea spray, low-light conditions, and complete darkness. Designed within a compact single-LRU architecture, the TC-375M delivers full HD 1080p imaging capability while supporting extended-range maritime surveillance and target tracking operations.
An advanced high-speed digital video engine is embedded directly within the stabilized gimbal, enabling integrated Moving Target Indicator (MTI) functionality with Drone Detection Mode to improve detection performance and reduce operator workload during complex maritime operations. The system supports seamless interoperability with moving maps, maritime radar systems, AIS interfaces, and secure data links through embedded H.264/H.265 video streaming with MISB 0601.7-compliant metadata over Ethernet. High-performance 4-axis gyro stabilization with integrated passive isolation ensures stable imagery in rough sea conditions, while integrated IMU/INS with dual GPS capability supports geo-location and maritime navigation functionality across patrol vessels and coastal surveillance platforms.
Specifications:
| Diameter: | 375mm (14.7”) |
| Weight: | <45 kg (99lb) |
| Input Voltage: | 22-36V wide-range input voltage |
| Power: | <280W average (<350W max) |
| Azimuth: | Continuous azimuth |
| Elevation: | -20° to +120° elevation |
| Thermal Imager: | 3-5μm MWIR array 1280 x 1024 (15μm) *Optional 1280x720 (10um) Fields of View 38° to 1.29° *Optional 15° to 1.25° |
| Color HDTV (Spotter): | HD CMOS Global Shutter 3.2 MPixels Fields of View 24° to 0.33° |
| Multi-Spectral SWIR (Optional): | InGaAs Photodiode Array 640 x 512 (SD) or 1280 x 1024 (HD) Fields of View 47° to 7.0° (SD) or 28.7° to 2.9° (HD) |
| Low Light HD Camera (Optional): | HD CMOS Global Shutter 2.37 MPixels Fields of View 35° to 1.3° |
