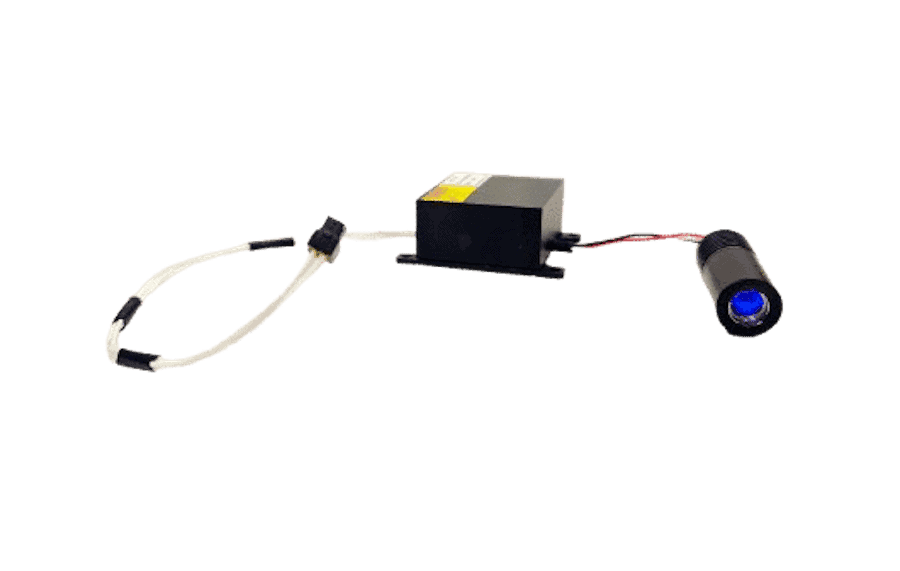

LPT-110
The LPT-110 is a miniature high-power NIR (near-infrared) laser designed for manned and unmanned aircraft, with a maximum altitude of 40,000 feet. It features an anodized aircraft aluminum and stainless steel construction, and is tested to MIL-STD-810F standards for vibration.
With a small and lightweight footprint, it is ideal for integration into SWaP-limited OEM equipment such as gyro-stabilized gimbal payloads.
Specifications:
| Dimensions: |
Optical Unit D x L: 14.7 x 40.1 mm Control Unit H x L x W: 20 x 45 x 42.4 mm |
| Weight: |
Optical Unit: 20g Control Unit: 25g |
| Power: | 18-36VDC |
| Wavelength: | 860nm |
| Optical Output Power: | Up To 2.5W CW (Class IV) |
| Operational Modes: | CW, Flash |
| Pulse Rate: | Up to 5Hz |
| Beam Shape: | Elliptical |
