AIRLink Telemetry from SAGLAMTEK provides a private broadband communications channel using 2×2 MIMO technology and AES-256 encryption. The standard configuration operates across 2402–2477 MHz with selectable 4 or 8 MHz bandwidth, supporting data throughput up to 25 Mbps and latency below 100 ms. With output power reaching 30 dBm / 1 W, the system is specified for direct line-of-sight links at distances up to 20 km and operation from -40°C to +50°C.

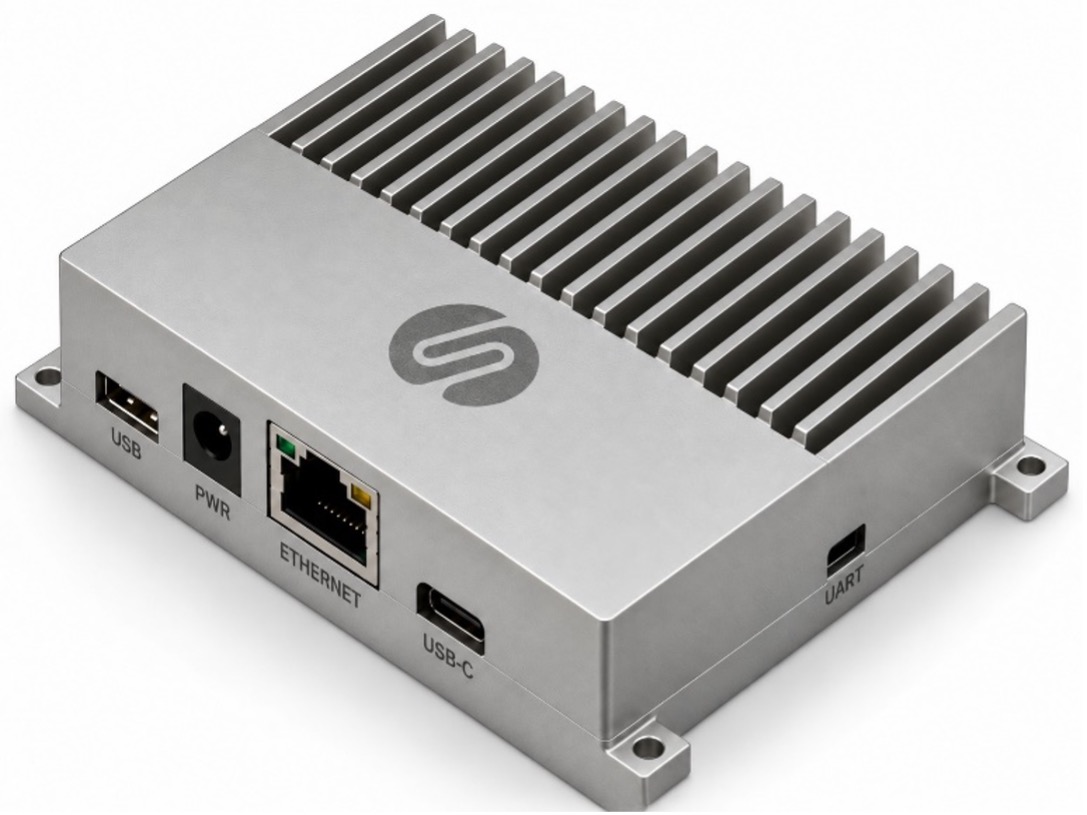

Separate air and ground modules enable installation across different platform roles. The 50 g airborne module measures 50 × 50 × 30 mm and incorporates Ethernet connectivity, while the 137 g ground unit provides Ethernet, USB, UART, and power interfaces. SAGLAMTEK also offers 900 MHz, 2300 MHz, and 2500 MHz variants, output choices of 1 W, 5 W, or 20 W for range extension, and panel, blade, or high-gain omnidirectional antennas.
| Technology: | 2×2 MIMO |
| Frequency: | 2402–2477 MHz |
| Power: | Up to 30 dBm / 1 W |
| Bandwidth: | 4 / 8 MHz |
| Encryption: | AES-256 |
| Data rate: | 25 Mbps |
| Latency: | <100 ms |
| Range: | 20 km |
| Visibility: | Direct, line of sight |
| Ambient temperature: | -40 to +50°C |
| Air module power input: | 5 VDC, 2 A min |
| Air module antennas: | 2× SMA omni, 3 dBi, 50 cm cable |
| Air module interfaces: | Ethernet, cooling fan output |
| Air module dimensions: | 50 × 50 × 30 mm |
| Air module weight: | 50 g |
| Ground module power input: | 7–40 VDC, 1 A min |
| Ground module antennas: | 2× RP-SMA, 5 dBi |
| Ground module interfaces: | Ethernet, USB, UART, power supply |
| Ground module dimensions: | 82 × 71 × 21 mm |
| Ground module weight: | 137 g |
| Alternative frequencies: | 900 MHz, 2300 MHz, 2500 MHz |
| Alternative power outputs: | 1 W, 5 W, 20 W |
| Antenna options: | Panel, blade, high-gain omnidirectional |
