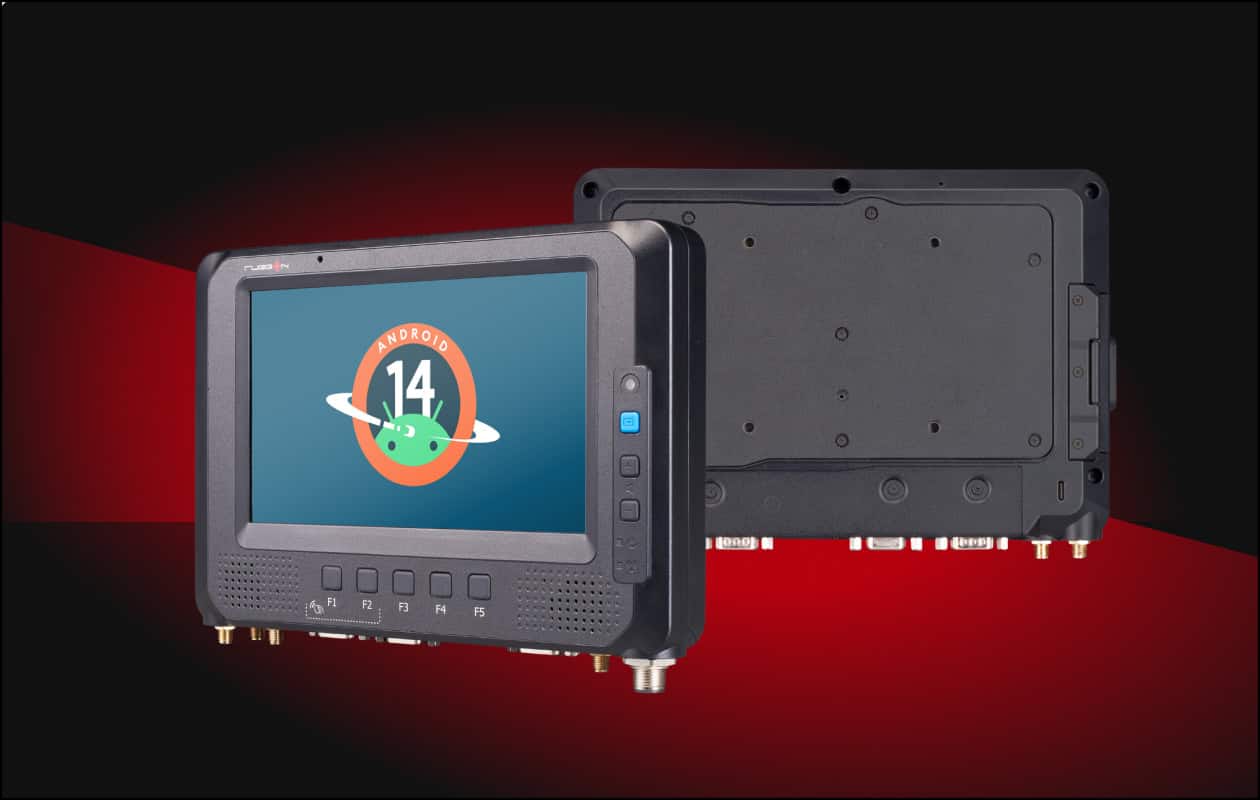

VIKING II 07A
The VIKING II 07A is an advanced vehicle mount computer that is ideal for defense platforms and robotics. Based around Android 14 and the Qualcomm® Snapdragon™ 6490 Octa-Core CPU, it delivers enhanced compute power for complex fleet management and data processing applications.
The versatile unit offers a range of wireless communication options, including 5G and SATCOM, ensuring uninterrupted communication even in remote locations. It is also equipped with RTK-capable GNSS and dead reckoning capabilities for reliable navigation and tracking under GNSS-denied conditions.
| Dimensions: | 220 x 152 x 41 mm |
| Weight: | 1.25 kg |
| Power: | 9 – 36 VDC |
| System: | Qualcomm® Snapdragon™ 6490 Qcta-Core, 2.7GHz 8GB LPDDR4x RAM 128GB UFS storage Built-in 6-axis IMU sensors(Accelerometer + Gyroscope), 2 x speaker OS : Android 14, Google Mobile Services (GMS) certified |
| Display: | 7” TFT LCD WSVGA (1024 x 600), 500 nits brightness Capacitive multi touch (PCT) Supports auto-dimming |
| Communications: | Wi-Fi 6E (IEEE 802.11ax) Bluetooth V5.2 GNSS (GPS / GLONASS / BeiDou/ Optional dead-reckoning, or RTK supported) Optional 4G LTE/ HSPA + / 5G NFC Optional Satellite |
| I/O: | RS-232 with power supported x 1 RS-232 (RX, TX) x 1, RS-422 x 1, RS-485 x 1 Gigabit Ethernet x 1 USB 2.0 x 2 USB 3.1 type C x 1 (DisplayPort Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 CAN bus/ optional SAE J1939 x 1 DI x 2, DO x 2 Audio headset jack x 1 Optional CVBS input x 2 |
