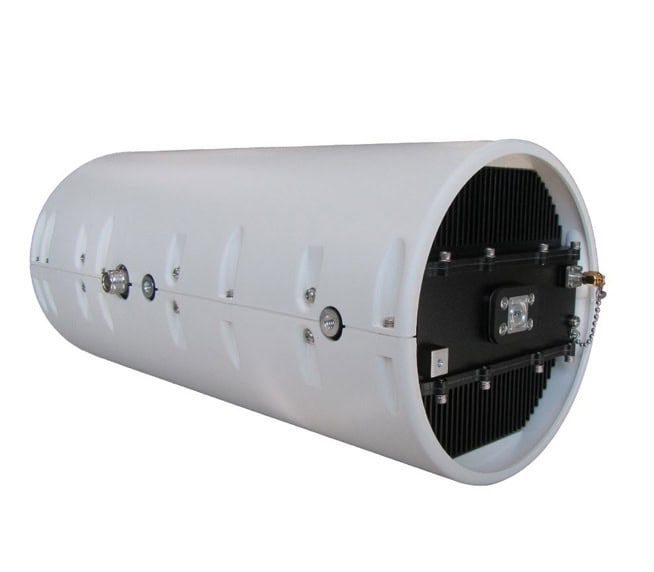

The Ka-Band TITAN Block Upconverter is a wideband RF conversion system supporting selectable operation across 27.5 to 31.0 GHz. It is engineered to deliver 100 W linear output power while maintaining high conversion efficiency, supporting high data rate satellite communications in constrained platform environments. The unit incorporates an integrated AC-DC power supply and supports multiple monitor and control interfaces, including RS-485, RS-232, and optional Ethernet connectivity.
Designed for direct mounting on antenna structures such as boom arms, the system reduces RF path losses through close-coupled integration. It operates with a compact 22 lb form factor and is built for sustained performance in harsh operational conditions, including wide temperature variation and high humidity exposure. Compliance with MIL-STD-188-164 requirements supports deployment in defense-oriented SATCOM terminal architectures.
Specifications:
| Dimensions: | 15.25 x 7.0 x 7.0 in (388 x 178 x 178 mm) |
| Weight: | 22 lb (10 kg) |
| Output Power: | 100 W linear (PLIN), 200 W rated (PRATED nominal) |
| Power Consumption: | 940 W (PLIN), up to 1500 W rated |
| Operating Temperature: | -40°C to +55°C |
| Prime Power: | 100–264 VAC, 50–60 Hz |
| Maximum Input Power: | +10 dBm |
| Frequency (Selectable): | Band 1: 27.50–28.50 Band 2: 28.25–29.25 Band 3: 29.00–30.00 Band 4: 30.00–31.00 |
| LO Frequency: | Band 1: 26.55 GHz Band 2: 27.30 GHz Band 3: 28.05 GHz Band 4: 29.00 GHz |
