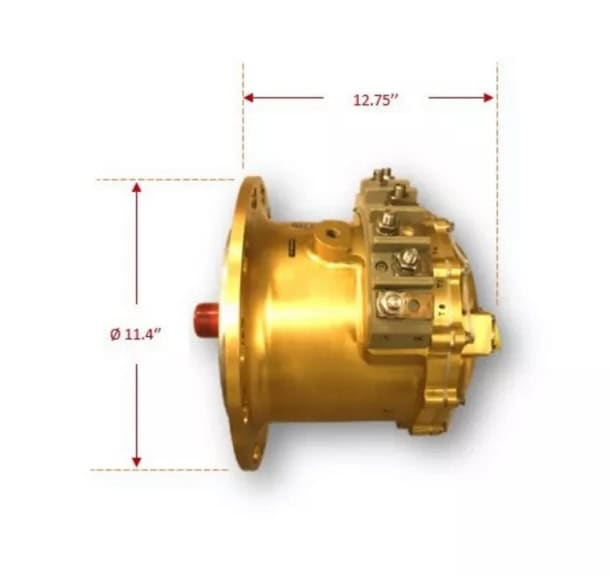

250kW Generator
Honeywell Aerospace's 250kW Generator offers the highest power density in the industry, weighing just 75 lbs with a compact 12 x 13 inch footprint. The versatile unit can be run with diesel or gas turbine engines, and is ideal for a variety of aircraft electrical power needs as well as advanced applications such as directed energy weapons systems and hybrid-electric propulsion.
The highly efficient generator is capable of outputting up to 230 VAC at 1400 Hz, and 300, 600 or 800 VDC.
| Size: | Approx 12 x 13 in |
| Weight: |
Generator – 75 lbs AC Power System (generator + GCU) – 80 lbs DC Power System (AC system + rectifier) – 90 lbs |
| Output: |
Up to 230 VAC at 1400 Hz 300, 600 or 800 VDC |
| Efficiency: | 95% at rated load |
| Speed: | 15,000 – 21,000 RPM |
