AIRCAT Lynx
The AIRCAT Lynx is a high-speed vessel that is designed to perform a wide range of demanding military and civilian maritime roles, including search and rescue, law enforcement, counter-piracy and -terrorism, vessel traffic monitoring, and pollution response. It is an ideal solution for building a cost-effective fleet of multi-role mission-critical capabilities.

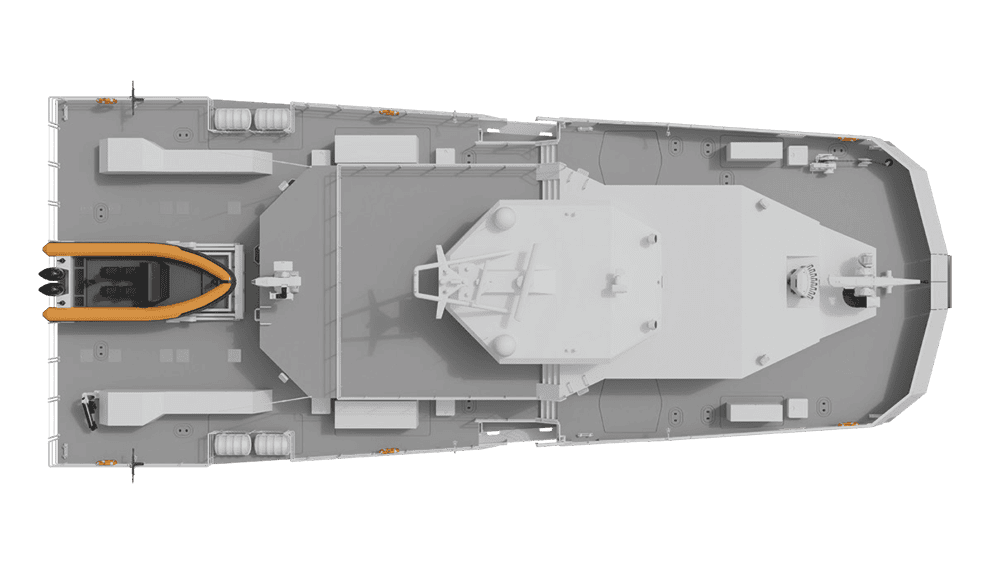

The highly stable and adaptable vessel can accommodate a variety of mission payloads on its aft deck, including standard ISO 10ft and 12ft containers and modular skid packages, which can host vessel-launched RHIBs, environmental monitoring and scientific survey equipment, ROV and UUV LARS (launch and recovery systems), and more.
Specifications:
| Dimensions: | Length 36 m (118 ft) Beam 14 m (45.9 ft) Draft 0.8 m (2.6 ft) On Cushion / 2.4 m (7.8 ft) Off Cushion Height Overall 13.1 m (43 ft) |
| Displacement: | ~ 170 mt (167.3 lt) |
| Main Engines: | 4 x MTU 16V2000 M72 |
| Max Continuous Power (ISO Conditions): | 4 x 1440 kW @ 2250 rpm |
| Speed: | Max 47 – 50 kts loadout dependent Cruise 38 kts |
| Range: | 1,000 nm @ 38 kts |
| Sea Keeping / Stability: | Sea State 3 Full Speed Sea State 4 Reduced Speed Sea State 5 Restricted Operations Sea State 6 Survivable |
| Crew: | 4 – 6 depending on mission requirements |
| Aft Mission Payload Deck: | 55 sq m 20 ton capacity 1.745 mt integrated stores crane |
