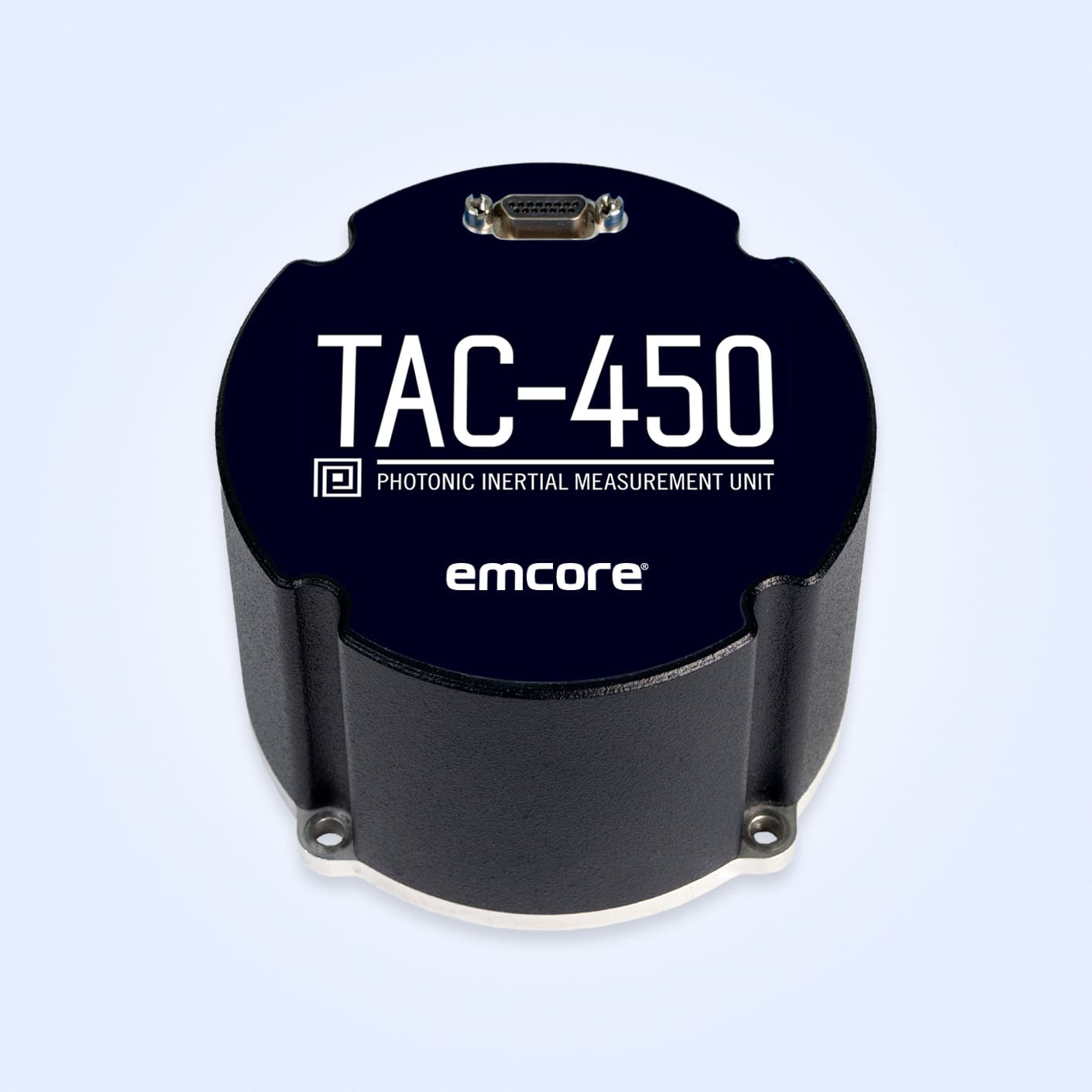

TAC-450-360
The TAC-450-360 IMU from EMCORE is engineered to meet the rigorous demands of modern military applications. Leveraging photonic integrated chip (PIC) technology, this non-ITAR unit delivers impressive performance for both autonomous and manned platforms.
Key Features:
- High Precision: Equipped with inertial-grade accelerometers and tri-axis magnetometers, the TAC-450-360 ensures exceptional accuracy for mission-critical operations.
- Superior Performance: Designed for scenarios requiring high bandwidth, low latency, and minimal drift, ensuring optimal reliability in the field.
- Flexible Integration: Offers programmable message outputs and adaptable interface settings for seamless integration into various systems.
- Enhanced SWaP: Improved Size, Weight, and Power (SWaP) metrics combined with robust performance and survivability make the TAC-450-360 a superior choice for defense applications.
| 10g | 16g | 30g | 100g | |
| Dimensions (D x H) | 88.9 x 63.5 mm (3.5 x 2.5”) |
88.9 x 63.5 mm (3.5 x 2.5”) |
88.9 x 63.5 mm (3.5 x 2.5”) |
88.9 x 63.5 mm (3.5 x 2.5”) |
| Weight | 0.7 kg (1.54 lbs) | 0.7 kg (1.54 lbs) | 0.7 kg (1.54 lbs) | 0.7 kg (1.54 lbs) |
| Gyro Bias Instability | ≤0.05°/hr, 1σ (typical) ≤0.1°/hr, 1σ (max) |
≤0.05°/hr, 1σ (typical) ≤0.1°/hr, 1σ (max) |
≤0.05°/hr, 1σ (typical) ≤0.1°/hr, 1σ (max) |
≤0.05°/hr, 1σ (typical) ≤0.1°/hr, 1σ (max) |
| ARW/Gyro Noise | ≤0.012°/√hr (≤0.7°/hr/√Hz) |
≤0.012°/√hr (≤0.7°/hr/√Hz) |
≤0.012°/√hr (≤0.7°/hr/√Hz) |
≤0.012°/√hr (≤0.7°/hr/√Hz) |
| Accelerometer Bias | 15 μg, 1σ | 24 μg, 1σ | 45 μg, 1σ | 150 μg, 1σ |
