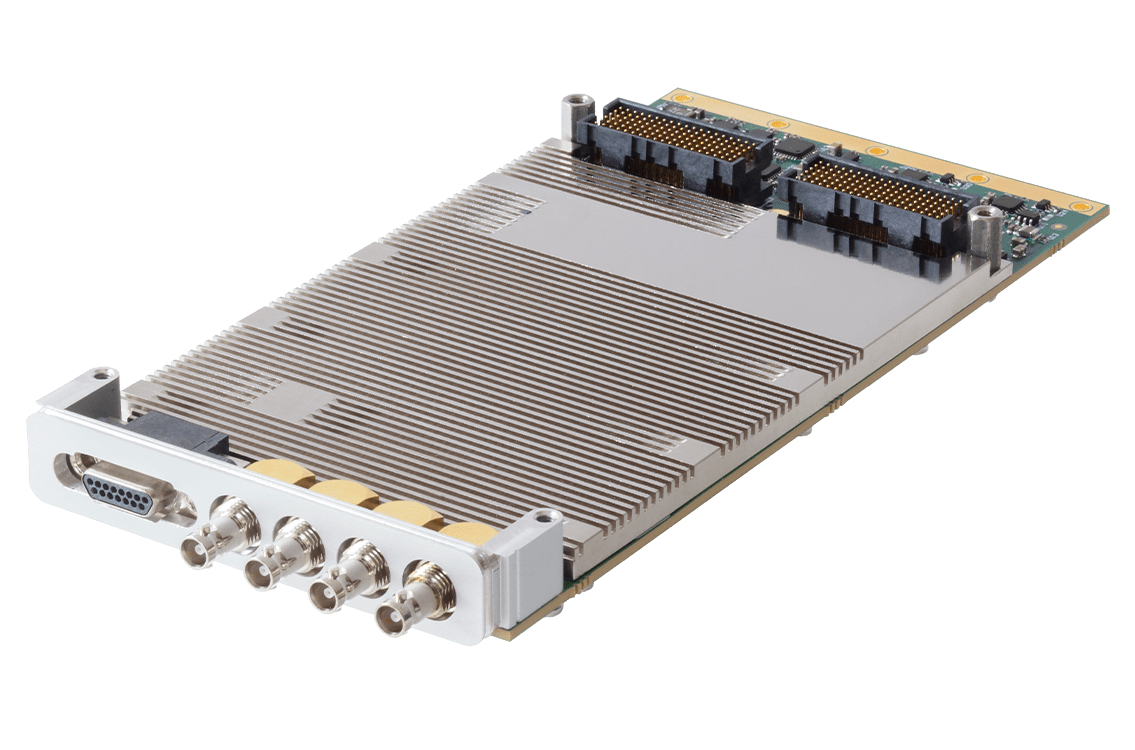

The Condor NVP2009AxX is a high-performance graphics card based on the NVIDIA Quadro P2000 GPU, supporting both legacy and newer digital/analog video output formats as well as CUDA and OpenCL based GPGPU computing, AI processing, deep learning, and H.265 (HEVC) / H.264 encoding & decoding.
The card supports up to four video outputs with customizable output combinations. The rear XMC pin-out is compatible with VPX systems that follow VITA 46.9 x12d+x8d+24s, and 3G-SDI and DisplayPort video outputs are available for interfacing with modern digital equipment. The analog CVBS (NTSC/PAL) and VGA (STANAG, RS-170, RS-343) video outputs can be configured to support single-ended or differential signalling.
The Condor NVP2009AxX is ideal for GPGPU applications such as C5ISR, situational awareness, signal intelligence (SIGINT), machine learning and autonomy. NVIDIA NVENC (HW encode) and NVDEC (HW decode) can be used to hardware encode or decode video on the GPU. In addition, raw video data can be sent over PCIe directly to GPU memory for analysis/processing using NVIDIA GPUDirect RDMA. The card is available in conduction-cooled or air-cooled variants.
