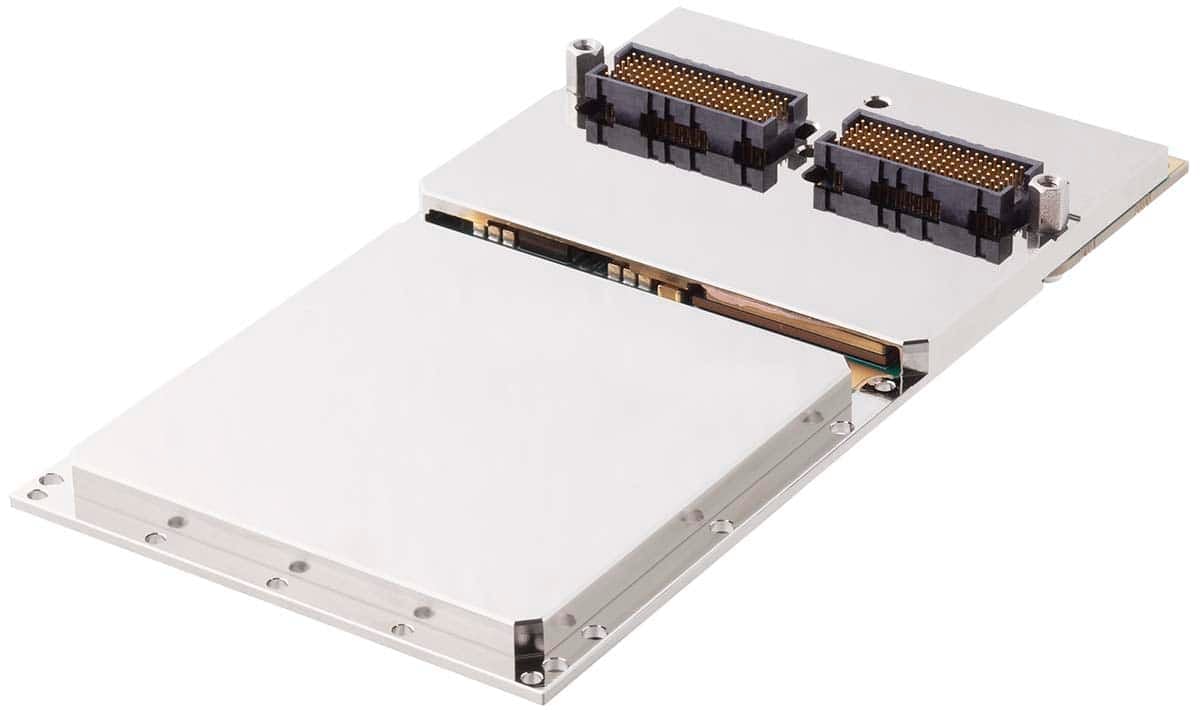

The Condor NVA2104AxX is a rugged high-performance XMC graphics card that captures both analog & digital raw frame-by-frame audio/video and metadata with exceptionally low latency. This card is designed with the NVIDIA® Ampere A2000 GPU supporting 8 GB GDDR6 graphics memory with Error Correction Code (ECC), and features 2,560 CUDA Cores, 80 Tensor Cores, and 20 RT Cores for accelerated performance in neural network training and inferencing functions. This all-in-one solution provides the ability to simultaneously capture, process, display, encode, decode, and stream video data while supporting CUDA and OpenCL based GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding.
The Condor NVA2104AxX card is very I/O intensive as it supports four 3G-SDI inputs, two CVBS (NTSC/PAL/SECAM), and two stereo line in audio inputs, as well as four 3G-SDI outputs. SDI VANC KLV metadata insertion and extraction is also supported. This innovative video capture and GPGPU card is designed for applications that combine legacy video with newer digital video formats in high-end surveillance applications. The video capture (frame grabber) auto detects the input resolution and then transfers raw video frames directly to GPU memory or host memory using NVIDIA GPUDirectâ„¢ RDMA. In GPU memory, the applications can do processing such as image analysis, image enhancement, 360 degree video stitching, sensor fusion and target detection, using GPGPU (CUDA / OpenCL), all with very low latency.
