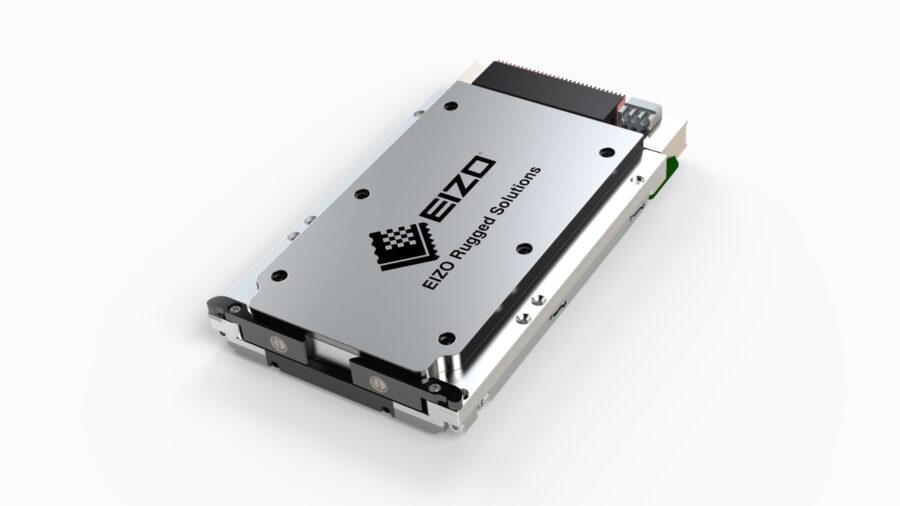

The Condor™ GR6S-AD2000 is a rugged 3U OpenVPX video capture and GPGPU processing card built for mission-critical C5ISR and high-performance embedded computing (HPEC) applications. Designed with the NVIDIA RTX™ 2000 Ada GPU, the Condor GR6S-AD2000 is an ideal solution for ultra-low-latency video capture and distribution in sensor fusion, object detection, and automated target recognition (ATR) applications.
The Condor GR6S-AD2000 3U VPX video capture solution supports up to six 12G-SDI video streams, including four dedicated inputs and two dedicated outputs. This solution has an integrated PCI Express gen 4 switch, enabling high-speed data transfer and flexible configuration of PCIe lanes. This flexibility allows the card to adapt to different backplanes, whether point-to-point or switched, ensuring compatibility and optimal performance.
| Graphics Processor | NVIDIA RTX™ 2000 (Ada Lovelace Architecture) |
| Graphics Memory | 8 GB GDDR6 with Error Correction Code 128-bit Memory Interface 256 GB/s Memory Bandwidth |
| GPGPU Capabilities | 3072 CUDA Cores. 96 Tensor Cores. 24 RT Cores. Up to 14.5 TFLOPS FP32 Single Floating Point Performance Supports CUDA, CUDA-X, OpenCLTM and Shader Model 6.7 H.265 (HEVC) / H.264 (MPEG4/AVC) Hardware Encode & Decode AV1 Encode & Decode NVIDIA GPUDirect® RDMA, NVENC, NVDEC |
| Video I/O | (4x) Up to 12G-SDI Inputs (2x) Up to 12G-SDI Outputs |
| PCIe Switch | Switchtec™ PFX PCIe® Gen 4 Switch Industrial Temperature |
| SOSA Profiles |
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0 SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0 |
