CRPA Antenna (Controlled Reception Pattern Antenna)

CRPA antennas, or Controlled Reception Pattern Antennas, are advanced technologies designed to enhance the performance and reliability of defense systems. Utilizing multiple antenna elements, CRPA technology mitigates the effects of jamming and interference, ensuring robust and secure signal reception. Unlike Fixed Reception Pattern Antennas (FRPA), CRPA antennas dynamically adjust their reception patterns, making them essential for modern military applications where anti-jam capabilities are crucial. This innovation in antenna design significantly improves operational effectiveness in contested environments, providing a critical advantage in defense communications.
Overview CRPA Antenna (Controlled Reception Pattern Antenna)
By Staff Writer Last updated: December 3rd, 2024

Controlled reception pattern antenna (CRPA) technology is used to protect GNSS receivers, especially those used in defense applications, against threats such as jamming, spoofing, and other forms of interference. CRPAs are a form of beam-steering antenna.

CRPA Antenna

Anti-Jam Solutions for Military and Defense Applications

CRPA systems are a critical technology for defense operations that rely on Global Navigation Satellite System (GNSS) signals, such as GPS, for positioning, navigation, and timing.

CRPA antennas enhance the resilience of these signals by providing anti-jamming capabilities, ensuring uninterrupted and accurate data even in challenging environments where signal interference is prevalent. Unlike conventional Fixed Reception Pattern Antennas (FRPA), CRPA antennas can actively combat attempts to jam or interfere with GNSS signals, offering robust protection against sophisticated electronic warfare tactics.

What is CRPA?

A CRPA antenna is a specialized form of GNSS antenna designed to mitigate interference from electronic jamming. It uses multiple antenna elements combined with digital signal processing to dynamically adjust the gain pattern and null out the interference. In contrast to FRPA, which maintains a fixed reception pattern, CRPA systems can modify their reception pattern in real-time, effectively reducing the impact of jamming signals coming from specific directions.

By integrating a CRPA antenna with advanced signal processing algorithms, the antenna system identifies the direction of interference and adjusts its gain accordingly, blocking the jamming signals while continuing to receive the desired GPS or other GNSS signals. This is essential for mission-critical defense systems that depend on uninterrupted, accurate location data.

CRPA vs FRPA Antenna: Key Differences

While FRPA antennas are widely used in various defense platforms, they lack the dynamic capabilities needed to combat modern electronic warfare threats. FRPA systems feature a static design with a predetermined reception pattern, making them more vulnerable to jamming. They are generally more affordable and simpler to implement but fall short when signal integrity is compromised.

In comparison, CRPA antennas offer enhanced functionality by being able to change their reception patterns dynamically. This flexibility allows them to isolate and suppress jamming signals, making them indispensable in scenarios where GPS jamming is a known threat. Military applications that require reliable positioning, navigation, and timing (PNT) data, particularly in contested environments, rely heavily on the anti-jamming capabilities of CRPA systems.

Anti-Jamming Device Capabilities

Anti Jam GNSS Antenna GAJT-710MS by NovAtel combining a CRPA and null forming electronics

Anti Jam GNSS Antenna GAJT-710MS by NovAtel combining a CRPA and null forming electronics

Jamming is a significant threat to any military system that depends on GNSS signals for navigation and communication. Adversaries often use jamming devices to disrupt GNSS signals and obscure the location of friendly forces. CRPA antennas offer a powerful solution by actively countering these threats. By leveraging beamforming techniques, they create nulls in the direction of jamming sources, effectively minimizing their impact.

These anti-jam capabilities are vital in environments where signal degradation or loss could compromise mission objectives. Whether deployed in aircraft, unmanned systems, or ground vehicles, CRPA antennas ensure that critical defense systems retain access to accurate GNSS data, even in the presence of hostile jamming attempts.

CRPA GPS Systems

CRPA GPS systems are one of the most common implementations of this technology in defense applications. By integrating CRPA antennas with GPS receivers, defense platforms gain enhanced protection against GPS jamming and spoofing. GPS spoofing involves the manipulation of GNSS signals to provide incorrect position data, a tactic that CRPA systems can also mitigate through their advanced interference rejection capabilities.

These systems are essential for a wide range of defense applications, from guiding unmanned aerial vehicles (UAVs) to ensuring the accuracy of missile systems. The precision and reliability offered by CRPA GPS systems allow military forces to operate effectively even in electronically contested environments.

CRPA systems include a processing unit that performs the necessary calculations to set up the antenna pattern and combat the interference while having minimal impact on the required GNSS signals. CRPAs can replace existing GNSS antennas without the need to modify the receiver.

Applications of CRPA Antennas Technology in Defense

CRPA antennas are deployed across multiple defense platforms, including ground vehicles, aircraft, naval vessels, and uncrewed systems. They are often used in conjunction with other anti-jamming technologies to provide comprehensive protection against electronic warfare tactics. In modern combat scenarios, the ability to maintain reliable GNSS signals can be the difference between success and failure. For example:

Ground Vehicles

CRPA antennas installed on military ground vehicles allow them to maintain accurate navigation and timing information in GPS-denied environments. This ensures that vehicles can continue to operate effectively during electronic warfare engagements.

Uncrewed Systems

UAVs, drones, and other unmanned systems are particularly vulnerable to GPS jamming. CRPA antennas provide these platforms with robust anti-jam capabilities, allowing them to complete reconnaissance, surveillance, and strike missions without losing critical GPS signals.

Aircraft and Naval Vessels

Aircraft and naval vessels equipped with CRPA antennas benefit from enhanced anti-jamming protection, particularly when operating in contested airspace or maritime environments. These systems ensure that platforms maintain uninterrupted access to GNSS data, even when exposed to electronic interference.

CRPA Antenna Testing

CRPA Antenna System Testing Equipment by CAST Navigation

CRPA Antenna System Testing Equipment by CAST Navigation

Jamming and spoofing threats to GPS and GNSS signals are constantly evolving, and so CRPA systems must undergo rigorous testing against the latest techniques. CRPA testing can be performed in the field under real-world conditions, which is highly realistic but costly. GNSS simulators can also be used to test CRPA systems, and allow repeatable and thorough test programs to be carried out.

The Future of CRPA Antennas in Defense

As electronic warfare threats continue to evolve, so too will CRPA technology. The growing reliance on GPS and other GNSS systems for navigation, targeting, and communication makes anti-jamming solutions a priority for defense forces worldwide. They will likely see further development in terms of size, weight, and power (SWaP) optimization, allowing for easier integration into smaller platforms without sacrificing performance.

In addition, future CRPA systems may incorporate machine learning and artificial intelligence to improve their ability to identify and suppress jamming signals more quickly and accurately. This will further enhance the capability of military systems to operate in highly contested environments where electronic warfare is a significant threat.

Products (3)

GAJT-710MS Anti-Jam Antenna

GNSS anti-jam protection for ships and boats

GNSS anti-jam protection for ships and boats
Jamming and interference, whether intentional or unintentional, can seriously degrade GPS position, ...

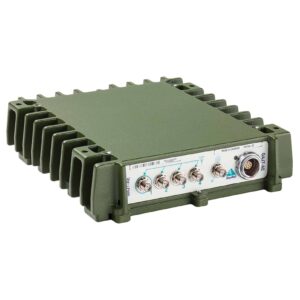

GAJT®-AE-N Anti-jam antenna electronics

GPS Anti-Jam Technology (GAJT®) Antenna electronics for smaller platforms.

GPS Anti-Jam Technology (GAJT®) Antenna electronics for smaller platforms.
Phased-Array (CRPA) Antenna Simulation & Testing

Wavefront simulation for CRPA antenna systems testing

Wavefront simulation for CRPA antenna systems testing

Related Articles

CAST Navigation Develops Custom Simulation & Navigation Testing Platforms

Defense Advancement showcases the company’s GNSS inertial simulation and testing tools for military devices

Feb 01, 2023
GPS Anti-Jam Technology Selected for Royal Navy Type 26 Frigate

Forsberg worked in collaboration with a systems integrator to supply the NovAtel GPS Anti-Jam Technology (GAJT) 700MS integrated CRPA antenna and receiver to fulfill the Navy’s requirements

Dec 19, 2022
Forsberg Provides PNT Solutions for the Defense & Aerospace Industries

Defense Advancement showcases the company’s portfolio of rugged high-accuracy GNSS products that provide precise positioning and time measurements for a range of military platforms and applications

Apr 12, 2022
CRPA Testing Solution for US Air Force

Orolia Defense & Security’s Broadsim Wavefront simulator will be integrated into a test environment for networked, collaborative and autonomous weapon systems being developed under the Golden Horde program

Feb 22, 2022

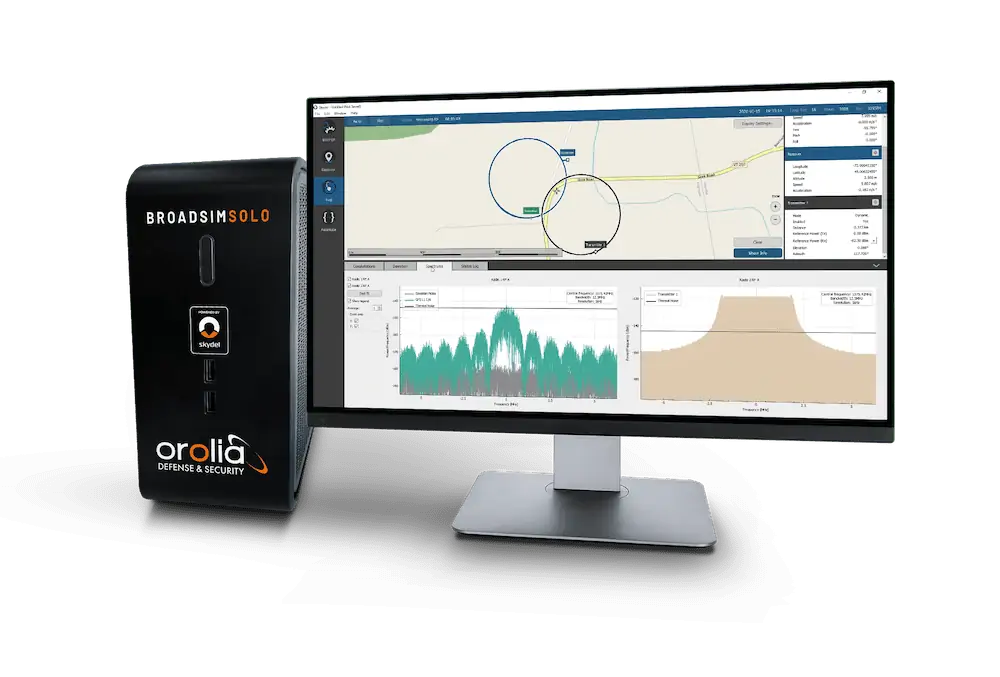

New GNSS Simulator Fits on a Standard Desk
