MAXL-OL-2005 MEMS Accelerometer ±5g sensing range Open Loop MEMS Accelerometer
MAXL-OL-2005 MEMS Accelerometer

±5g sensing range Open Loop MEMS Accelerometer

MAXL-OL-2005 is a state-of-the-art inertial sensor based on a unique MEMS device, designed to provide high stability and low noise measurement. Visit Website Contact
Saved
Save
MAXL-OL-2005 MEMS Accelerometer

MAXL-OL-2005 open loop MEMS Accelerometer’s equivalent noise density values below 1.6 µg/√Hz, one year bias repeatability of 0.8 mg enable excellent measurement accuracy for tilt sensing, seismic detection and inertial navigation applications.

A specially developed ASIC utilized in MAXL-OL-2005 produces a differential analog voltage output proportional to acceleration along with a temperature – proportional voltage output that can be used for system needs. The output voltage range is ± 1.2 V.

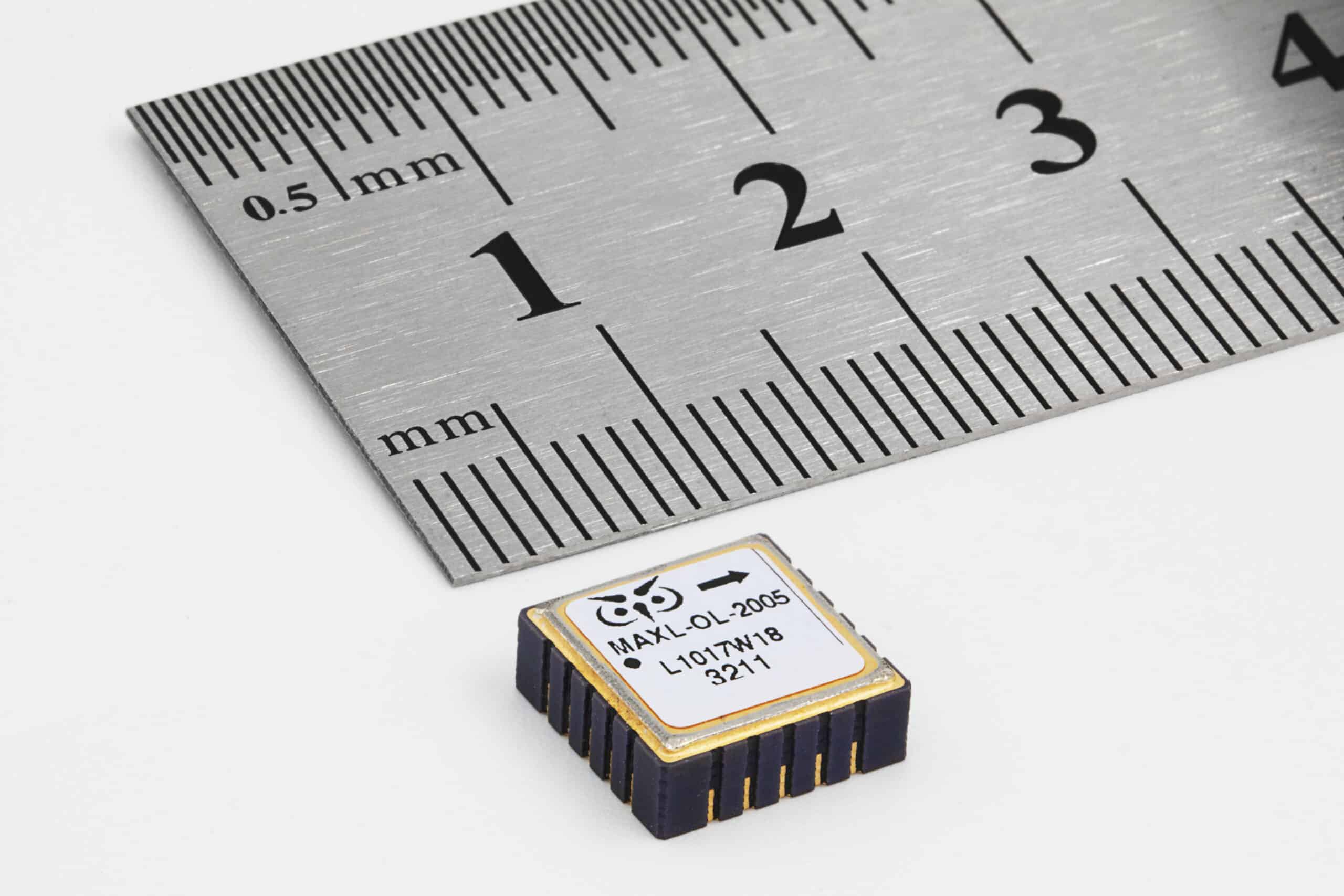

A highly advanced device, the MAXL-OL-2005 provides a sensing range of ± 5 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.

Key Parameters:
  • Sensing range: ±5 g
  • Equivalent Noise density in band: 1.6 µg/√Hz (max)
  • Bias repeatability: 0.8 mg (1σ)
  • Scale factor repeatability: 600 ppm (1σ)
  • Non linearity: 0.7% of input acceleration (1σ)
