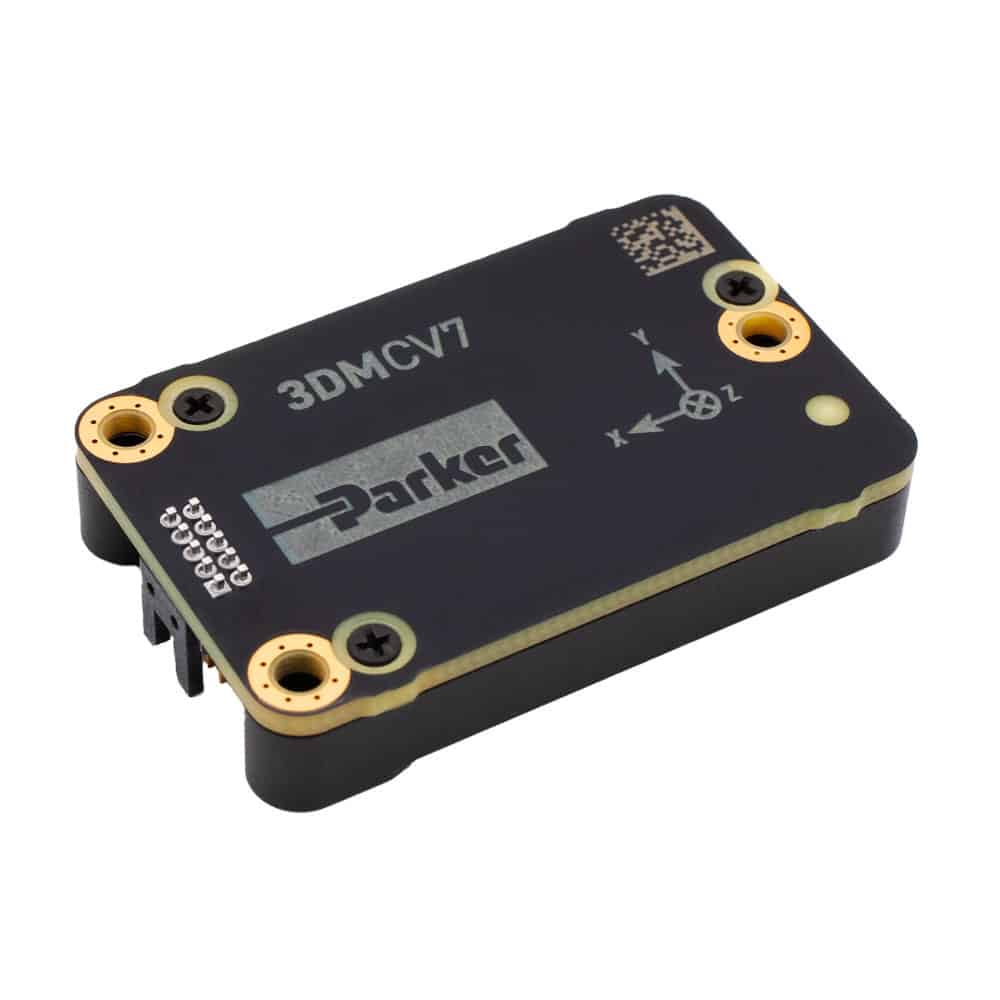

3DM-CV7-AR IMU & VRU
The 3DM-CV7 is a tactical-grade combined IMU and VRU in a low-SWaP OEM package, incorporating high-performance solid-state MEMS accelerometer and gyro inertial sensor technology. Featuring low latency and a bias instability of just 1.5°/hour, it is ideal for antenna and platform tracking and stabilization as well as mobile robotics.
Each 3DM-CV7 sensor is individually calibrated and fully temperature-compensated for optimal performance. The rugged machined aluminium enclosure provides protection in demanding environments with high levels of shock and vibration.
Specifications:
| Dimensions | 38 x 24 x 8.6 mm |
| Weight | 8.3g |
| Power Consumption |
230 mW typical 280 mW max |
| Accelerometer Random Walk | 30 μg/√Hz |
| Gyro Random Walk | 0.14°/√hr |
| Accelerometer Bias Instability | 18 μg |
| Gyro Bias Instability | 1.5°/hr |
