SOSA Backplanes

A SOSA (Sensor Open Systems Architecture) backplane is a modular and standardized hardware interface designed for sensor systems in defense applications. SOSA backplanes facilitate interoperability and flexibility by allowing different electronic modules from various vendors to communicate and work together seamlessly. The SOSA backplanes architecture is crucial in military environments where systems require rapid upgrades and integrations of new technologies to respond to evolving threats.
Overview SOSA Backplanes
By Staff Writer Last updated: December 11th, 2024

SOSA backplanes are a pivotal component in modern defense electronics, serving as the foundational architecture for implementing the Sensor Open Systems Architecture (SOSA) standard.

Designed to align with modular open systems approaches, these backplanes enhance the interoperability, scalability, and maintainability of defense systems, making them indispensable for mission-critical applications.


SOSA Technical Standard

The SOSA standard has been developed by the United States Department of Defense and a consortium of companies in an effort to create a common open architecture for sensors and payloads used in military, defense and aerospace applications.

The standard aims to address the increasing need for hardware and software standardization within the defense industry.

By adopting this framework, SOSA backplanes can ensure compatibility between diverse sensor and processing subsystems, enabling seamless integration of new SOSA electronics into existing and future platforms. This approach significantly reduces the lifecycle costs and deployment times associated with military technology upgrades.


SOSA Backplane Applications

One of the primary applications of SOSA backplanes is high-performance computing systems that can handle the vast volumes of data generated by modern sensors. In order to support the necessary bandwidth and data transfer rates, the fastest SOSA backplanes may utilize 100 GbE and PCIe Gen 4 connectivity.

SOSA backplanes may be incorporated into chassis, ATRs (air transport racks) and other computing systems for a wide range of military and defense use cases.

Applications in Military and Defense Systems

The versatility of SOSA backplanes makes them essential in a wide range of defense applications. These include:


SOSA Backplane Configuration

SOSA backplanes are designed to provide interoperability across all branches of government and military, and to accommodate a wide range of plug-in cards and modules. The modularity and standardization of SOSA reduces costs and vendor lock-in, and also allows systems to be quickly reconfigured without having to redesign the hardware from scratch.

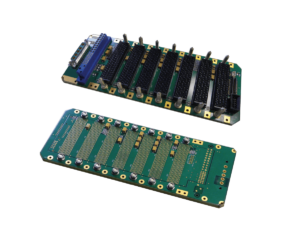

sosa backplane

Rugged Military Backplanes by Atrenne

This allows computing systems to be easily reused for different mission profiles, and also enables them to be future-proofed as new technologies are developed.

SOSA-aligned backplanes and other hardware designs are based on a subset of the OpenVPX (VITA 65) standard. Plug-in cards are either 3U or 6U in height, and corresponding backplanes may provide a number of slots, typically ranging from 3 to around 18.

Regular copper interface slot connectors are designed according to VITA 46 standards, and SOSA-aligned backplanes may also utilize RF (VITA 67) and optical (VITA 66) connectors.


Advanced Features of SOSA Backplanes

SOSA backplanes are typically built with precision-engineered slot profiles that conform to the SOSA technical standard, ensuring full SOSA compliance. These designs incorporate cutting-edge signal and power distribution capabilities to support the high-performance requirements of next-generation defense applications.

They enable robust connectivity for modular components, including RF, optical, and high-speed digital payloads, without compromising on reliability or mission-readiness.

Key characteristics of SOSA backplanes include:

  • Multi-signal support: Compatibility with RF signals, Ethernet, PCIe, and other data standards for streamlined communications.
  • Scalable configurations: Modular designs tailored for rapid reconfiguration and scalability to meet diverse operational needs.
  • Enhanced durability: Ruggedized construction to withstand harsh military environments, including extreme temperatures, vibration, and shock.
  • Future-proofing: Built-in adaptability for integrating emerging technologies and evolving mission requirements.

Technological Challenges Associated with SOSA Backplanes

Implementing SOSA electronics requires addressing various engineering challenges, particularly in high-bandwidth signal integrity, power distribution, and thermal management.

SOSA backplanes can mitigate these issues through advanced materials, optimized routing, and efficient heat dissipation mechanisms. They are designed to handle increasing data loads and processing demands while maintaining stringent size, weight, and power (SWaP) constraints.

Additionally, the focus on SOSA compliance can ensure that backplanes meet stringent performance and interoperability standards, facilitating smooth integration into global defense ecosystems.

This alignment with open architecture principles can enable defense contractors and agencies to deploy systems rapidly and cost-effectively, bolstering national security and mission success.
