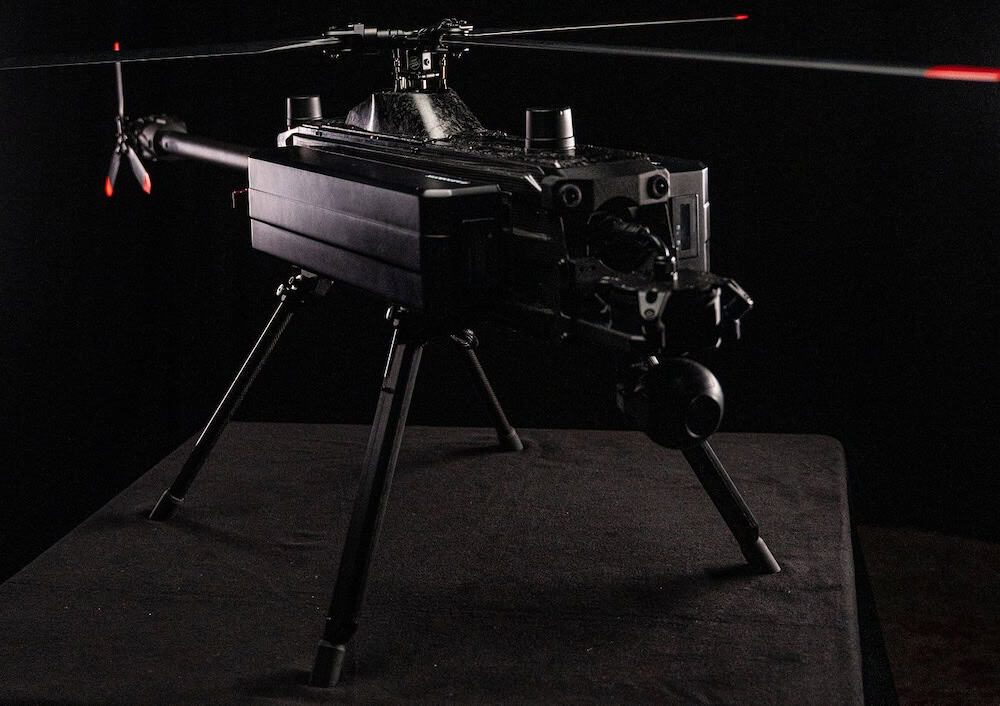

The LIZARD 800 is an advanced unmanned helicopter platform that has been optimized for range and endurance, providing up to 74 minutes of flight time and capable of round trips of up to 100 km. With a payload capacity of up to 10kg, it can be equipped with a wide range of sensors and payloads and is ideal for a variety of applications including extended ISR missions, search and rescue, border patrol, and maritime security.

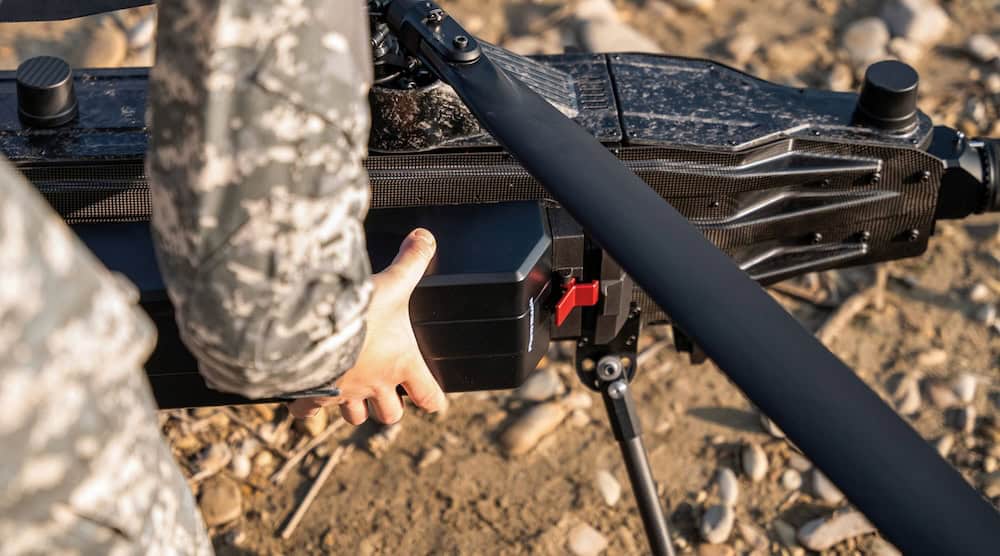

The easily transportable system is designed to be rapidly deployable within minutes, enabling users to assemble and disassemble it completely without tools. It has been designed with a modular system that allows you to easily swap out primary payloads in the field, and an additional slot on the underside of the vehicle provides additional capacity for auxiliary equipment such as extra batteries, secondary sensors, or cargo.
The LIZARD 800 is equipped with Sabrobotix's proprietary Caesar OS flight software, optimized specifically for unmanned rotorcraft operations and empowering the aircraft with a range of functionalities for seamless and efficient mission execution. The system also features built-in NVIDIA Jetson AI computing modules, enabling advanced capabilities such as real-time target identification and tracking, intelligent navigation and collision avoidance, and autonomous coordination with other vehicles.
Specifications:
| Dimensions: |
1530 x 300 x 580 mm unfolded 935 x 510 x 340 mm packed |
| Rotor Diameter: | 1794 mm |
| Empty Weight (without batteries): | 8.0 kg |
| MTOW: | 25 kg |
| Max Payload: | 10 kg |
| Speed: |
68 km/h cruise 140 km/h max |
| Endurance: | 74 min (1 kg payload, cruise speed) |
| Max Altitude: | 7000 m |
