The LIZARD 1000 is an advanced heavy-lift helicopter UAV platform that is capable of carrying up to 20 kg of payload. It is ideal for tactical logistics and cargo applications such as battlefield resupply, disaster response, and ship-to-shore deliveries, and can also be equipped with multiple sensors for more advanced ISR missions. Offering over an hour of flight time in its most efficient configuration, it can reach remote areas and withstand harsh environmental conditions such as wind, rain, and dust.

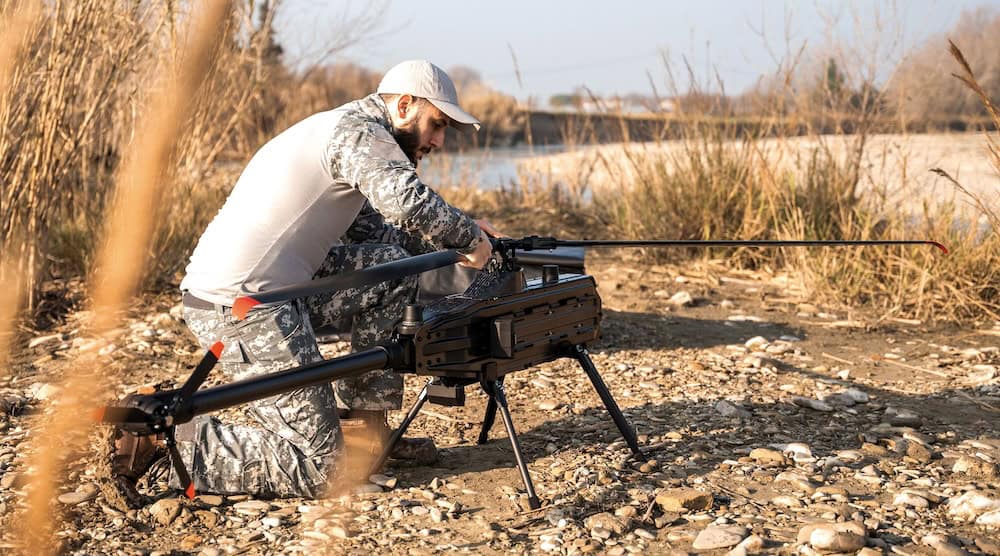

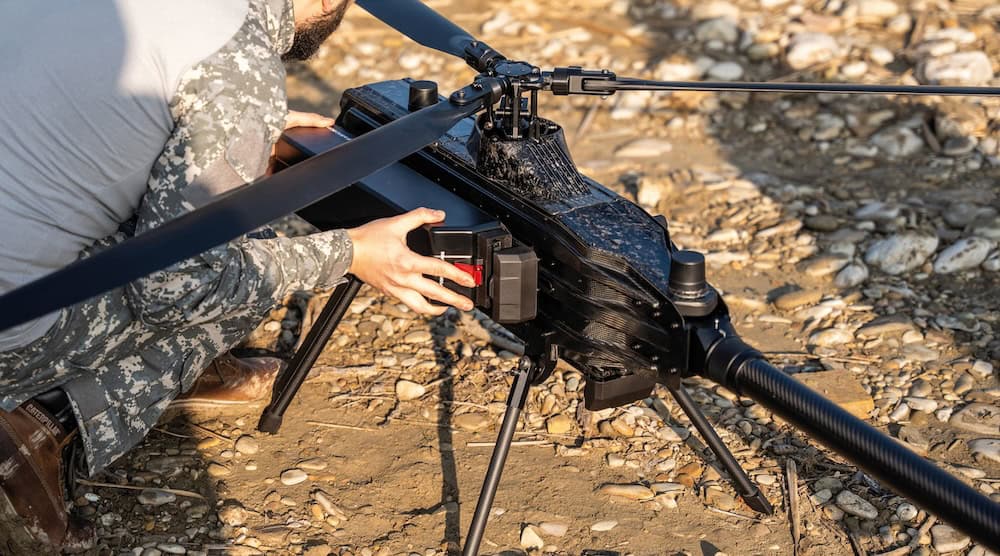

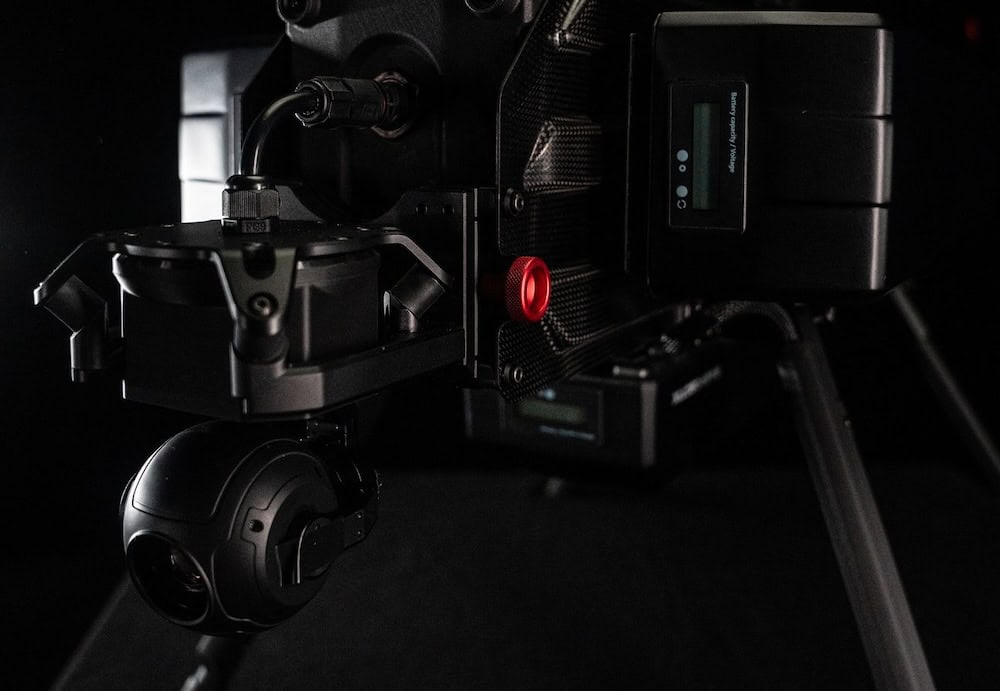

The easily transportable system is designed to be rapidly deployable within minutes, enabling users to assemble and disassemble it completely without tools. It has been designed with a modular system that allows you to easily swap out primary payloads in the field, and an additional slot on the underside of the vehicle provides additional capacity for auxiliary equipment such as extra batteries, secondary sensors, or cargo.
The LIZARD 1000 is equipped with Sabrobotix's proprietary Caesar OS flight software, optimized specifically for unmanned rotorcraft operations and empowering the aircraft with a range of functionalities for seamless and efficient mission execution. The system also features built-in NVIDIA Jetson AI computing modules, enabling advanced capabilities such as real-time target identification and tracking, intelligent navigation and collision avoidance, and autonomous coordination with other vehicles.
Specifications:
| Dimensions: |
1792 x 398 x 628 mm unfolded 1145 x 510 x 370 mm packed |
| Rotor Diameter: | 2254 mm |
| Empty Weight (without batteries): | 11.2 kg |
| MTOW: | 38 kg |
| Max Payload: | 15 kg |
| Speed: |
74 km/h cruise 155 km/h max |
| Endurance: | 69 min (1 kg payload, cruise speed) |
| Max Altitude: | 7500 m |
