Ophir Optronics, an MKS brand, is a leading designer and manufacturer of high-performance IR thermal imaging lenses and optical elements for SWIR, MWIR, LWIR defense thermal imaging applications including long-range, low-SWaP products. With nearly five decades of combat-proven experience, MKS-Ophir is a major supplier of optical subassembly zoom lenses and components for international defense OEMs, and a proud partner and optics supplier to the most pioneering defense and security applications globally. With a production site in NATO member country, Romania, and HQ in Israel, we have earned a reputation as the preferred one-stop-shop solution provider, delivering unparalleled capabilities, reliability, and tailor-made solutions to major defense platforms worldwide.

Infrared Lenses for Long Range Surveillance

Thermal imaging solutions for any defense application

Our products span the entire infrared spectrum, including LWIR, MWIR, SWIR and NIR, and offer a comprehensive range of options including fixed, manual, and motorized focus, and continuous zoom including long-range and low-SWaP products. We provide solutions that solve challenges across all domains, with use cases including:

Infrared Zoom Lenses for Long-Range Security and Surveillance Applications

IR Thermal Imaging Lenses for Counter Unmanned Systems (C-UAS)

More information: IR Imaging Lenses

Long-range MWIR, LWIR & SWIR zoom lenses

With detection, recognition, and identification (DRI) ranges of up to 28 km, our long-range zoom lenses are ideal for ISR (intelligence, surveillance and reconnaissance) applications on land, at sea and in the air, as well as security and counter-drone systems.

The rugged lenses have been engineered for superior performance even under the harshest battlefield conditions, and feature accurate line-of-sight (LOS) performance and MTF close to the diffraction limit.

LWIR zoom lens with vehicle detection
SupIR 25-150mm f/1.4
LWIR zoom lens with vehicle detection range exceeding 8.5 km
Motorised focus LWIR lens with vehicle detection
SupIR 25-225mm f/1.5
Motorised focus LWIR lens with vehicle detection range exceeding 10.5 km
Rugged continuous zoom lens with vehicle detection
SupIR 40-300mm f/1.5
Rugged continuous zoom lens with vehicle detection range exceeding 12.5 km
Long-range observation lens with vehicle detection
SupIR 21-420mm f/4.0
Long-range observation lens with vehicle detection range exceeding 16.5 km
Folded optics lens for air, land and sea gimbals
FoldIR 30-450mm f/3.4
Folded optics lens for air, land and sea gimbals and payloads
Rugged MWIR zoom lens
SupIR 30-600mm f/4.0
Rugged MWIR zoom lens with vehicle detection range of up to 23.5 km
Motorised focus LWIR lens
SupIR 35-690mm f/4.0
Motorised focus LWIR lens with vehicle detection range of up to 24.5 km
Extended-range surveillance lens
SupIR 45-900mm f/4.0
Extended-range surveillance lens with vehicle detection range exceeding 26 km
MWIR continuous zoom lens for surveillance & counter-UAS
SupIR 60-1200mm f/4.0
MWIR continuous zoom lens for surveillance & counter-UAS at ranges exceeding 28 km
Rugged low-SWaP SWIR & NIR lens
SWIR & NIR 25-250mm f/5.5 (NFOV) f/4.0 (WFOV)
Rugged low-SWaP SWIR & NIR lens with detection range exceeding 26 km

Application Note: SWIR & NIR Imaging In Aerial Electro-Optical Systems (EOS)

Low-SWaP Fixed & Manual Focus and Continuous Zoom Lenses

We offer a wide range of compact, lightweight and low-power fixed-focus, manual focus, and zoom lenses for high-resolution thermal imaging and sensing applications.

These low-SWaP lenses are ideal for incorporation into military platform and system designs with size and weight limitations such as small aircraft and unmanned systems, as well as dismounted soldier applications such as hand-held thermal imagers and thermal weapon sights.

Fixed-focus HD imaging lens for XGA format cameras
SupIR 7.5mm f/1.2
Fixed-focus HD imaging lens for XGA format cameras
Fixed-focus LWIR imaging lens
SupIR 13.6mm f/1.0
Fixed-focus LWIR imaging lens for standard definition format cameras
LWIR XGA imaging lens for high-resolution thermal imaging
SupIR 25mm f/1.2
LWIR XGA imaging lens for high-resolution thermal imaging and sensing
Fixed-focus imaging lens for 12μm XGA LWIR cameras
SupIR 50mm f/1.2
Fixed-focus imaging lens for 12μm XGA LWIR cameras
SupIR 73.1mm f/1.05 Fixed-focus lens
SupIR 73.1mm f/1.05
Fixed-focus lens for 10&12μm 1024x768 LWIR cameras
Manual focus imaging lens for XGA format uncooled LWIR cameras
SupIR 75mm f/1.2
Manual focus imaging lens for 1024x768 XGA format uncooled LWIR cameras
lightweight & compact LWIR continuous zoom lens
LightIR 15-75mm f/1.2
Most lightweight & compact LWIR continuous zoom lens
Low-SWaP continuous zoom MWIR lens

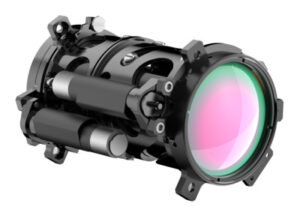

LightIR 10-135mm f/3.6
Low-SWaP continuous zoom MWIR lens with detection range exceeding 11km
Folded optics lens for MWIR 10µm VGA detectors
LightIR 16-180 mm f/3.6
Folded optics lens for MWIR 10µm VGA detectors
18-225mm Continuous zoom VGA MWIR lens
LightIR 18-225mm f/3.6
Continuous zoom VGA MWIR lens with detection range of 15.5km
LightIR 18-225mm MWIR zoom lens
LightIR 18-225mm f/4 MWIR lens optimized for 10 μm SXGA and 15 μm VGA FPA
LightIR 20-275 mm f/5.5 MWIR continuous zoom lens
LightIR 20-275 mm f/5.5
Smallest & lightest MWIR continuous zoom lens
SWIR+NIR 25-250mm lens
SWIR & NIR 25-250mm f/5.5 (NFOV) f/4.0 (WFOV)
Rugged, compact and lightweight lens for 5/10µm & VGA 15μm cameras

AquaShieldIR Hydrophobic Coatings

Advanced IR lens coatings for naval & maritime ISR

We have developed an advanced hydrophobic coating for IR lenses that provides unparalleled water repelling and ensures the utmost in clarity for naval and maritime surveillance and security applications. AquaShieldIR is designed to withstand extremes of weather, salt spray and humidity, overcoming the obstacles faced at sea by traditional coatings.

Aquashield IR Lens Coating

Rigorously tested for durability and longevity, the AquaShieldIR coating surpasses the requirements of the MIL-STD-810 standard, and allows naval and maritime personnel to accurately detect and identify targets and objects of interest even in the harshest coastal and marine environments.

More information: AquaShieldIR Hydrophobic Lens Coatings

Build-To-Spec (BTS) & Build-to-Print (BTP) solutions

build to spec optical componentsWith world-leading expertise in optical design and engineering, we can provide defense OEM clients with bespoke precision-manufactured infrared components, including aspheric, diffractive, and spherical lenses, mirrors, domes, windows, and prisms.

Our cutting-edge in-house manufacturing capabilities include MRF technology, diamond-turning machines, CNC generators and polishers, automated coating chambers, and advanced metrology and test equipment. We work to the highest standards of development and production, and maintain complete control over the entire production process to ensure the highest quality results.

optical components manufacturing

We are AS9100 Rev. D and ISO 9001-2015 certified, and comply with a number of US and European military standards, including:

DIN 3140; IPC 620; MIL-PRF 13830; MIL-PRF 85285; MIL STD 810; MIL-C-48497; MIL-C-48616; ISO 10110 sections 1-19, ANSI\ASQ Z1.4
