Ballistic body armor is an essential component of modern defense, providing protection against firearm and fragmentation threats. Designed in two primary forms — hard and soft armor — each serves a distinct purpose. Read more >>
Hard armor consists of rigid panels engineered to stop rifle rounds, while soft armor employs flexible, layered composites to guard against handgun and fragmentation threats.
This guide from Adept Armor explores key aspects of body armor technology, including threat ratings, material composition, and operational considerations. Understanding these fundamentals empowers military, law enforcement, and security professionals to make informed decisions regarding personal protection.
Body Armor Protection Standards
Globally, three primary armor rating systems set protection benchmarks: NIJ 0101.06, NIJ 0101.07 (proposed), and VPAM.
NIJ 0101.06: The Current U.S. Standard

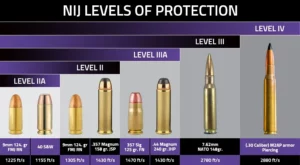

The National Institute of Justice (NIJ) 0101.06 standard classifies body armor into six levels: Type I, Type IIA, Type II, Type IIIA, Type III, and Type IV. While Level IIIA typically applies to soft armor, Levels III and IV denote hard armor plates.
Level III armor has limitations in stopping high-velocity threats such as 5.56x45mm M193, leading to the unofficial designation “Level III+” for plates that address additional rifle threats.
NIJ 0101.07: The Next Evolution in Protection Standards
The proposed NIJ 0101.07 standard introduces new categories: Handgun 1, Handgun 2, Rifle 1 (Ball Rounds), Rifle 2 (Steel Penetrators), and Rifle 3 (Armor Piercing). While not yet officially adopted, manufacturers are beginning to incorporate these ratings into product specifications.
VPAM: The European Standard
VPAM armor ratings range from PM 1 to PM 14, with soft armor and helmets typically falling between PM 3 and PM 4. Widely used by European military and law enforcement agencies, VPAM-rated armor provides alternative ballistic protection standards.
Hard Armor Materials and Performance

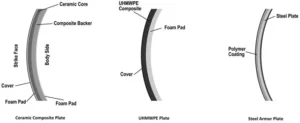

Hard armor plates are constructed from three primary materials: ceramic composite, ultra-high molecular weight polyethylene (UHMWPE) composite, and steel. Each material offers distinct advantages based on operational requirements.
Ceramic Composite Armor
Ceramic plates feature a high-strength ceramic strike face bonded to a fiber composite backing. The ceramic fractures incoming projectiles, dispersing their energy, while the backing absorbs residual impact forces. Though lightweight and effective, ceramic plates are susceptible to damage from drops and repeated impacts.
Advantages:
- High protection against armor-piercing threats
- Lightweight construction
- Balanced performance-to-weight ratio
Disadvantages:
- Susceptible to drop damage
- Thicker profile (0.75” to 1.25”)
- Variable multi-hit resistance
UHMWPE Composite Armor
Ultra-high molecular weight polyethylene plates are exceptionally lightweight and highly effective against non-armor-piercing rifle threats. However, they struggle against steel-cored and armor-piercing rounds and can degrade in extreme heat conditions.
Advantages:
- Extremely lightweight
- Excellent multi-hit resistance
- High impact durability
Disadvantages:
- Poor performance against steel-cored threats
- Heat-sensitive material
- Generally thicker profile
Steel Armor
Steel plates, typically made from martensitic steel, offer durability and cost-effectiveness but are significantly heavier. They are prone to fragmentation upon impact and ineffective against high-velocity threats such as 5.56x45mm M193.
Advantages:
- Durable and resistant to impact damage
- High multi-hit performance
- Cost-effective option
Disadvantages:
- Heavy (7 to 10 lbs per plate)
- Limited effectiveness against high-velocity rifle rounds
- Potential fragmentation risks
Emerging materials, such as titanium-UHMWPE composites and flexible rifle armor, continue to push the boundaries of body armor technology.

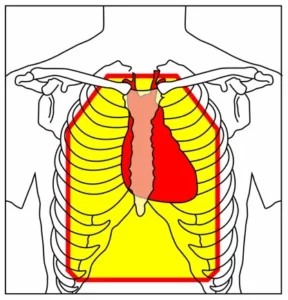

Hard Armor Plate Cuts
Hard armor plates are available in several cut configurations, balancing coverage and mobility:
- Full Cut: Maximum protection, often used for back plates.
- SAPI Cut: Standard military cut offering a balance of protection and maneuverability.
- Shooter’s Cut: Enhanced shoulder mobility with slight coverage reduction.
- Swimmer’s Cut: Maximized mobility with reduced protective area.
Soft Body Armor: Flexibility and Protection
Soft body armor is designed for flexibility, offering protection against handgun and fragmentation threats. Made from woven or laminated fiber materials, it disperses kinetic energy upon impact, converting projectile energy into heat and axial strain.
Soft armor is primarily rated under the NIJ system, with Level II and Level IIIA being the most common. It is not inherently stab-resistant unless explicitly designed for such threats.
Selecting the Right Body Armor
The choice between hard and soft armor depends on the operational environment and threat assessment:
- Hard armor is ideal for:
- Military and high-risk law enforcement applications
- Protection against rifle threats
- Rural or high-threat environments
- Soft armor is preferred for:
- Urban law enforcement and security applications
- Protection against handgun threats
- Covert or extended wear situations
Lightweight UHMWPE plates provide a balance between rifle protection and mobility for those seeking an intermediate solution.

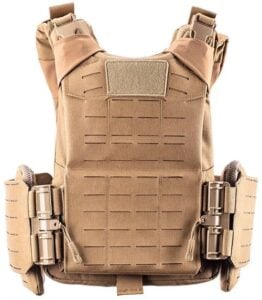

Armor Carriers: Enhancing Functionality
Armor carriers secure ballistic panels and provide integration points for mission-essential gear. Two primary configurations exist:
- Overt Carriers (Plate Carriers): Designed for external wear, featuring MOLLE webbing, quick-release systems, and load-bearing capabilities.
- Covert Carriers: Minimalist designs optimized for concealment under clothing.
When selecting a plate carrier, factors such as stitching quality, load-bearing capacity, and gear compatibility should be considered.
Modern body armor solutions cater to a wide range of operational needs. Whether selecting soft armor for urban law enforcement or hard plates for military applications, understanding ballistic ratings, materials, and ergonomic considerations is critical.
Advances in armor technology continue to refine protection capabilities, ensuring that military and security professionals have access to the best defensive solutions available.
