Gavia AUV

Lightweight modular AUV for multi-mission naval operations

Gavia is a lightweight, fully modular and low-logistics AUV designed for rapid deployment across a wide variety of military and security missions. Field-changeable modules allow the vehicle to carry synthetic aperture sonar, multibeam echosounders, side-scan sonar, sub-bottom profilers and custom payloads.

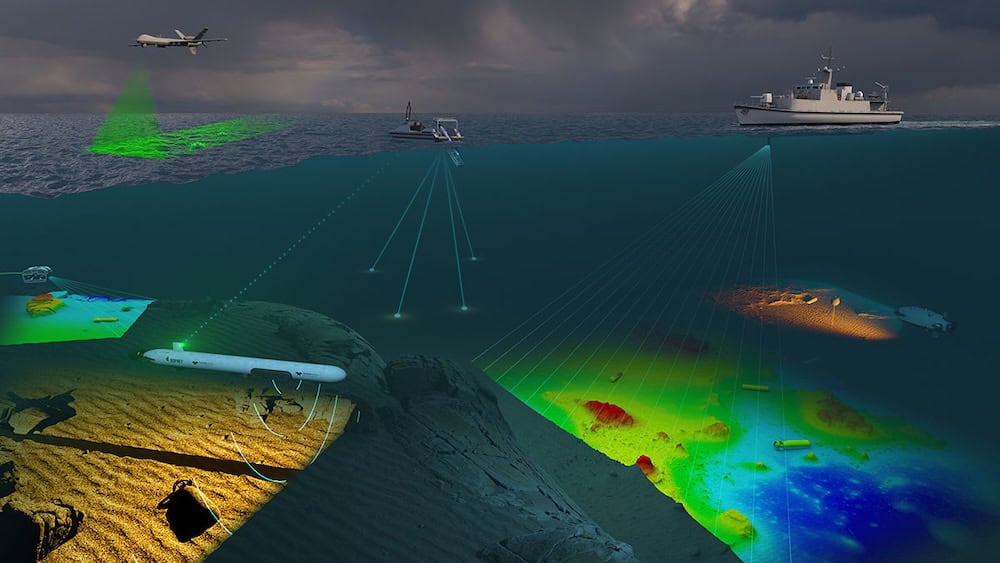

Used by 16 NATO and NATO-aligned naval operators, Gavia supports mine countermeasures, anti-submarine warfare and sonar training, rapid environmental assessment, search and recovery, subsea and seabed warfare, and special forces and expeditionary missions.

• Diameter: 200 mm
• Depth rating: 1,000 m
• Survey speed: 3.5 knots
• Sprint speed: Over 5.5 knots
• Endurance: 7–14 hours

Osprey AUV

Modular medium-sized AUV for deeper and longer-duration missions

Osprey is a modular medium-sized AUV designed for deeper-water operations requiring increased endurance and more capable sensors and payloads. Built around the same electronics, controls and modular architecture as Gavia, the platform can be launched and recovered from a variety of military platforms.

Osprey supports mine countermeasures, anti-submarine warfare and sonar training, search and recovery, subsea and seabed warfare, and critical undersea infrastructure operations.

• Diameter: 324 mm
• Depth rating: 2,000 m
• Survey speed: 3 knots
• Sprint speed: Over 5 knots
• Endurance: 24–48 hours

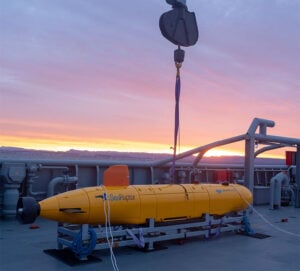

SeaRaptor AUV

Deepwater survey AUV for seabed reconnaissance and inspection

SeaRaptor is a survey-grade deepwater AUV featuring a large payload capacity and extensive customization options. Designed for operations at abyssal depths, the platform can carry side-scan sonar, multibeam sonar, sub-bottom profilers, cameras and synthetic aperture sonar.

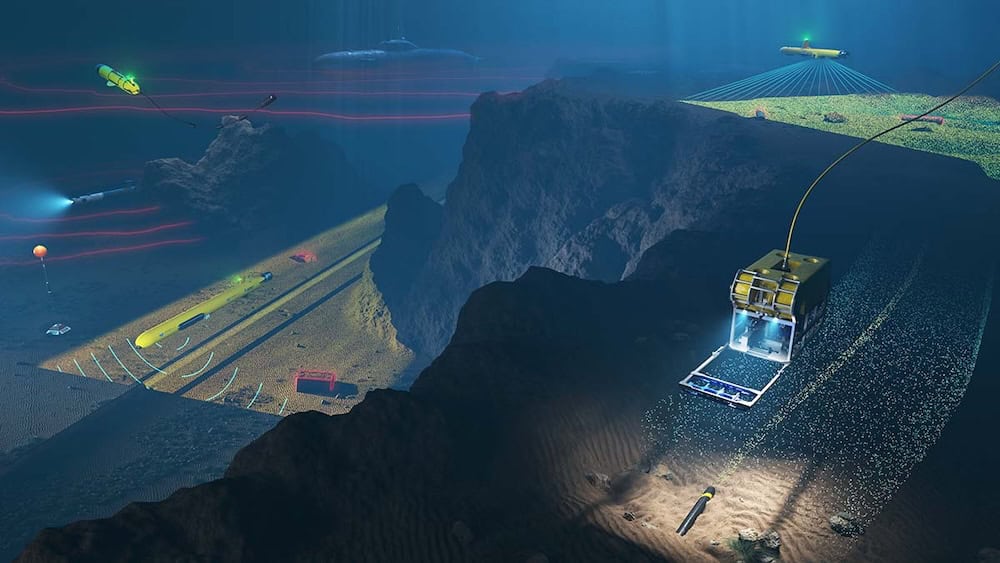

The vehicle supports broad-area search, hydrographic survey and high-resolution inspection for MCM, ASW, ISR, search and recovery, subsea and seabed warfare, and CUI monitoring.

• Diameter: 630 mm
• Depth rating: 6,000 m
• Survey speed: 3 knots
• Sprint speed: 4 knots
• Endurance: Up to 96 hours

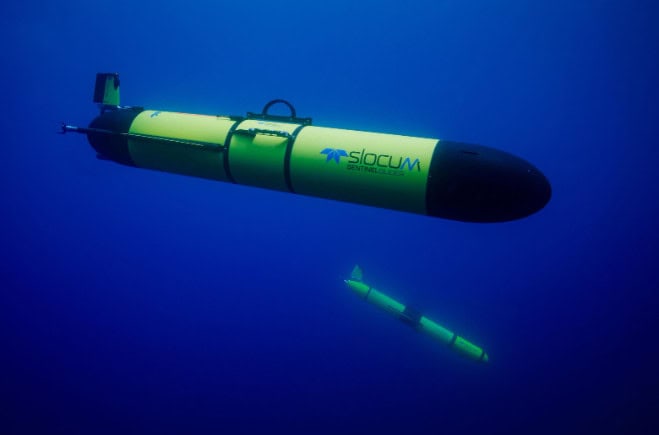

Slocum Autonomous Underwater Gliders

Long-endurance gliders for persistent maritime surveillance

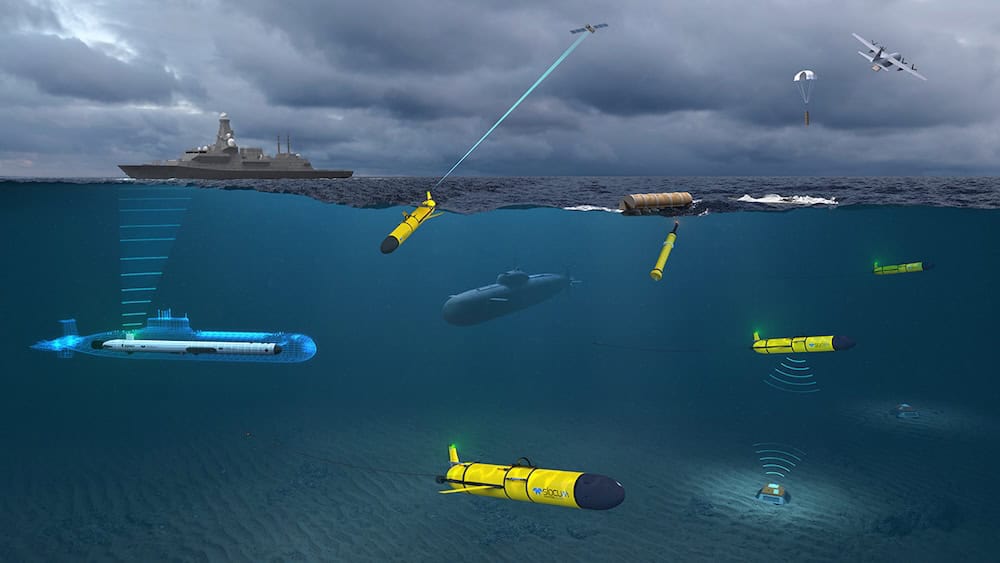

The Slocum G3 provides long-duration autonomous operation for rapid environmental assessment and persistent maritime sensing. With more than 60 integrated sensor options and over 1,200 vehicles deployed, it supports ASW, ISR, REA and persistent maritime surveillance.

The next-generation Slocum Sentinel increases payload capacity, speed and endurance, enabling more than two years of persistent ocean monitoring across a wide variety of military missions, including CUI monitoring.

	Slocum G3	Slocum Sentinel
Diameter	200 mm	320 mm
Depth rating	1,000 m	1,000 m
Survey speed	0.25 knots	0.25 knots
Sprint speed	0.5 knots	2 knots
Endurance	Over 400 days	Over 800 days

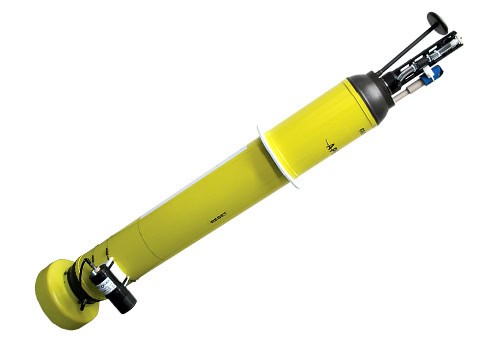

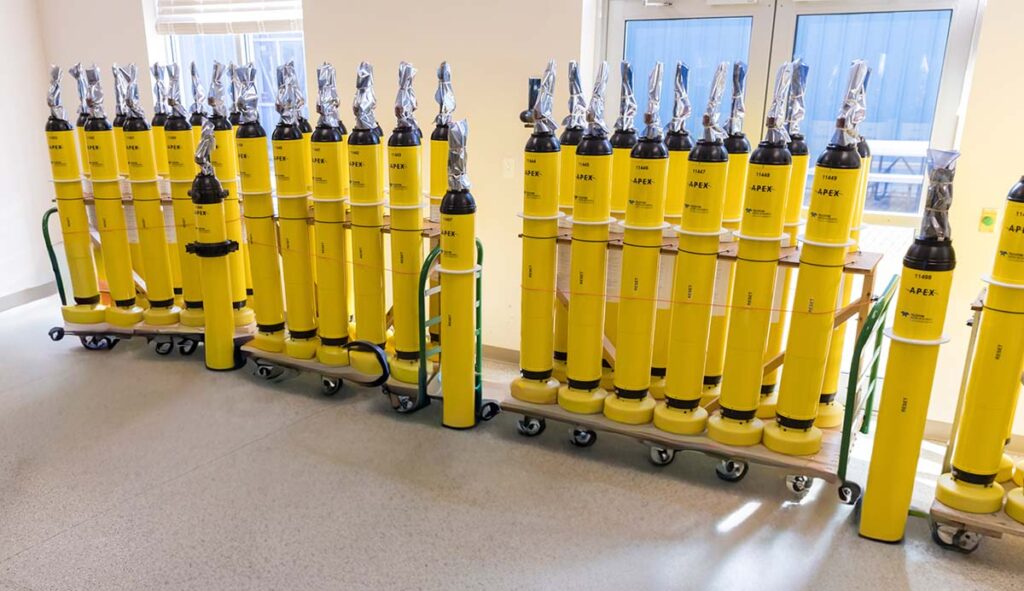

APEX Profiling Floats

Autonomous ocean profiling for environmental and acoustic intelligence

Teledyne Marine’s APEX profiling floats collect physical, biogeochemical and acoustic oceanographic data for integration into warfighter models. Backed by more than 30 years of development, over 10,000 APEX floats have produced millions of oceanographic profiles.

Available configurations include:

• APEX-S Standard Argo: CTD sensing with up to 400 profiles and four years of operation
• APEX-E Electromagnetic: CTD and electromagnetic sensing with up to 200 profiles
• APEX-B Biogeochemical: CTD, oxygen, fluorescence, pH and nitrogen sensing
• APEX-P Passive Acoustic: CTD and passive acoustic sensing for underwater monitoring

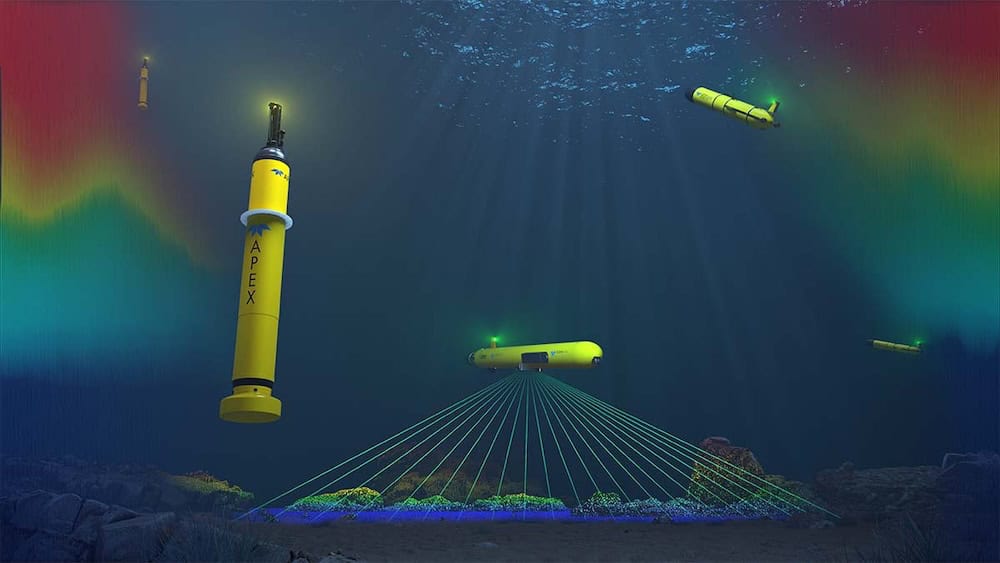

The APEX family supports ASW, ISR and rapid environmental assessment at depths of up to 2,000 metres.

Uncrewed Surface Vehicles

Compact USVs for autonomous port and harbor survey

Teledyne Marine’s Z-Boat remotely operated USVs conduct hydrographic and bathymetric surveys in ports, harbors and other restricted environments. The platforms integrate Teledyne sensing technologies, including echosounders, multibeam sonar, ADCPs, cameras and LiDAR.

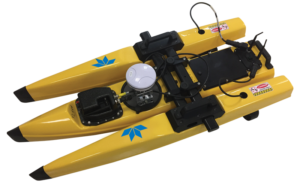

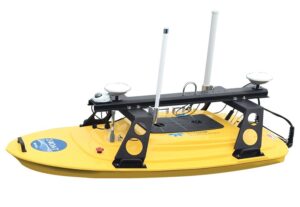

The Z 1800 combines above- and below-water sensing for detailed three-dimensional survey, while the smaller Z 1250 provides a compact platform for single-beam bathymetry and current profiling. Applications include MCM, ISR and CUI assessment.

	Z-Boat 1800	Z-Boat 1250
Survey speed	3 knots	3 knots
Maximum speed	5 knots	5 knots
Endurance	4 hours	1 hour
Primary sensors	Single-beam echosounder, multibeam sonar, camera and LiDAR	Single-beam echosounder and ADCP
