Tyto Robotics explains that balancing drone propellers is critical for ensuring optimal UAV performance, reliability, and extended operational life, with innovations like the Flight Stand 150 providing an ideal testing solution.
When propellers are unbalanced, they produce unwanted vibrations that can lead to reduced thrust efficiency, higher noise levels, and faster wear on components such as bearings and onboard sensors. There are three primary approaches to balancing propellers: static, dynamic, and aerodynamic.
Static and dynamic balancing involve adjusting the mass distribution of the propeller by adding or removing weight. Static balancing is done with the propeller at rest, while dynamic balancing accounts for vibrations that occur during operation.
Aerodynamic balancing, in contrast, deals with aligning thrust output between blades by physically adjusting them, a process often referred to as blade tracking.
Why Propeller Balancing Matters
Unbalanced propellers are a frequent cause of vibration-related issues in UAVs. These vibrations can degrade flight stability, increase mechanical wear, and generate excessive noise. Properly balanced propellers help reduce these vibrations, resulting in smoother flights, improved controller accuracy, and extended component lifespan.
While many ready-to-fly UAVs are equipped with propellers that meet ISO balance standards, larger or custom-built drones often need additional balancing to correct imbalances introduced during manufacturing or assembly.
Static Balancing Method
Static balancing offers a simple and cost-effective solution for hobbyists and smaller UAV platforms. This method involves mounting the propeller on a non-moving balancer and adjusting it until both blades maintain equal weight distribution when the propeller is stationary.
To perform a static balance, the propeller is placed on a pivot—commonly magnet-based—to allow free rotation. If one blade consistently drops, it indicates a weight imbalance. Material is then either added to or removed from the appropriate blade to achieve balance.
A properly balanced propeller will remain stationary in any position without favoring a heavier side.
Ways to Adjust Weight
- Adding material: Small amounts of adhesive tape, nail polish, glue, clear paint, or even tiny screws can be used to increase weight where needed.
- Removing material: Weight can be reduced by sanding, trimming, or carefully drilling the blade. Sanding is typically done on the underside, while trimming focuses on the tips or trailing edge to minimize aerodynamic impact.
Benefits of Static Balancing
- Affordable: Static balancing tools are generally inexpensive.
- User-friendly: The method is easy to learn and requires minimal equipment.
- Quick to perform: Setup and balancing can be completed relatively quickly.
Drawbacks
- Lower precision: This method lacks the accuracy of dynamic balancing and doesn’t provide a numeric balance value (G value).
- Manual variability: Results can vary, especially with complex or foldable propellers, due to the hands-on nature of the process.
Dynamic Balancing Method
Dynamic balancing is the preferred technique for professional drone builders and operators. Unlike static balancing, dynamic balancing evaluates the propeller’s balance while spinning, allowing for adjustments that reflect real operating conditions.

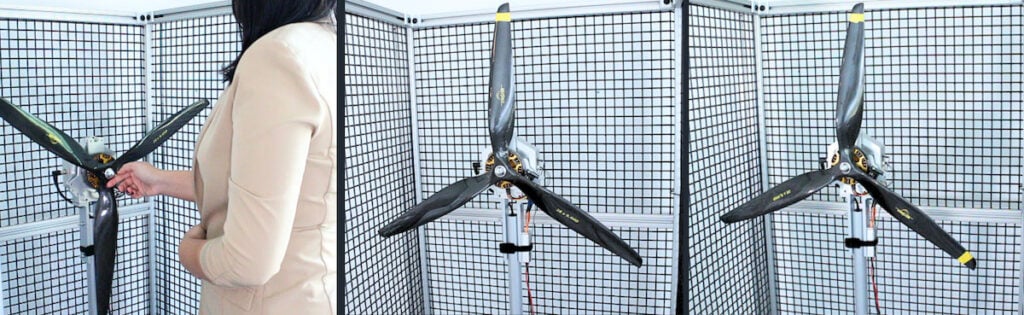

This process involves attaching the motor and propeller to a test stand fitted with sensors that measure rotational speed and vibration. Software then analyzes the data and provides step-by-step guidance on how to correct imbalances.
A typical dynamic balancing procedure includes mounting the setup, entering rotor properties such as weight and RPM, and performing an initial test spin. The software will indicate how much material to apply to specific areas of the propeller to reach an acceptable balance grade—often aiming for values below G 6.3. A final spin confirms whether the propeller meets the desired criteria or if additional adjustments are necessary.
Advantages of Dynamic Balancing
- High accuracy: Suitable for scenarios where precise balance is critical.
- Standards-compliant: Can align with ISO balance standards relevant to the drone industry.
- Efficiency: Many systems complete the process in under five minutes per propeller.
Limitations
- Higher cost: Equipment for dynamic balancing is more expensive than static tools.
- Technical requirements: Users need a solid understanding of relevant parameters like G values and RPM targets.
Conclusion
Static and dynamic balancing serve different needs depending on the UAV application. Static balancing is ideal for smaller, hobby-grade drones due to its simplicity and low cost. Dynamic balancing offers the accuracy and repeatability required in commercial environments, especially when compliance with industry standards is a priority. Both techniques play an important role in maintaining smooth, efficient, and reliable drone operations.
