3D Monitors & Workstations for Mission Planning, Data Visualization & Virtual Simulation

3D PluraView Monitors

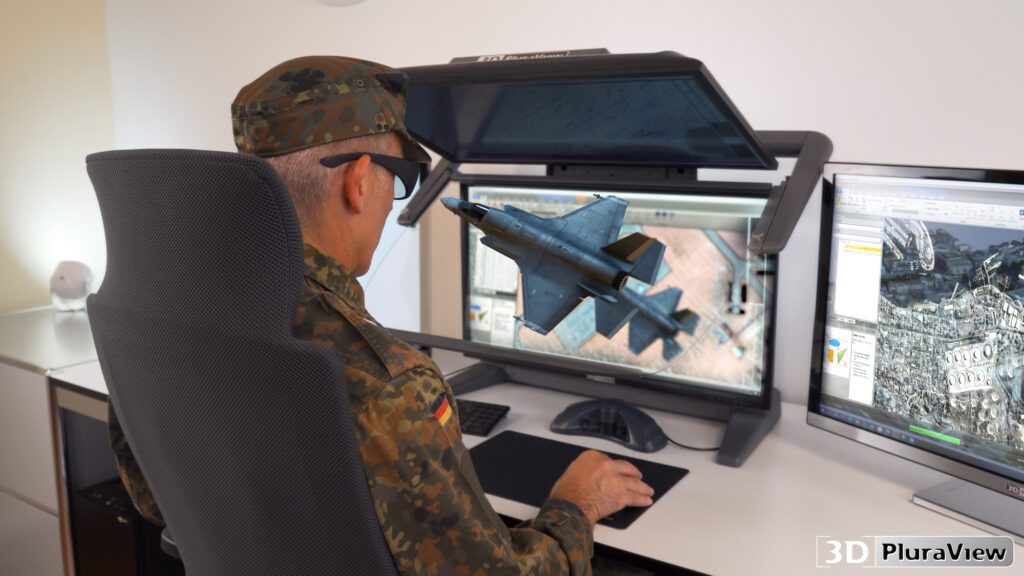

3D PluraView stereoscopic display monitors provide unique capabilities for modelling and geospatial applications, with passively polarized 3D technology providing the highest user acceptance of any 3D display technology on the market. Flicker-free, daylight-usable, stereoscopic displays allow long-term usage with maximum comfort and less potential for fatigue.

Featuring beamsplitter technology, these 3D monitors incorporate two screens, a semi-transparent mirror and a pair of lightweight passively polarized stereo glasses to deliver Full HD, 2.5K or 4K imagery to each eye. A wide viewing angle makes it easy for teams to work together at a single workstation.

3D PluraView monitors are available in 3 sizes; 22" (Full HD), 24" (Full HD), 27" (2.5K) and 28" (4K/UHD) sizes. NVIDIA Quadro, AMD FirePRO and AMD RadeonPRO graphics cards are all supported, as well as built-in plug-and-play compatibility with Windows, Linux and MacOS.

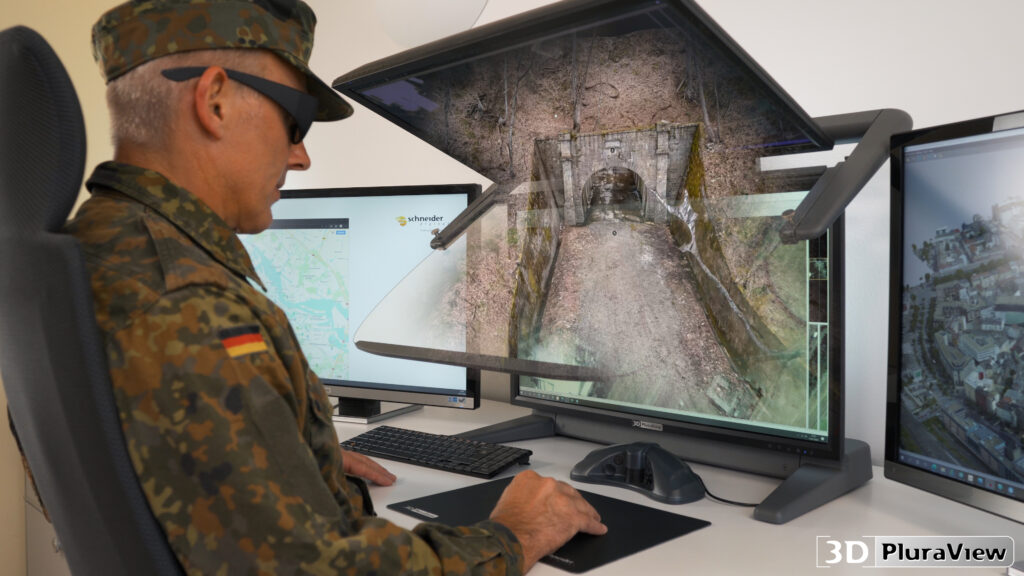

Suited to displaying, navigating and editing a wide range of Intelligence, Surveillance and Reconnaissance (ISR) data, military applications for the 3D PluraView family is include:

• Military operations planning
• Remote sensing for UXO (unexploded ordnance) detection and clearance
• Satellite imagery analysis
• 3D terrain mapping
• 3D building modelling for special forces training and deployment
• Visualization of LiDAR point clouds

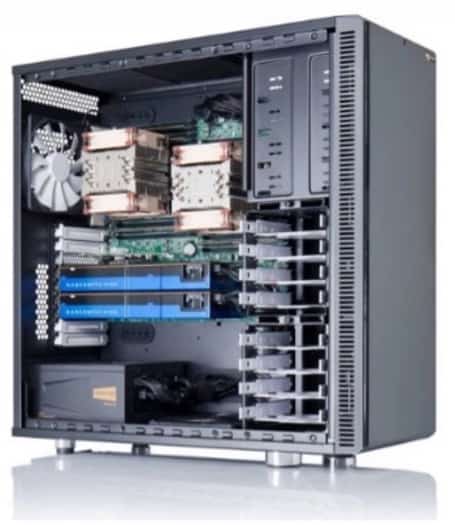

High-Performance 3D Workstations

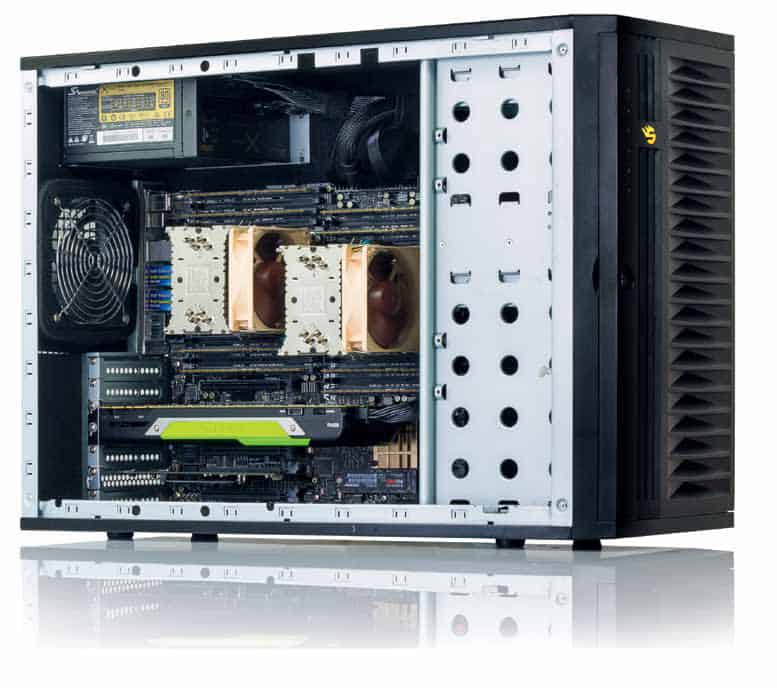

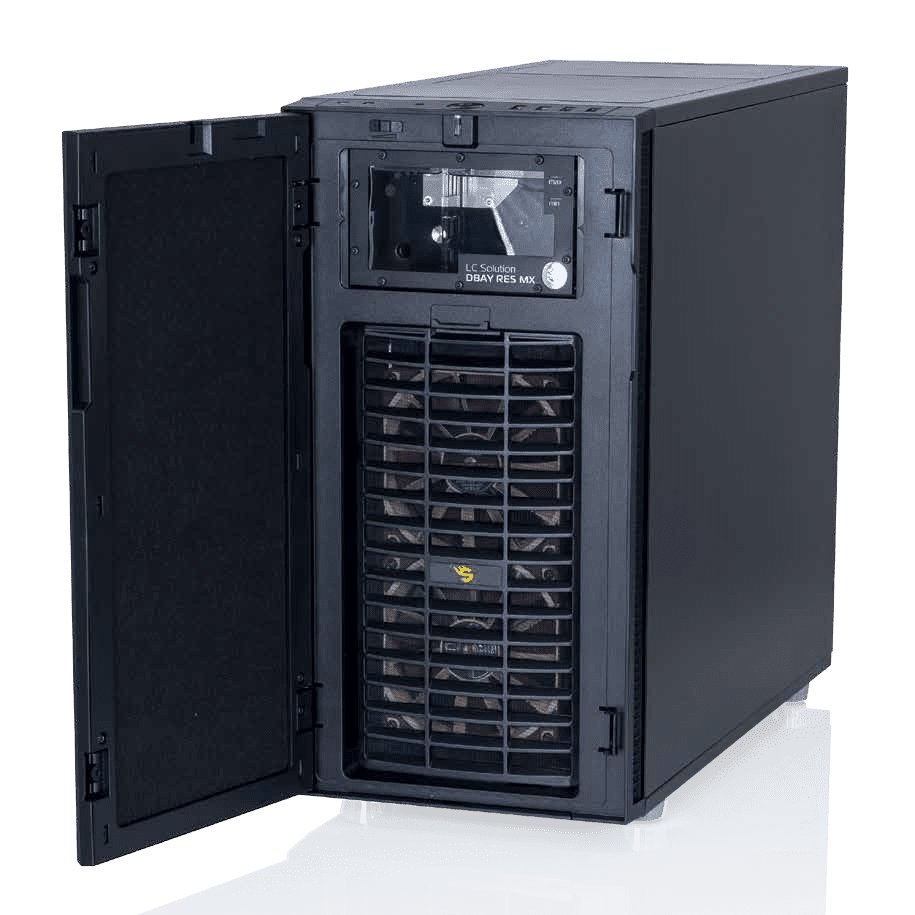

Expertly-built custom hardware solutions for professional 3D graphics rendering applications. Incorporating the latest insights and state-of-the-art industry knowledge, 3D rendering and modelling workstations by Schneider Digital are developed through close collaboration with hardware and software developers, research institutes and professional users.

All hardware components are specifically chosen and balanced in order to support optimal processing of larger image data volumes, as well as loading and visualizing the results on a stereoscopic 3D display. In order keep your workstations at the cutting edge of technology for the long term, we also offer flexible upgrade options that allow you to stay as current as possible.

Ideal for a wide range of 3D rendering applications our 3D workstations are well suited to virtual simulation and training environments, terrain and building modelling, and LiDAR data visualization.

Capabilities include:

• The latest Intel® Xeon®, AMD EPYC™ or AMD Ryzen™ Threadripper™ processor technology
• Up to four high-end graphics cards in one workstation for CUDA or OpenCL applications
• Up to 8 TB fast DDR-4 ECC memory
• High-performance RAID with up to 12 GB/s transfer rate (SAS 3.0 technology), high-speed SSD (Solid State Disks) up to 10 TB memory on request
• Optional ultra-fast 10Gb LAN for connection to file servers
• Server and cluster solutions available

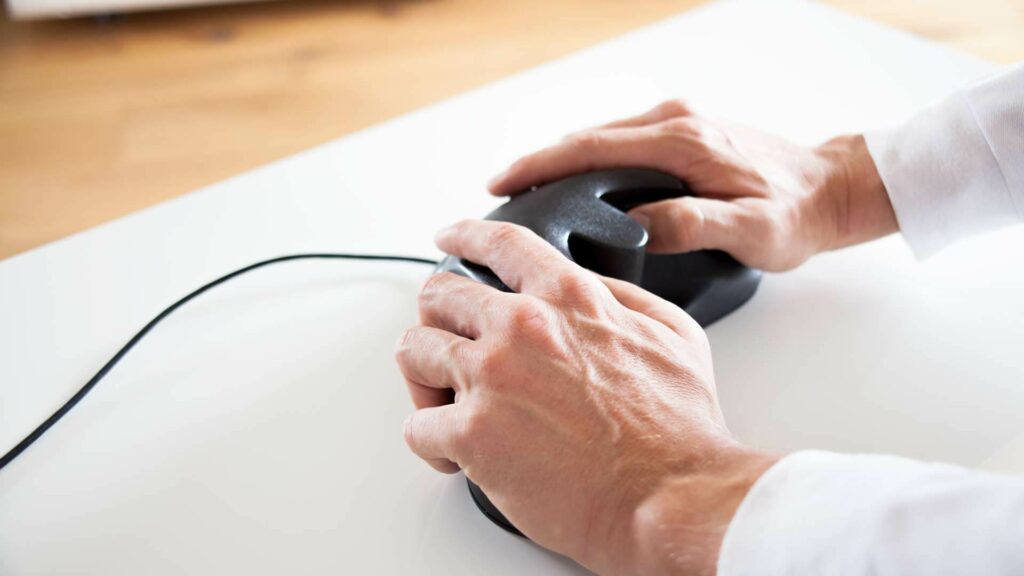

3D Mouse

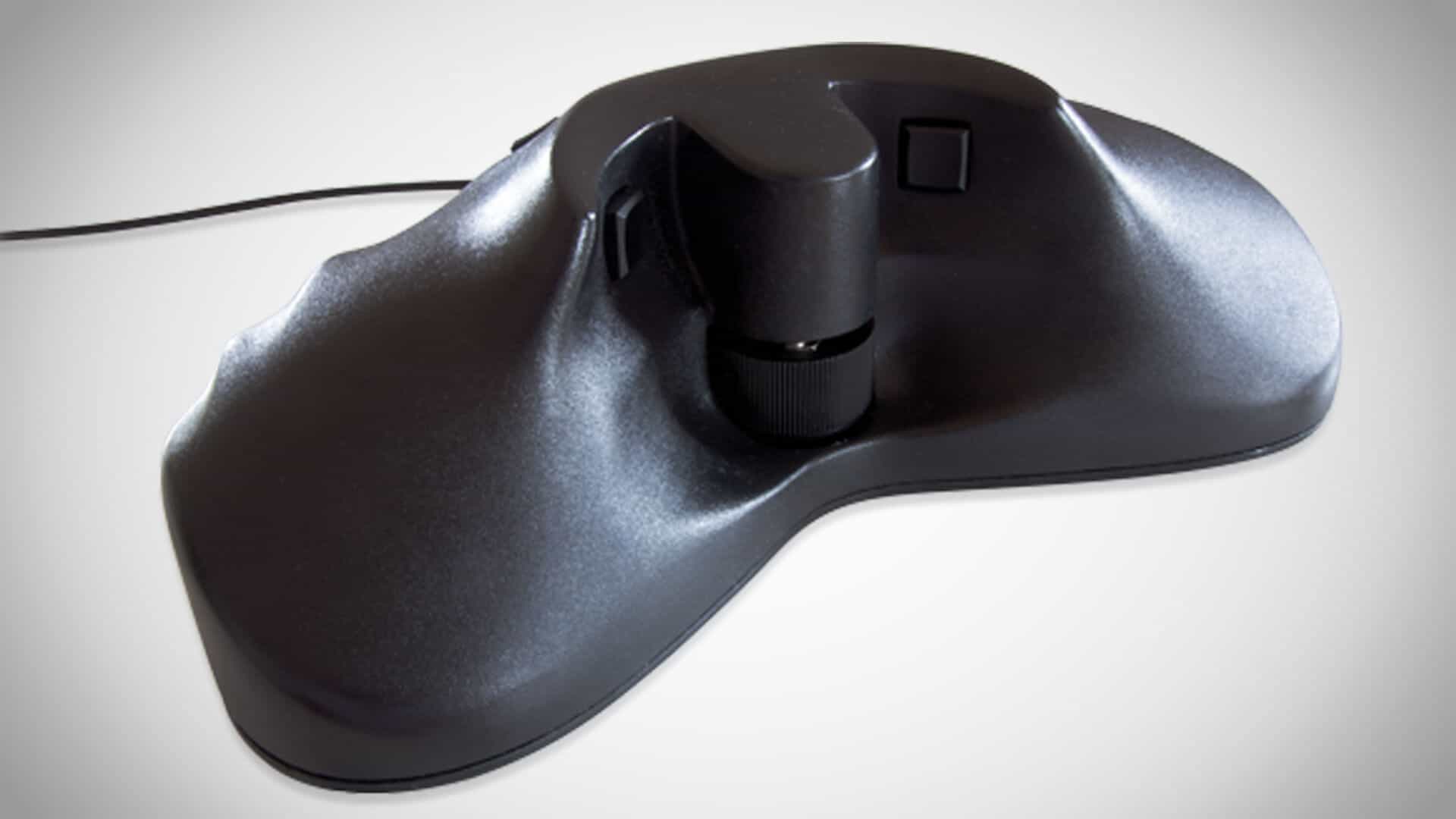

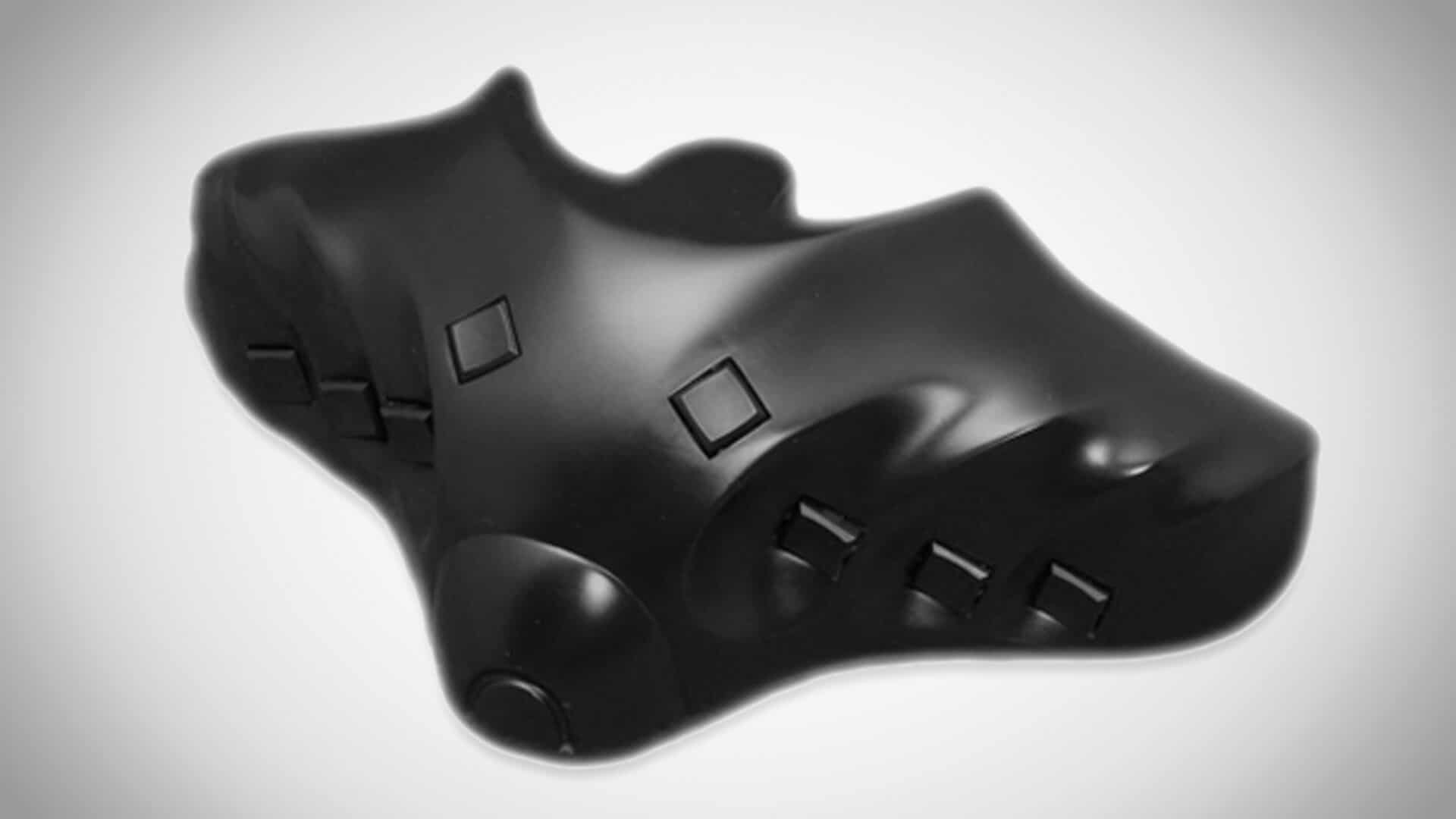

Suited to any application that requires precision capturing or editing of data from stereo imagery and point clouds, the 3D Stealth Mouse is an ergonomic, lightweight handheld controller. The Stealth provides unparalleled convenience and ease of use for photogrammetry, 3D modelling, LiDAR applications and more through its ten programmable buttons and 33 programmable functions.

All buttons are rated at 10 million cycles to maximize lifespan and the 3D Stealth Mouse is supported by all major photogrammetry software applications. State-of-the-art design delivers fast, high-precision tracking and planar positioning on all non-reflective surfaces, with a high-resolution wheel for accurate Z-pointing.

Graphics Cards

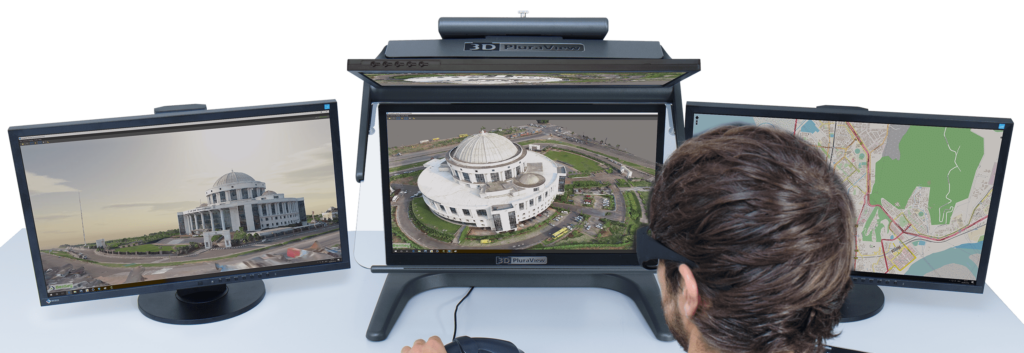

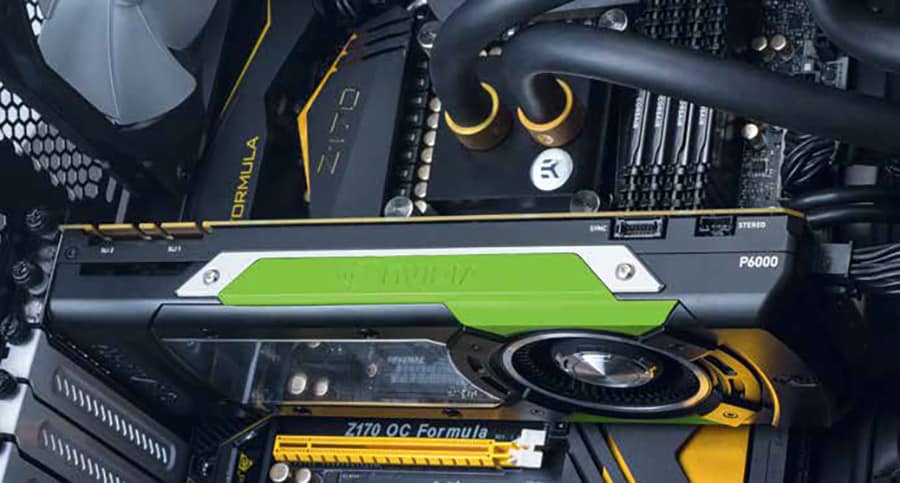

We provide a range of high-end graphics cards with multiple outputs for stereo-capable software applications, and are also highly experienced in configuring solutions to meet our customers' unique requirements. Featuring advanced Quad-Buffer technology, these cards enable a range of features for enhanced user-friendliness, flexibility and productivity, including:

• Arranging monoscopic application menus, documents or open web browser tabs along with stereoscopic content on the monitor at the same time
• Displaying multiple stereo windows at different sizes
• Allowing multiple stereoscopic applications to be active at the same time

Many graphics cards can also be stacked within a workstation, allowing you to take advantage of parallel GPU processing for massive datasets, and unlocking applications such as AI and neural network-based object recognition and feature extraction.
